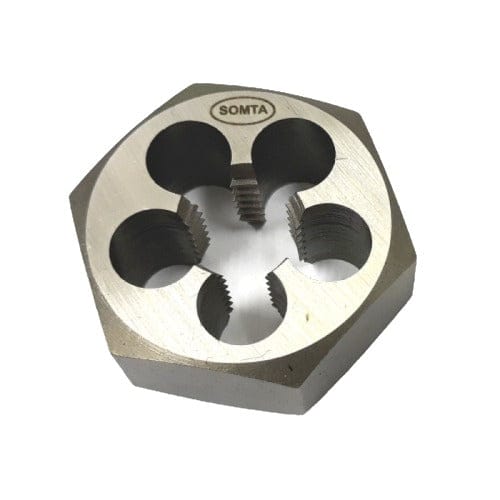

Somta Series 913 – Carbon Steel Die Nut (5/8" BSW)
The SOMTA 9131590 Carbon Steel Die Nut is made for repairing British Standard Whitworth (BSW) threads. Its robust carbon steel construction offers excellent wear resistance and long service life, ensuring reliable performance in restoring damaged or worn threads. The hexagonal profile is compatible with standard spanners or sockets or sockets.
Key Features & Benefits
- External Thread Repair – Perfect for chasing and cleaning BSW threads.
- Carbon Steel Construction – Strong and long-lasting.
- Hexagonal Profile – Compatible with standard spanners or sockets.
- Precision Ground Threads – Accurate and consistent repairs.
- Multiple Thread Standards – Range covers Metric, UNC, UNF, BSPF, BSF, and BSW.

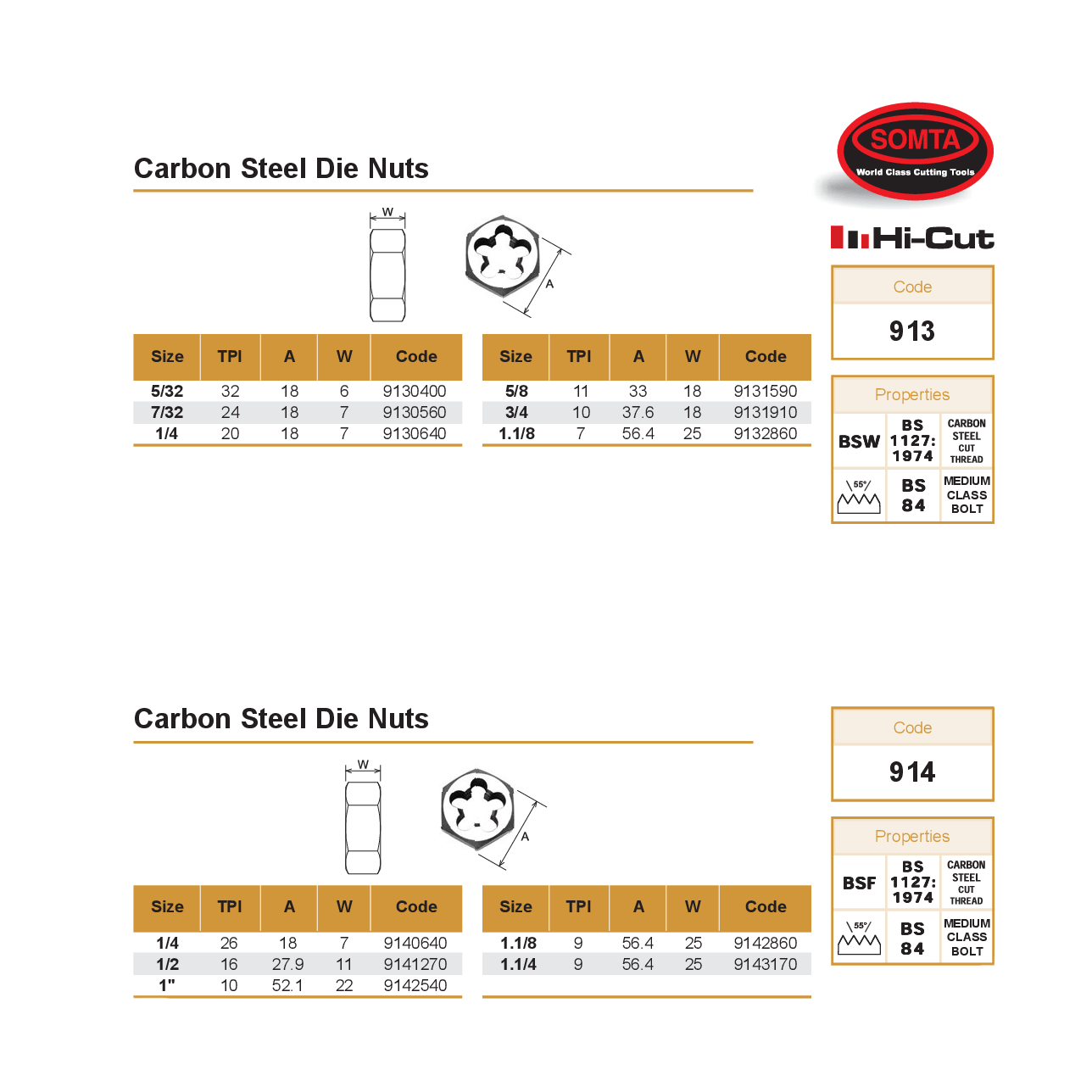

Technical Specifications
- Part No: 9131590
- Nominal Size: 5/8" BSW
- Thread Pitch (TPI): 11
- Thread Standard: BSW (British Standard Whitworth)
- Standard Compliance: BS 84
- Thread Form Flank Angle: 55°
- Bolt Class Fit: Medium-class bolt

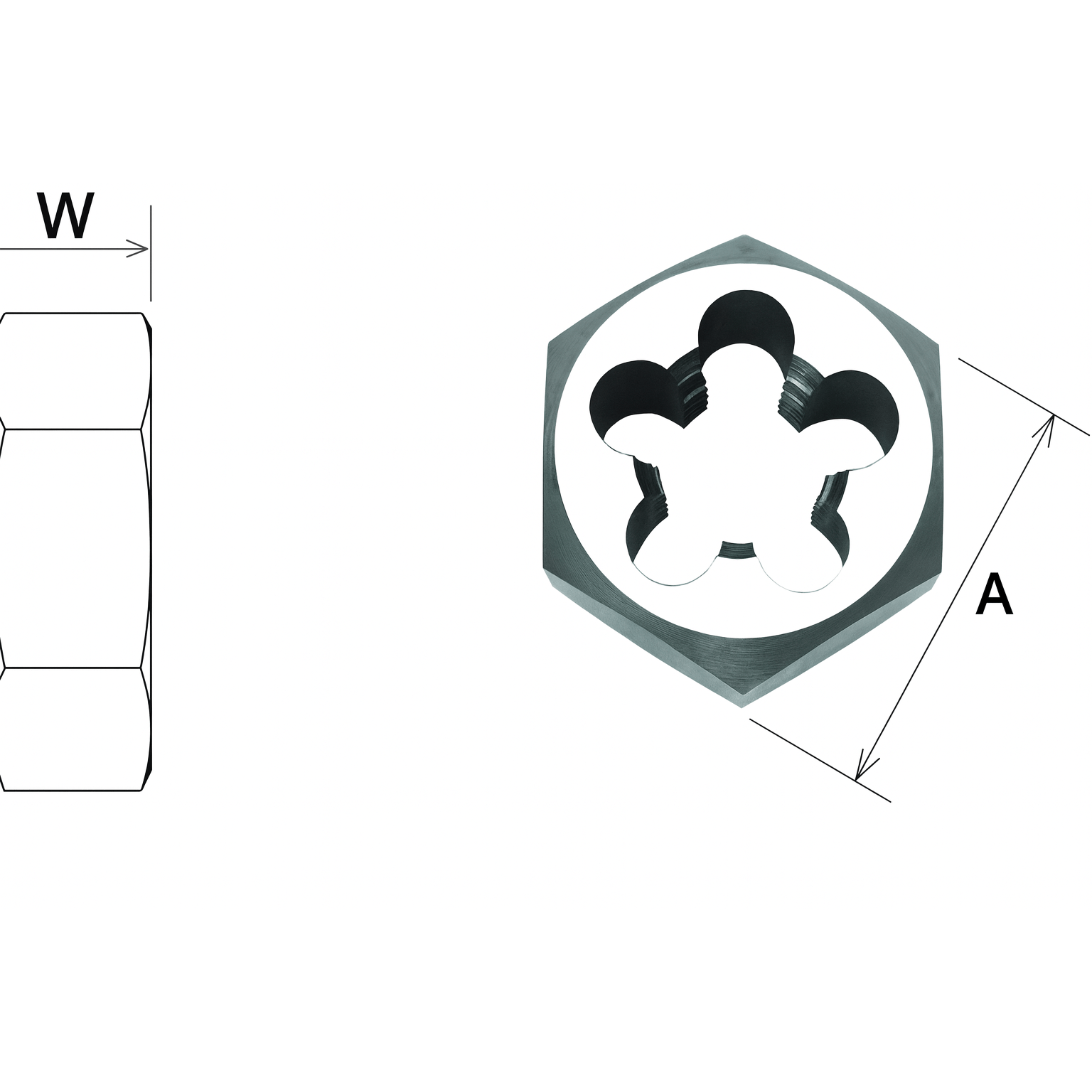

- Across Flats: 33 mm
- Thickness: 18 mm
- Material: Carbon Steel
- Tool Compatibility: Spanner, socket, or die holder
Why Choose SOMTA Die Nuts?
- Reliable Thread Restoration – Quickly restores BSW threads.
- Rugged Build – Performs in challenging environments.
- Precision Engineering – Ensures exact thread form.
- Wide Range of Sizes – Available for multiple thread types.
The SOMTA 9131590 Die Nut offers reliable and accurate BSW thread repair.
