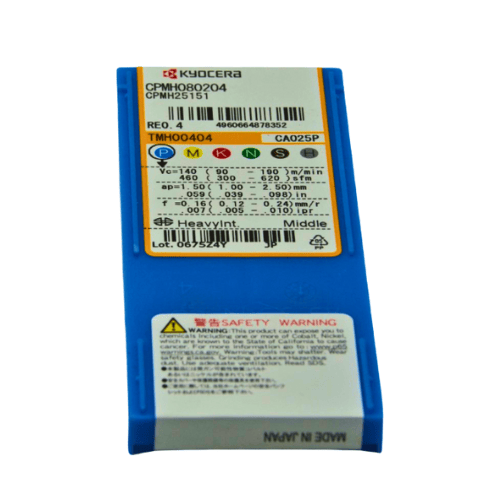

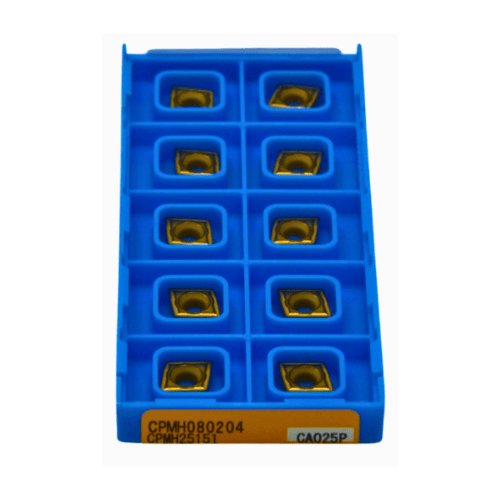

10 pc Kyocera CPMH080204 CA025P – Turning Insert (Finishing, Sharp Edge Type)
$87.12
Skip to product information
10 pc Kyocera CPMH080204 CA025P – Turning Insert (Finishing, Sharp Edge Type)
$87.12
Kyocera CPMH080204 CA025P – Turning Insert (10 pcs Finishing, Sharp Edge Type)
The Kyocera CPMH080204 CA025P is a precision-ground positive-type carbide turning insert designed for finishing applications in steels and stainless steels. It features a sharp-edged geometry that provides low cutting resistance and superior surface finish in high-precision turning. Manufactured using Kyocera’s advanced CA025P CVD-coated carbide grade, this insert offers excellent wear resistance, edge sharpness, and thermal stability, making it ideal for achieving tight tolerances in fine finishing operations.
Key Features & Benefits
- CA025P Grade: CVD-coated carbide optimized for finishing of steels with exceptional wear resistance and toughness balance.
- Sharp Cutting Edge: Provides precise chip formation and smooth cutting action for superior surface quality.
- Low Cutting Resistance: Ideal for light finishing and semi-finishing under stable conditions.
- Stable Edge Integrity: Maintains cutting performance during continuous machining at moderate speeds.
- High Dimensional Accuracy: Perfect for tight-tolerance turning in precision steel components.
Technical Specifications
- Designation / Order Code: CPMH080204 CA025P
- Insert Shape: 80° Rhombic (C Type)
- Insert Type: Positive Turning Insert
- Material: CVD-Coated Carbide
- Grade: CA025P – Finishing Grade
- Edge Type: Sharp Ground Edge for Precision Machining
- Inscribed Circle (IC): 7.94 mm
- Thickness (S): 2.38 mm
- Hole Diameter (D1): 3.5 mm
- Corner Radius (RE): 0.4 mm
- Relief Angle: 7°
- Cutting Depth (ap): 0.05 – 1.0 mm
- Feed Rate (f): 0.02 – 0.20 mm/rev
- Tolerance (Class G): ±0.025 mm (thickness) / ±0.13 mm (corner height)
- Pack Quantity: 10 pcs
About Kyocera CA025P:
Kyocera’s CA025P grade is a finely balanced CVD-coated carbide engineered for high-precision steel turning. It offers exceptional wear and oxidation resistance while maintaining edge sharpness, enabling stable finishing operations and excellent surface quality in high-speed, continuous cutting conditions.
