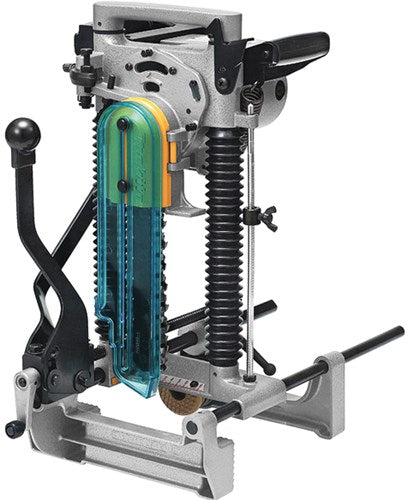

Makita 7104L 230v Chain Mortiser
User benefits
Ideal for mortise and tenon joints in heavy timber constructions, such as trusses, chalets, and carports.
For fast and precise milling of 155 mm deep mortises.
Integrated clamping device suitable for beams up to 308 mm.
Can mill 130 mm in length without moving the machine, thanks to the angled adjustable sword.
Easily movable due to its relatively light weight (17 kg).
Machine must be connected to a grounded outlet.
Technical data
Power consumption 1140 Watt
Cable length 5.0 m
Vibration ah no load 2.5 m/s²
Vibration (K) no load 1.5 m/s²
Sound pressure level (LpA) 3 dB(A)
Dimensions (LxWxH) 512x298x513 mm
Weight (EPTA) 17.3 kg
Sound pressure level (K) 90 dB(A)
Chain speed 5 m/sec
Machine voltage 230 V
Max. milling depth capacity 155 mm
Max. hole length (longitudinal direction) 130 mm
Workpiece width 80 - 308 mm
Standard delivery contents
Milling chain 16.5mm A-16570
Open-end wrench 13-17mm 781204-0
Chain oil 100ml 182229-1
Spout 242012-9
Documents Drawing and parts list
User manual
