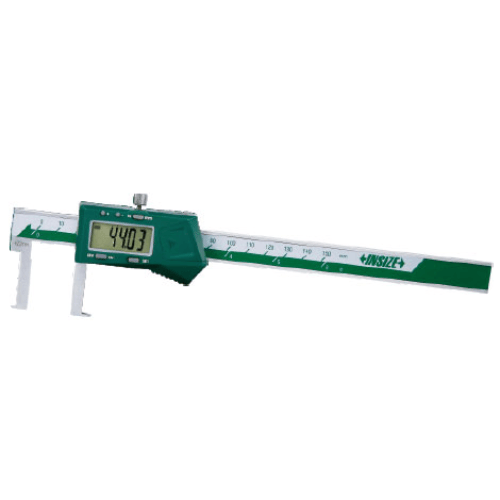

Insize Digital Inside Groove Caliper

The INSIZE Digital Inside Groove Caliper 1120-300A is designed for accurate measurement of internal grooves, slots, and recesses. Built with stainless steel construction and a digital display, it offers durability, precision, and ease of use in machining, tooling, and inspection environments.

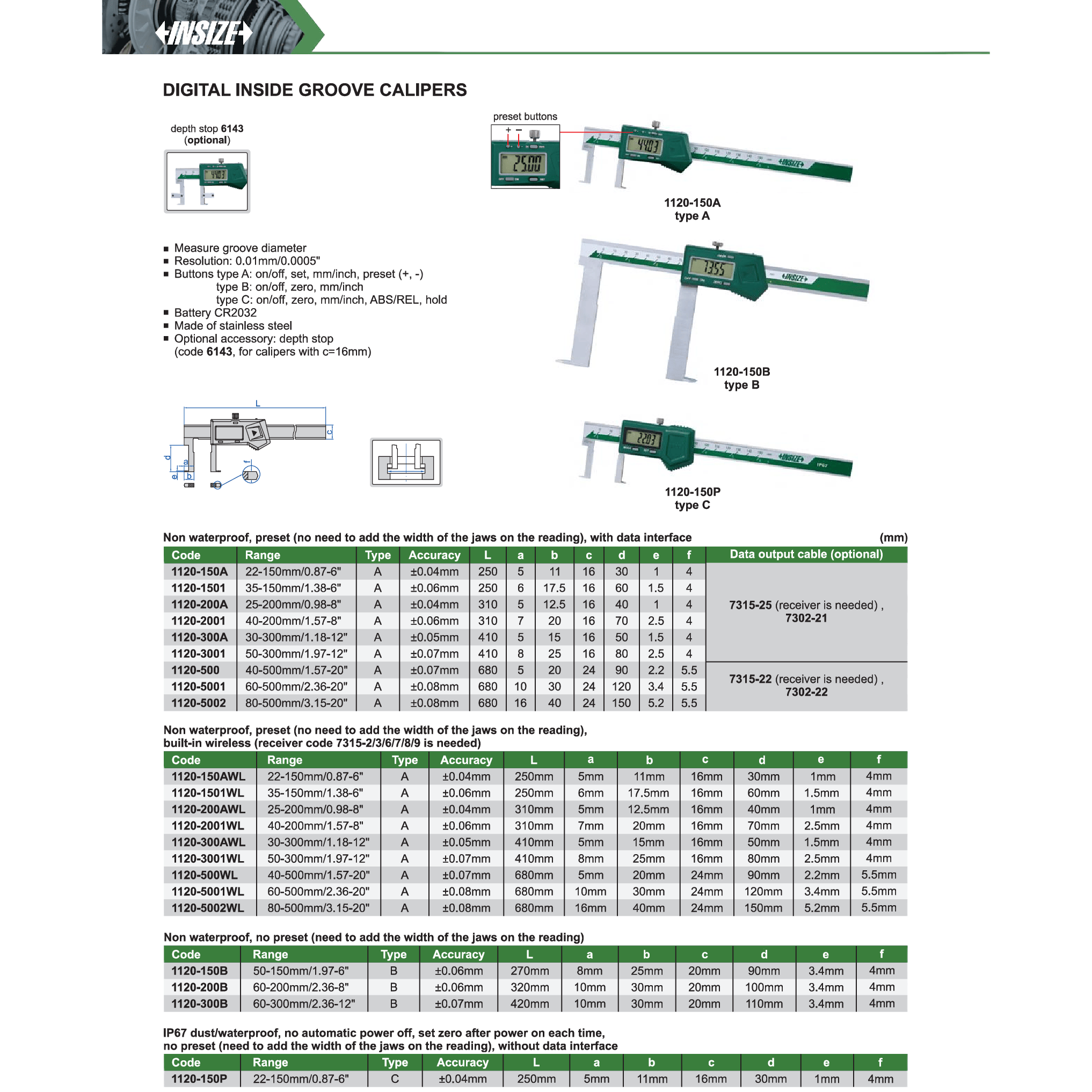

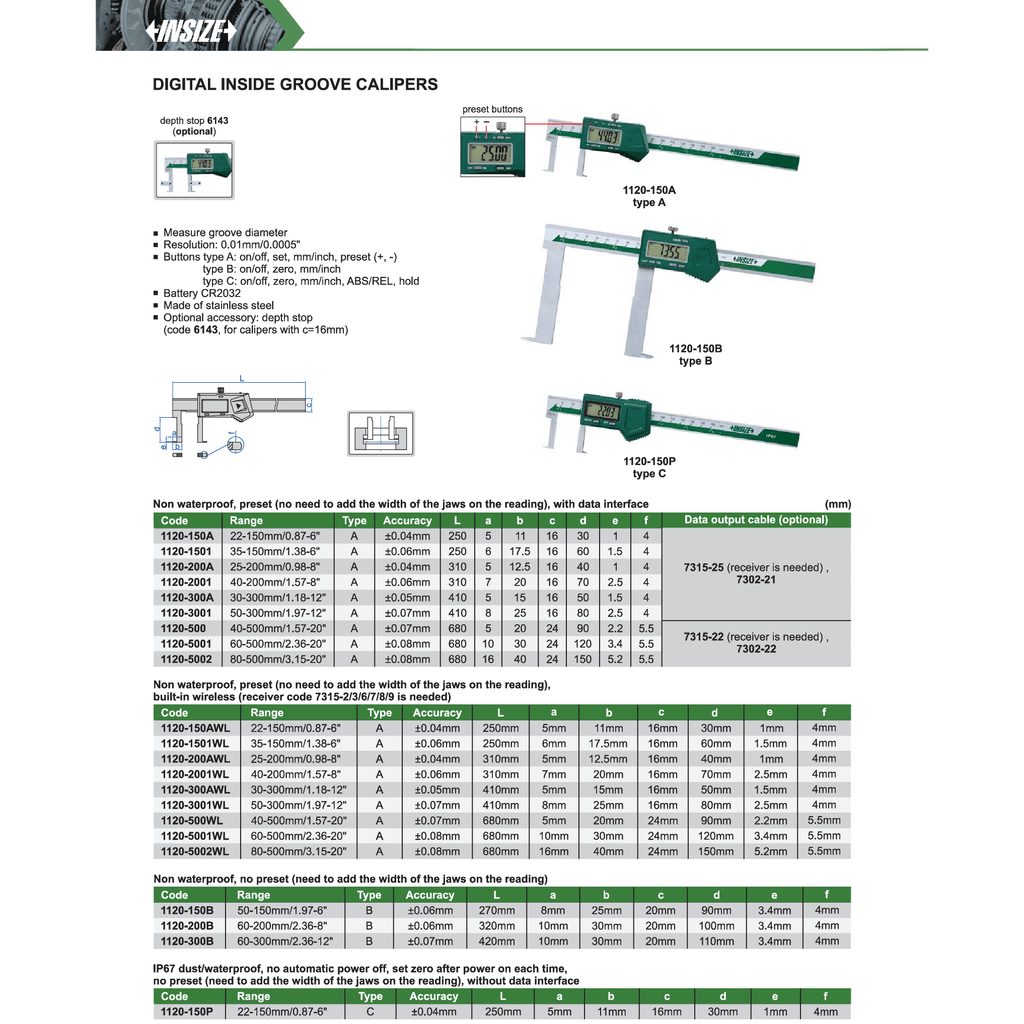

Specifications :

• Part No: 1120-300A
• Measuring Range: 30–300 mm / 1.18–12″
• Resolution: 0.01 mm / 0.0005″
• Accuracy: ±0.05 mm
• Type: A (with preset function, mm/inch conversion, data output)
• Material: Stainless steel
• Battery: CR2032 (included)
• Display Features: On/off, set, mm/inch, preset (+/−)
• Data Output: Yes (optional cable: 7302-22; receiver: 7315-22)
• Jaw Dimensions: a = 5 mm, b = 15 mm, c = 16 mm, d = 50 mm, e = 1.5 mm, f = 4 mm
• Total Length (L): 410 mm
• Included Accessories: CR2032 battery, protective case
• Optional Accessories: Data output cable, wireless receiver

The INSIZE 1120-300A provides reliable performance and precision for internal groove measurements, making it an excellent choice for workshops and quality control applications.
