Hepyc 35mm HSS Morse Taper Shank Drill MT4 DIN 345
$401.51

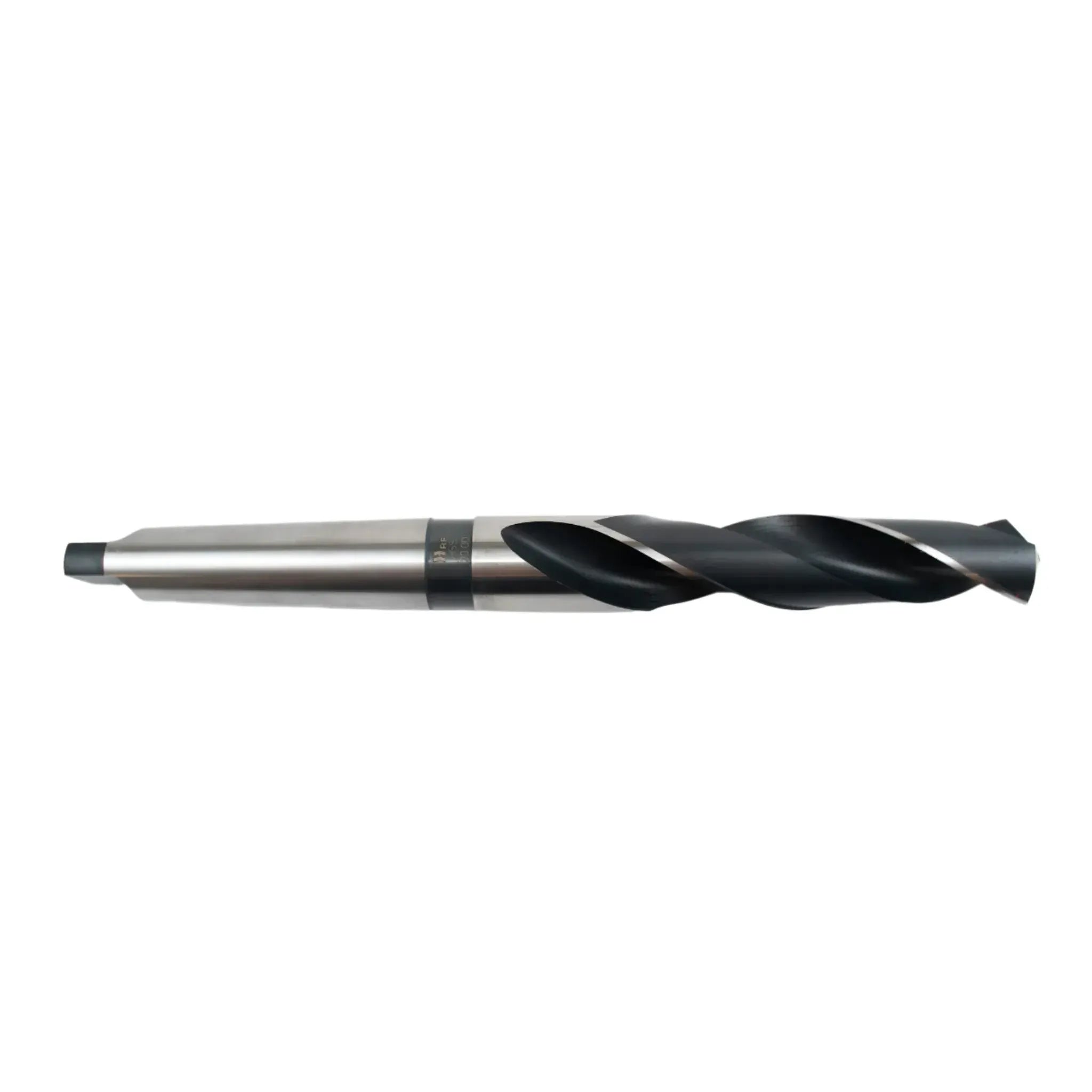

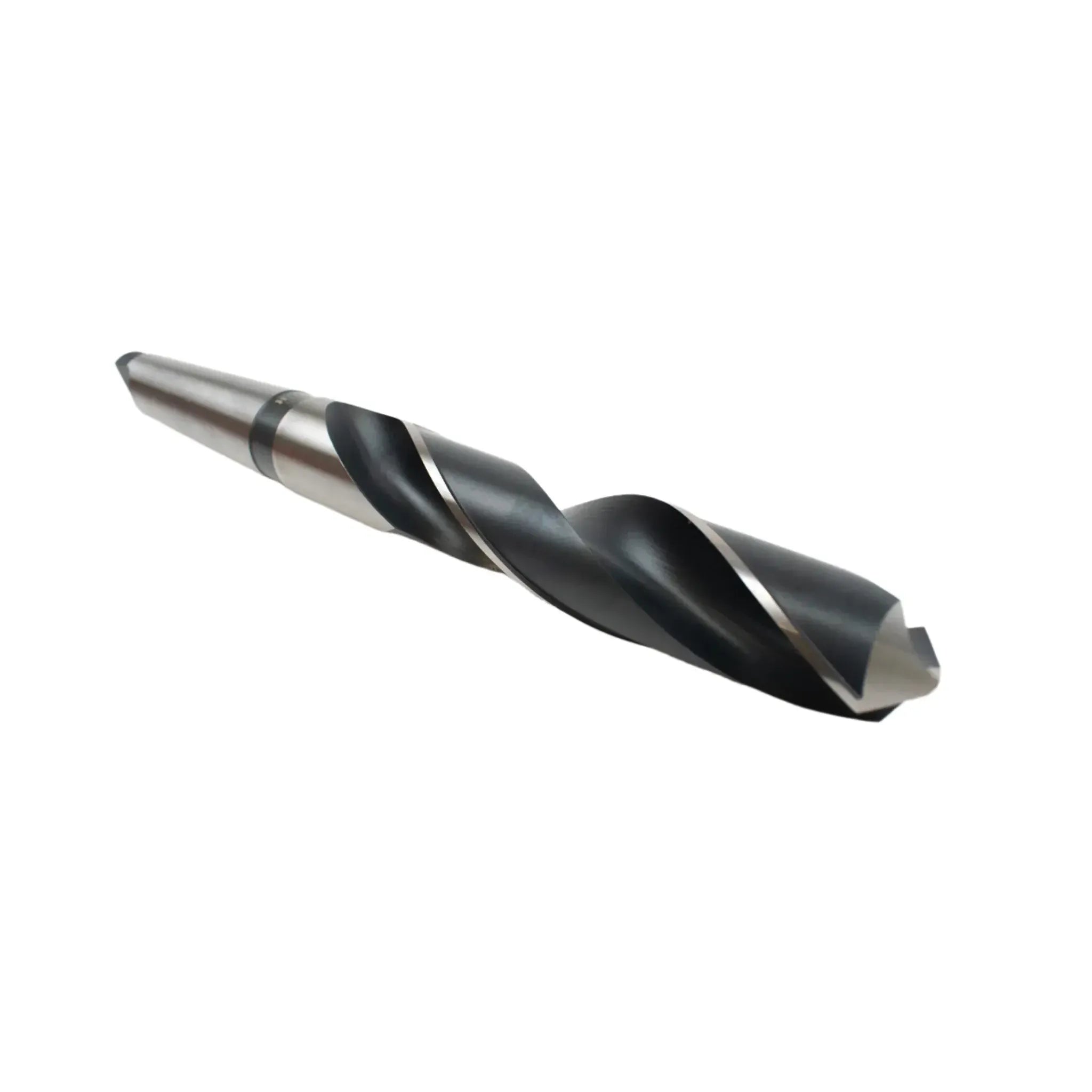

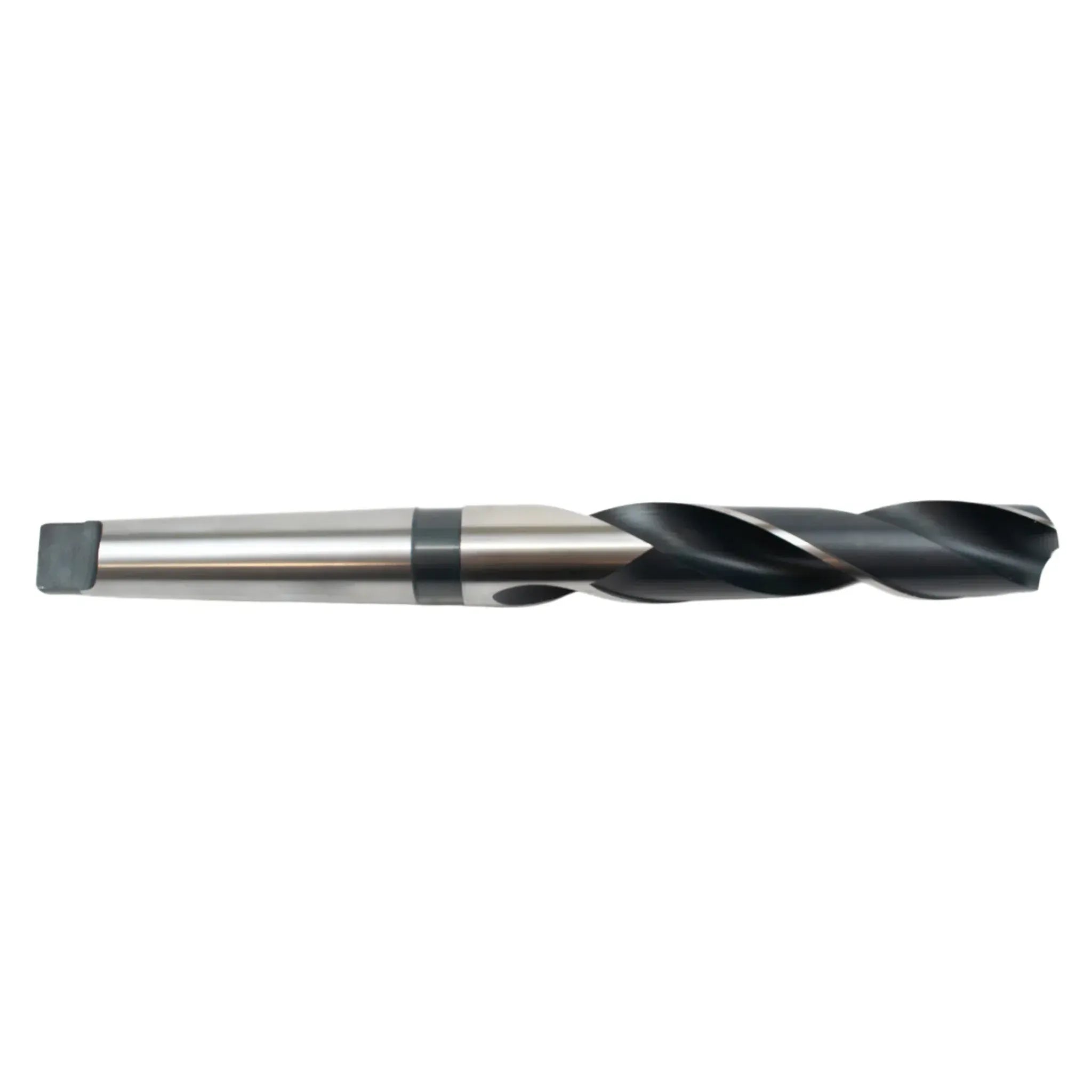

Hepyc Drill HSS DIN345N 35.0mm – Taper Shank, 118° Point
High-performance HSS taper shank drill manufactured to DIN345N standards for precision drilling in steel, cast iron, and non-ferrous materials. The short series design provides maximum rigidity and stability, making it ideal for heavy-duty drilling operations where accuracy, strength, and reliability are critical.
Manufactured from premium High Speed Steel (HSS), this drill offers excellent wear resistance, toughness, and heat resistance for long service life under demanding machining conditions. The precision-ground 118° point ensures accurate centering and efficient cutting action, while the 30° helix angle promotes smooth chip evacuation and improved drilling performance. The Morse taper shank provides secure spindle engagement and superior torque transmission in industrial drilling machines and lathes.
Specifications:
- Diameter: 35.0mm
- Overall Length (L): 339mm
- Flute Length (l): 190mm
- Morse Taper Shank: MT4 (CM4)
- Standard: DIN345N
- Material: High Speed Steel (HSS)
- Point Angle: 118°
- Helix Angle: 30°
- Series: Short Series
- SKU: 11210003500
Features:
- Premium High Speed Steel construction
- Manufactured to DIN345N standard

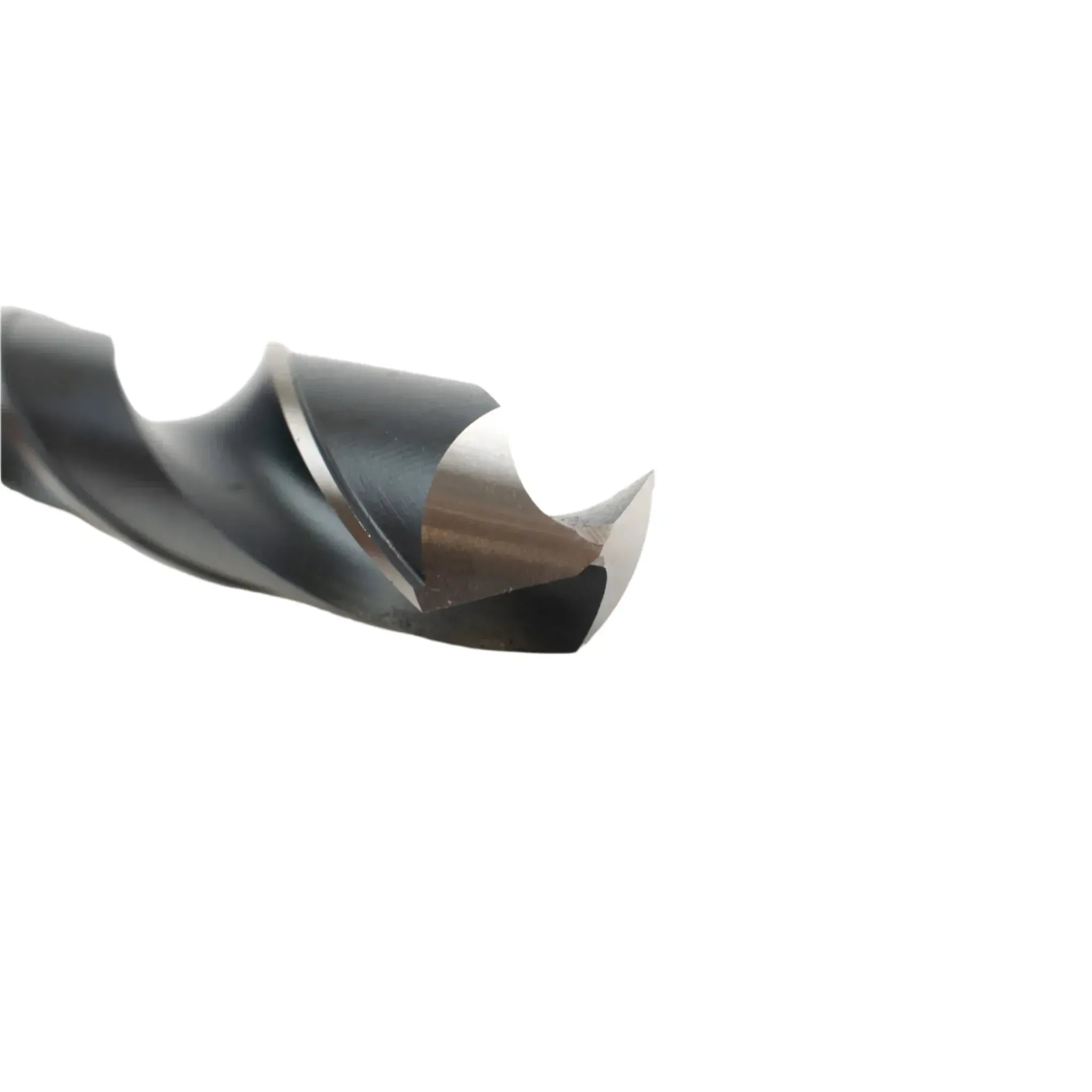

- Precision-ground 118° drill point
- 30° helix for efficient chip evacuation
- Short series design for enhanced rigidity
- Morse taper shank for secure machine mounting
- Excellent wear resistance and extended tool life
- Suitable for steels up to 800 N/mm² tensile strength
- Suitable for steel, cast iron, aluminium, copper, and plastics
Hepyc drilling tools are engineered for professional machining applications, delivering consistent drilling accuracy, dependable performance, and long-lasting durability in workshop and production environments.
