Craftsman 20V to Dyson V6 Battery Adapter

Use your Craftsman 20V batteries on Dyson V6 cordless tools, without buying into a second battery platform. Built with a durable injection-molded ABS housing and pure copper contacts for steady current delivery. Your existing batteries do more work, and there is no second ecosystem to buy into. It also carries battery protection electronics (BMS) inside.

Specifications

• SKU PTA-CRA20-DYSV6
• Fits this battery Craftsman 20V (Lithium-Ion)
• Battery voltage 20V
• Runs these tools Dyson V6 (Lithium-Ion)
• Housing ABS (Injected)
• Terminals Copper
• Current rating 55A continuous (100A peak at 18VDC for up to 2 seconds)1188 Watt continuous at 21.6V nominal
• Weight 148 g (5.2 oz / 0.33 lb)
• Colour Grey
• Operating humidity 5–95% RH
• Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
• USB port No
• Built-in BMS protection Yes
• What's in the box Battery adapter
• Warranty 12 months after the date of delivery
• Revision Revision 01 (released on June 4, 2023)

Why choose this adapter

• A Battery Management System inside the adapter cuts power before the battery is drained too far — protection your battery may not have on its own.
• Injection-moulded ABS, not 3D printed — no layer lines to split under load.
• Solid copper terminals, so less of the current is lost as heat.
• Rated for 55A continuous with 100A peak at 18VDC for up to 2 seconds, so a high-draw tool is not held back by the adapter.
• Covered by a 12-month warranty from the day it arrives.

Craftsman 20V and Dyson V6 compatibility

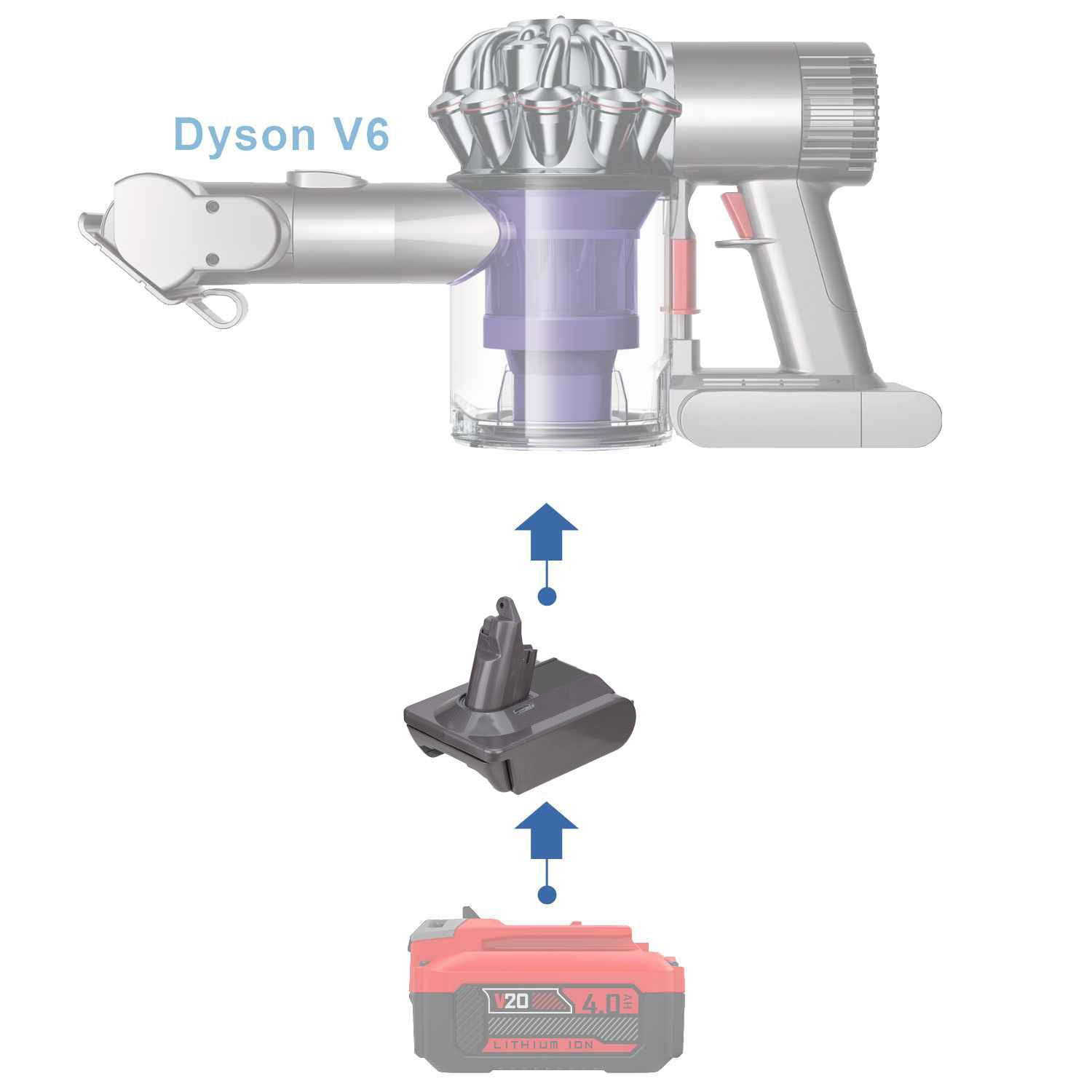

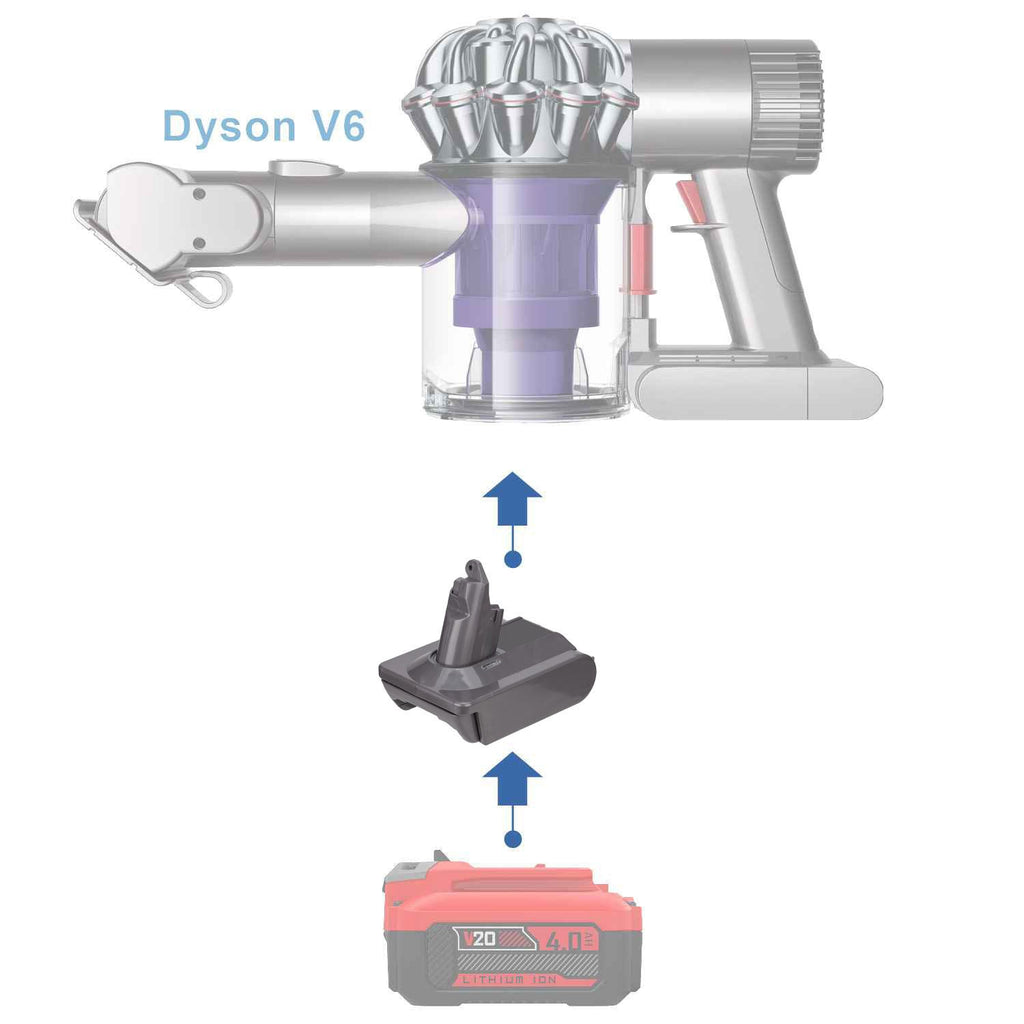

It works in one direction only: Craftsman batteries powering Dyson tools. For the opposite pairing, see adapters that run on Dyson V6 batteries.

Compatibility can vary with the exact battery and tool model. Before ordering, confirm that your battery belongs to the Craftsman 20V platform and that your tool takes Dyson V6 batteries.

Important charging and safety information

This adapter is for powering cordless tools and nothing else. It cannot charge Craftsman or Dyson batteries and must never be connected to a charger of any kind. Always take the battery out of the adapter before charging, and charge it on the original charger made for your Craftsman 20V battery.

Before you buy

Use a battery of at least 3 Ah — 4 Ah or more is better. A higher-voltage tool draws harder on the battery, and a small one can sag until its own protection cuts out before it is empty.
