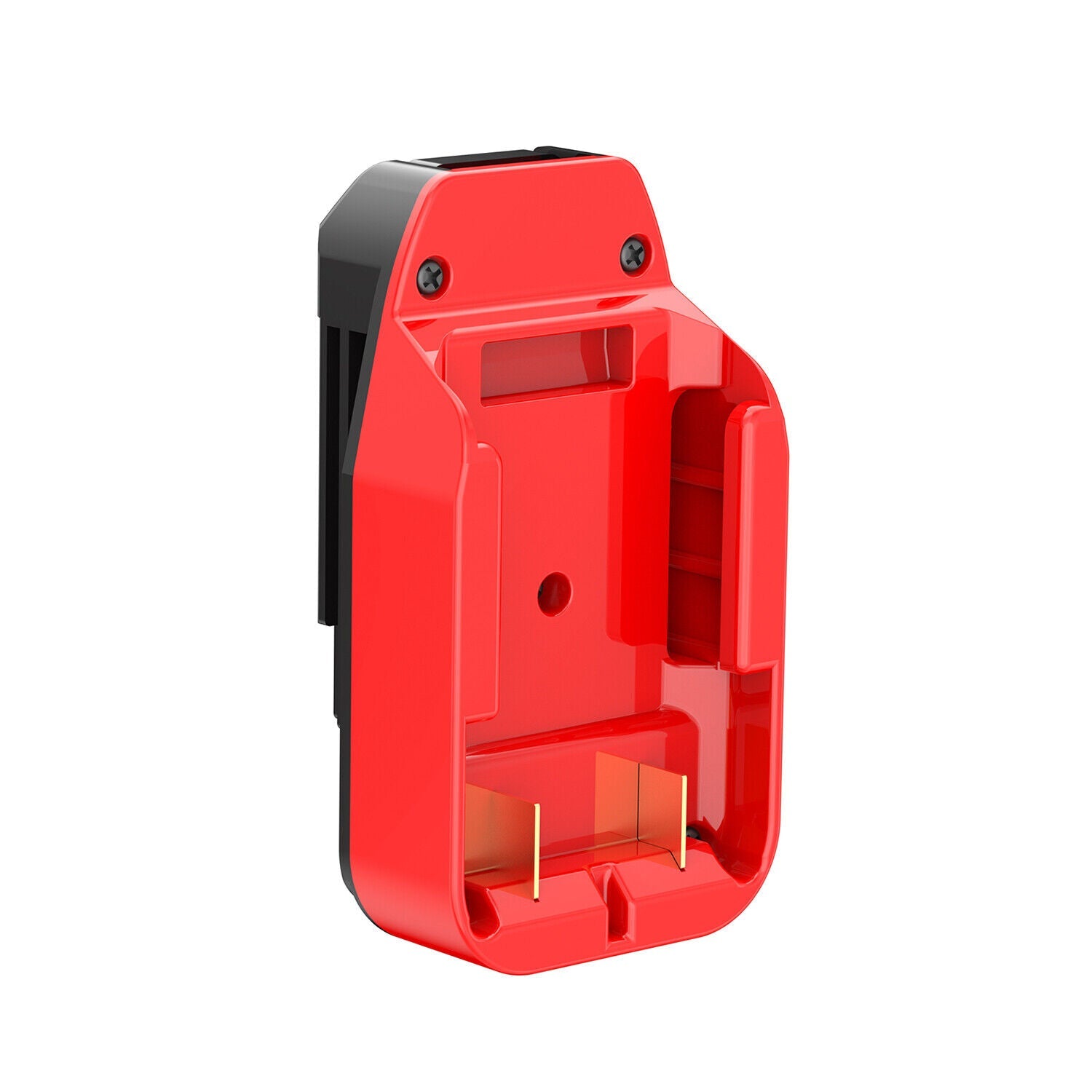

Craftsman 20V to Craftsman Bolt-On 20V Battery Adapter

Use your Craftsman 20V batteries on Craftsman 20V Bolt-On cordless tools, without buying into a second battery platform. Power passes straight through: Craftsman 20V and Craftsman 20V Bolt-On share the same 20V rating. Constructed from durable molded ABS with pure copper contacts, for a secure fit and dependable current transfer. Fewer battery systems in the workshop, on the bench or in the van, and no extra chargers to find room for.

Specifications

• SKU PTA-CRA20-CRB20
• Fits this battery Craftsman 20V (Lithium-Ion)
• Battery voltage 20V
• Runs these tools Craftsman 20V Bolt-On (Lithium-Ion)
• Tool voltage 20V
• Housing ABS (Injected)
• Terminals Copper
• Current rating 40A continuous (80A peak at 18VDC for up to 2 seconds)720 Watt continuous at 18V nominal
• Internal wiring 5 mm²
• Weight 139 g (4.9 oz / 0.31 lb)
• Colour Black, Red
• Operating humidity 5–95% RH
• Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
• USB port No
• What's in the box Battery adapter
• Warranty 12 months after the date of delivery
• Revision Revision 01 (released on September 11, 2023)

Why choose this adapter

• Your Craftsman 20V battery and Craftsman 20V Bolt-On tools run at the same voltage, so the adapter changes the fitting rather than converting anything.
• Injection-moulded ABS, not 3D printed — no layer lines to split under load.
• Solid copper terminals, so less of the current is lost as heat.
• 5 mm² internal wiring, rated for 40A continuous with 80A peak at 18VDC for up to 2 seconds, so a high-draw tool is not held back by the adapter.
• Covered by a 12-month warranty from the day it arrives.

Craftsman 20V and Craftsman 20V Bolt-On compatibility

It works in one direction only: Craftsman batteries powering Craftsman tools. For the opposite pairing, see adapters that run on Craftsman 20V Bolt-On batteries.

Compatibility can vary with the exact battery and tool model. Before ordering, confirm that your battery belongs to the Craftsman 20V platform and that your tool takes Craftsman 20V Bolt-On batteries.

Important charging and safety information

This adapter is for powering cordless tools and nothing else. It cannot charge Craftsman or Craftsman batteries and must never be connected to a charger of any kind. Always take the battery out of the adapter before charging, and charge it on the original charger made for your Craftsman 20V battery.
