Somta Series 386 – 20mm x 60° HSS Dovetail Cutter
$179.52
Zu Produktinformationen springen

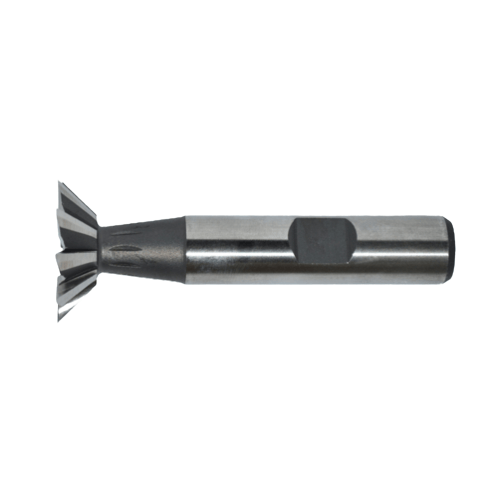

Somta Series 386 – 20mm x 60° HSS Dovetail Cutter
$179.52
Somta Series 386 – 20mm x 60° HSS Dovetail Cutter, 8 Teeth, DIN 1833 Form C
The Somta Series 386 20mm Dovetail Cutter is manufactured from premium HSS Co5 (High-Speed Steel with Cobalt) and is engineered for machining precision dovetail slides used in machine tool tables, jigs, fixtures, and specialised tooling applications. Manufactured to DIN 1833 Form C standards, this cutter provides exceptional accuracy, rigidity, and extended tool life for demanding machining operations.
Featuring a 60° included angle and 8 cutting teeth, this dovetail cutter delivers smooth cutting action, excellent chip control, and superior surface finishes. Its precision ground geometry ensures accurate dovetail profiles and dependable performance across a wide range of engineering materials.
Key Features & Benefits
- Manufactured from premium HSS Co5 cobalt high-speed steel
- Designed for machining dovetail slides and guideways
- Manufactured to DIN 1833 Form C standard
- 60° included angle for precision dovetail profiles
- 8 cutting teeth for smooth and efficient cutting
- Precision ground for excellent dimensional accuracy
- Cylindrical shank with h6 tolerance for secure holding
- High wear resistance and extended tool life
- Suitable for jigs, fixtures, machine tables, and tooling applications
- Ideal for professional engineering and production machining
Technical Specifications
- Brand: Somta
- Series: 386
- Part Number: 3862001
- Cutter Diameter (d): 20mm
- Shank Diameter (d1): 12mm
- Included Angle: 60°
- Cutting Width (W): 8mm
- Overall Length (l1): 63mm
- Number of Teeth (Z): 8
- Material: HSS Co5
- Standard: DIN 1833 Form C
- Shank Tolerance: h6
- Application: Machining dovetail slides, jigs, fixtures, and machine tool tables
Somta dovetail cutters are trusted by machinists and toolmakers worldwide for their precision manufacturing and dependable cutting performance. The Series 386 20mm x 60° Dovetail Cutter delivers accurate profile generation and long service life for demanding milling applications.
