Somta Series 348 – 5.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 5.0 mm HSS-Co8e Slot Drill (2 Flute) | 3480500

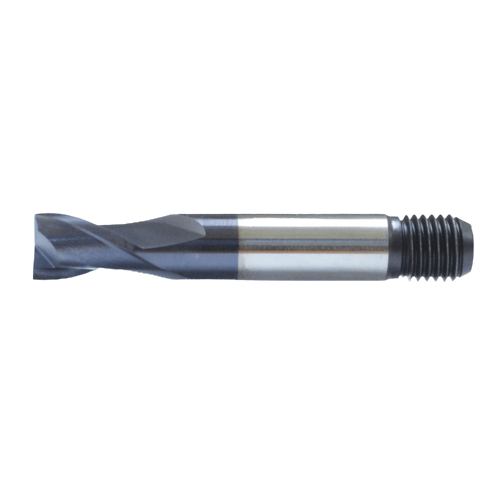

The SOMTA 3480500 is a precision 5.0 mm 2-flute slot drill designed for general-purpose machining. Constructed from HSS-Co8e (8% cobalt high-speed steel), it provides excellent wear resistance and edge stability during high-speed operations. Its centre-cutting design allows for smooth plunging and slotting in a variety of materials including steels, stainless steel, and aluminium.

Key Features & Benefits

• HSS-Co8e Material – Enhanced cobalt alloy offers excellent thermal stability and durability.
• 2-Flute Geometry – Optimized for efficient chip clearance and low cutting resistance.
• Centre-Cutting Design – Suitable for plunge and pocket milling without pilot drilling.
• Optional TiAlN Coating – Extends tool life in dry and high-speed applications.
• DIN 327 Standard – Guarantees consistent geometry and manufacturing precision.

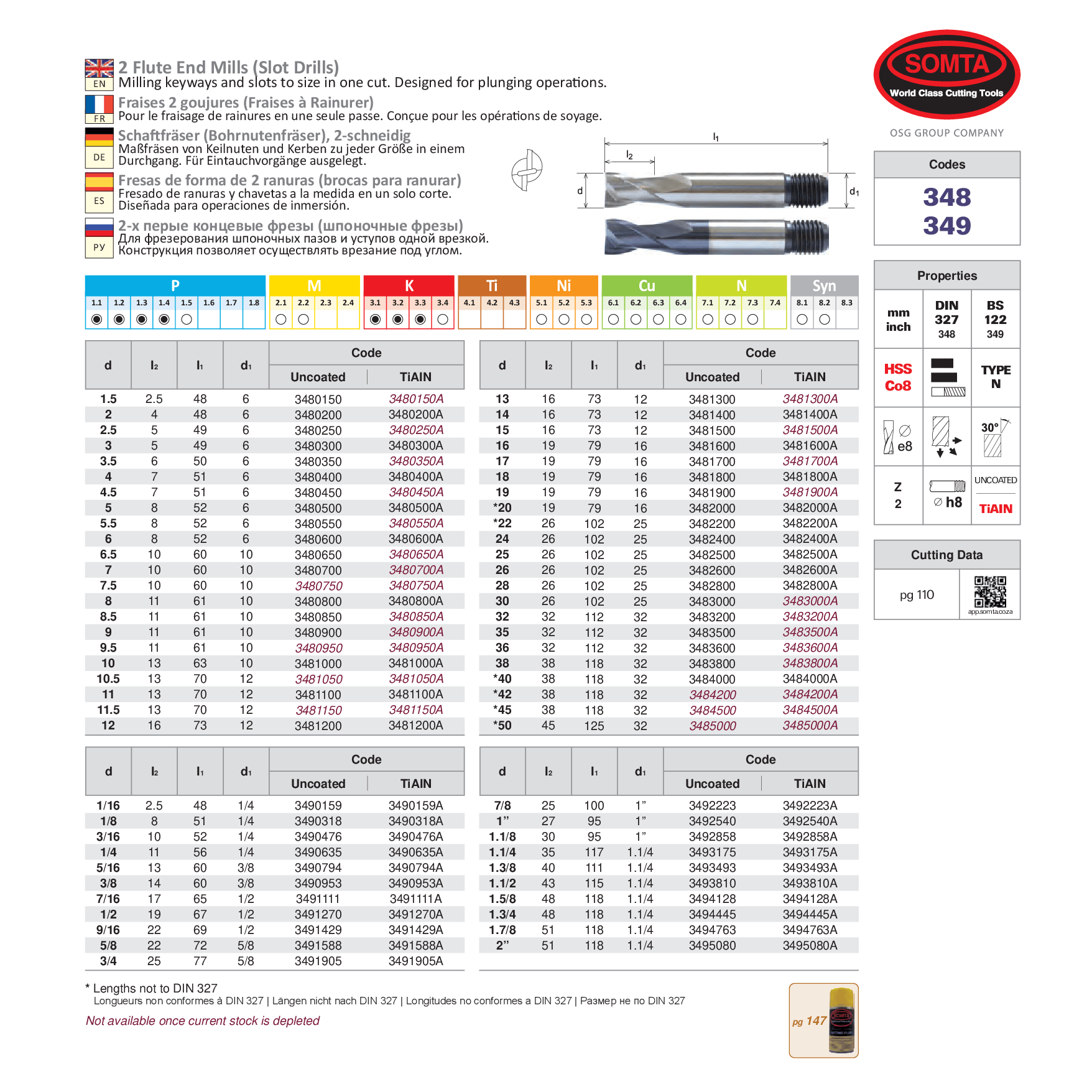

Technical Specifications

• Part No: 3480500
• Tool Type: 2-Flute Slot Drill
• Cutting Diameter (d): 5.0 mm
• Flute Length (l₂): 8 mm
• Overall Length (l₁): 52 mm
• Number of Flutes: 2
• Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
• Coating: Uncoated / TiAlN option
• Helix Angle: 30°
• Standard: DIN 327
• Applications: Keyway, slot, and pocket milling in ferrous and non-ferrous materials.

Why Choose SOMTA Cutting Tools?

• Precision Manufacturing – Produces clean and accurate slots with superior surface finish.
• Long Tool Life – Retains cutting sharpness under tough machining conditions.
• Versatile Application – Ideal for CNC machining and toolroom use.
• Trusted SOMTA Quality – Built to meet professional industrial standards.

The SOMTA 3480500 delivers reliable performance and accuracy in slot milling and plunge cutting applications.
