Somta Series 245 – HSS Extra-Length Morse Taper Drill 38mm x 530mm (3MT)

HSS Extra-Length Morse Taper Drill 38mm x 530mm (3MT) – Somta Series 245

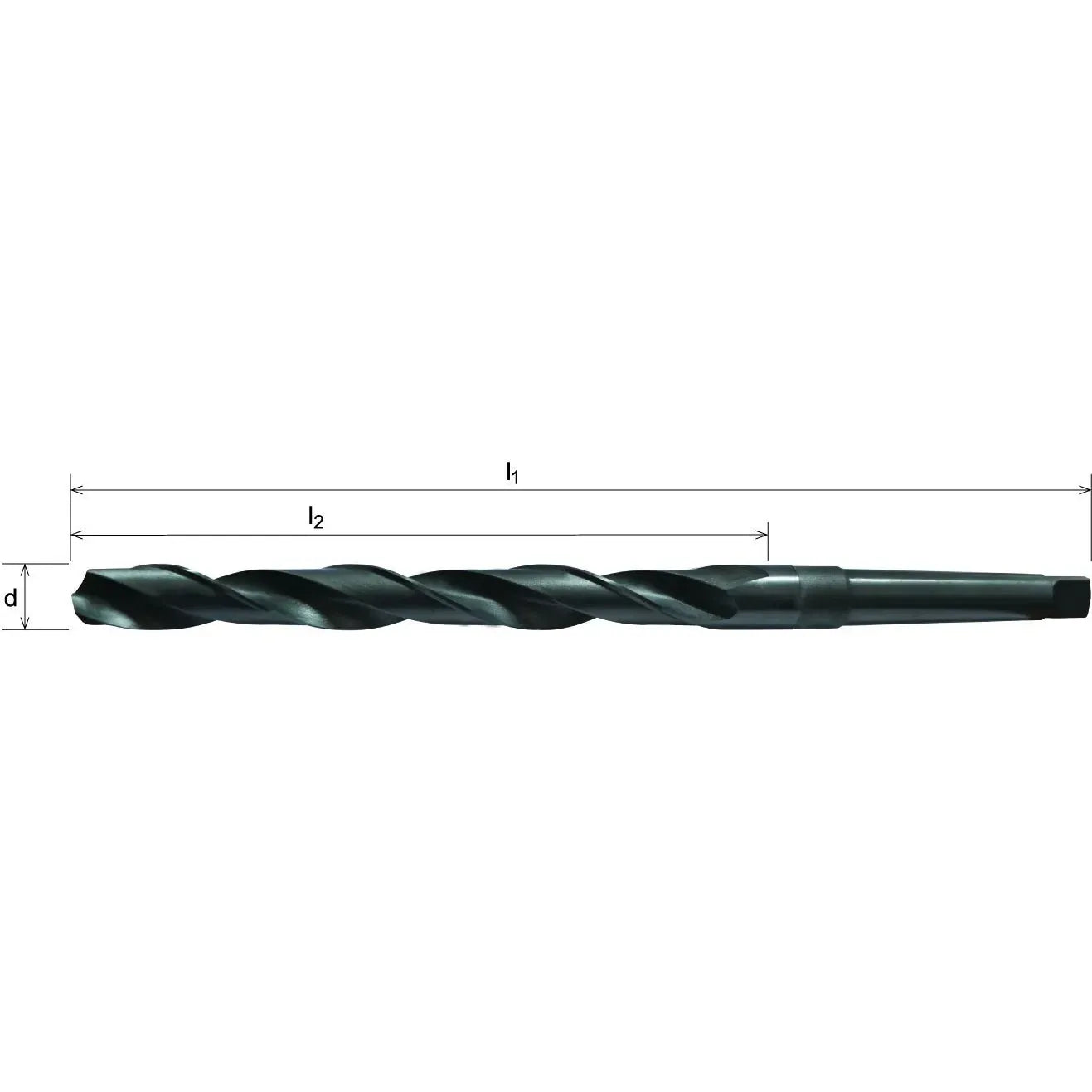

The SOMTA 2453800 – 38mm HSS Extra-Length Morse Taper Drill is a heavy-duty deep-hole drilling solution for industrial and structural machining operations. With an extended overall length of 530mm and a Morse Taper No. 3 (3MT) shank, this drill is built for exceptional reach, torque transfer, and rigidity. Constructed from high-speed steel (HSS), it withstands intense thermal and mechanical loads while delivering precise, burr-free holes in ferrous and non-ferrous materials.

Key Features Benefits

• Extra-Length Build – 530mm overall length allows deep and extended-reach holemaking.
• Large Cutting Diameter (38mm) – Perfect for large boreholes in fabrication, construction, and energy sectors.
• Morse Taper No. 3 Shank – Provides secure seating and vibration-free torque transmission.
• High-Speed Steel (HSS) – Delivers strength, heat resistance, and reliable performance under load.
• 118° Standard Point Angle – Offers accurate centering and reduced walking for large diameters.
• Right-Hand Spiral Flutes – Optimized for chip evacuation in deep drilling operations.
• Bright or Oxide Finish – Improves lubricity and cutting efficiency.

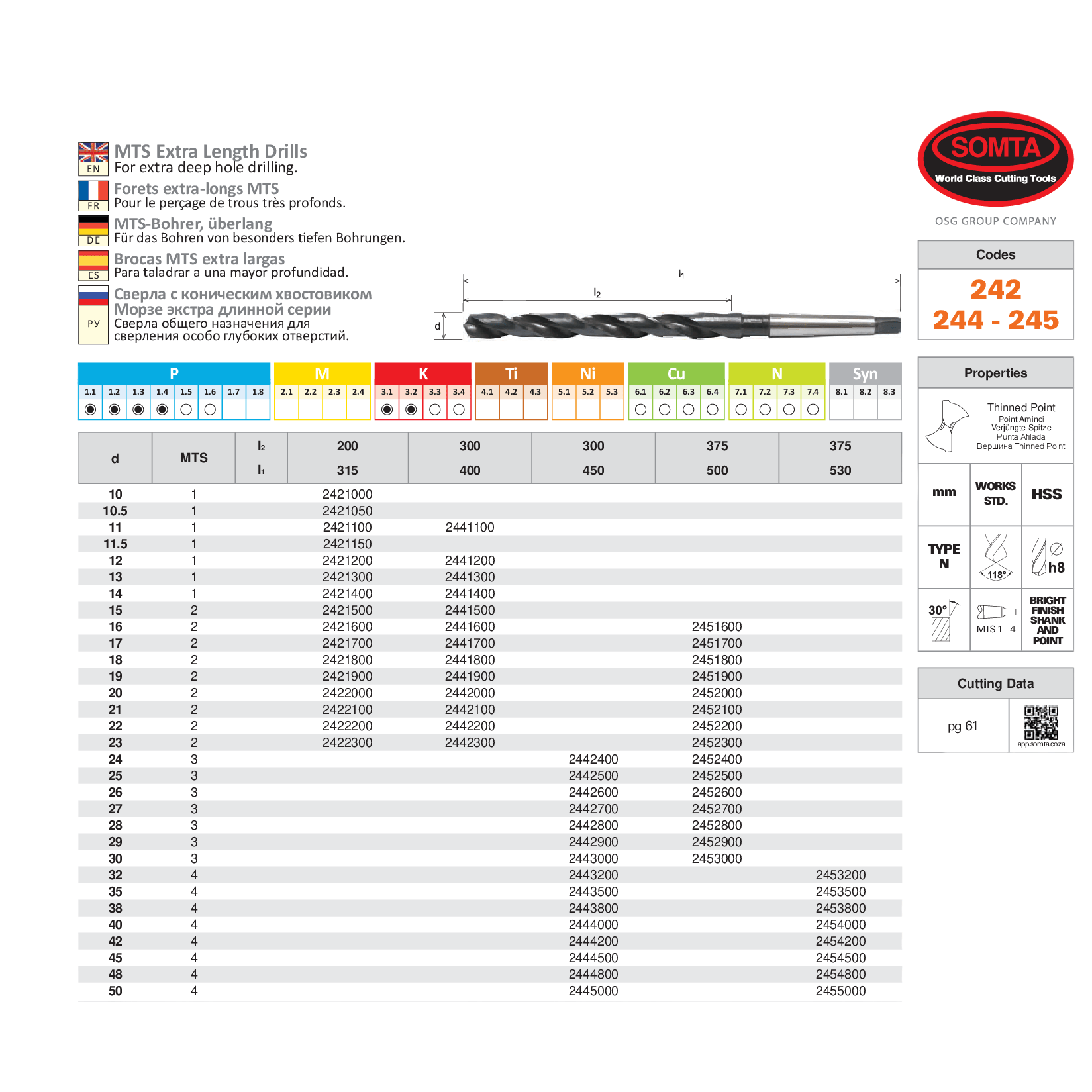

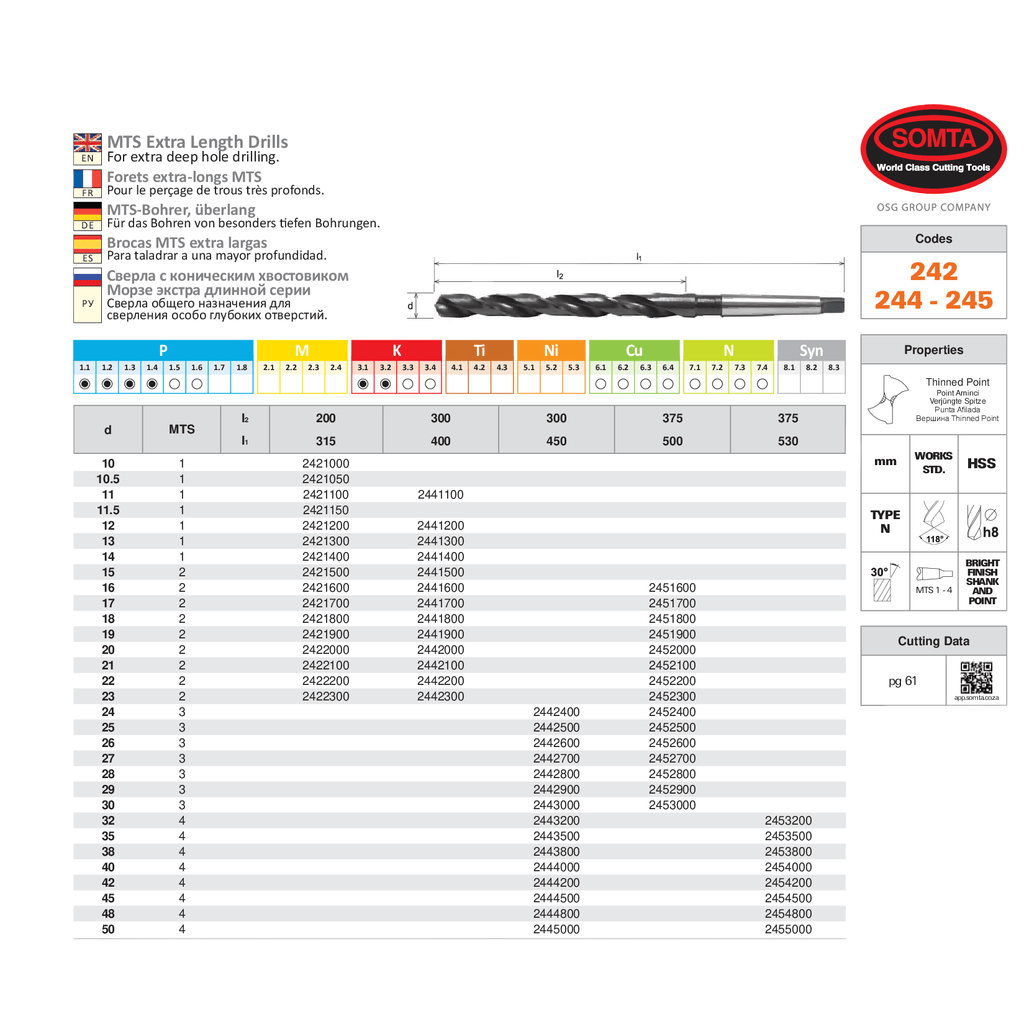

Technical Specifications

• Part No: 2453800
• Cutting Diameter: 38mm
• Overall Length: 530mm
• Shank Type: Morse Taper No. 3 (3MT)
• Material: High-Speed Steel (HSS)
• Point Angle: 118°
• Helix Angle: Right-hand spiral
• Finish: Bright or Oxide
• Application: Deep-hole drilling in structural, pressure vessel, and heavy fabrication work

Why Choose the SOMTA 2453800 Extra-Length Drill?

• Maximum Reach Power – Designed to drill deep, accurately, and efficiently at large diameters.
• Rigid Taper Mount – Morse Taper No. 3 guarantees strong tool holding in industrial setups.
• Resilient HSS Material – Ideal for repetitive production cycles and high-demand machining.
• Built for Industry – Essential in mining, construction, oil gas, and fabrication workshops.

The SOMTA 2453800 is a high-performance extra-length drill designed for professionals who need reach, power, and accuracy when it matters most. It’s the go-to tool for deep-hole applications in large-scale machining environments.
