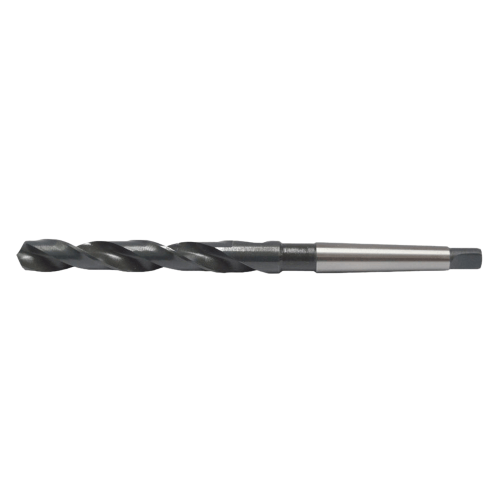

Somta 11/16" HSS Morse Taper Shank Drill MT2 DIN 345

The Somta Series 202 17.462mm Morse Taper Shank Drill Bit is a premium high-speed steel drill engineered for precision drilling in industrial and engineering applications. Manufactured to DIN 345 standards, this drill delivers outstanding accuracy, durability, and cutting performance for workshops and production environments.

Featuring a Morse Taper No. 2 shank, the drill fits directly into compatible machine spindles and tailstocks, providing maximum rigidity and concentricity. The 118° thinned point design improves centring accuracy, reduces thrust pressure, and enhances chip evacuation for smoother drilling operations and extended tool life.

Key Features & Benefits

• Manufactured from premium High-Speed Steel (HSS)
• Precision ground to DIN 345 specifications
• Morse Taper No. 2 shank for secure machine mounting
• 118° thinned point for accurate starting and reduced cutting pressure
• Bright finish shank and point
• Excellent wear resistance and long service life
• Efficient chip evacuation for improved drilling performance
• Suitable for steels, cast iron and general engineering materials
• Ideal for industrial, maintenance and workshop applications

Technical Specifications

• Brand: Somta
• Series: 202
• Part Number: 2121746
• Drill Diameter: 17.462mm
• Imperial Size: 11/16"
• Overall Length (l1): 228mm
• Flute Length (l2): 130mm
• Shank Type: Morse Taper No. 2
• Material: High-Speed Steel (HSS)
• Standard: DIN 345
• Point Angle: 118° Thinned Point
• Finish: Bright Finish Shank and Point
• Application: Precision Drilling

Somta cutting tools are recognised worldwide for their exceptional quality and reliability. The Series 202 Morse taper shank drills are designed to provide consistent, accurate drilling results and extended service life in demanding metalworking applications.
