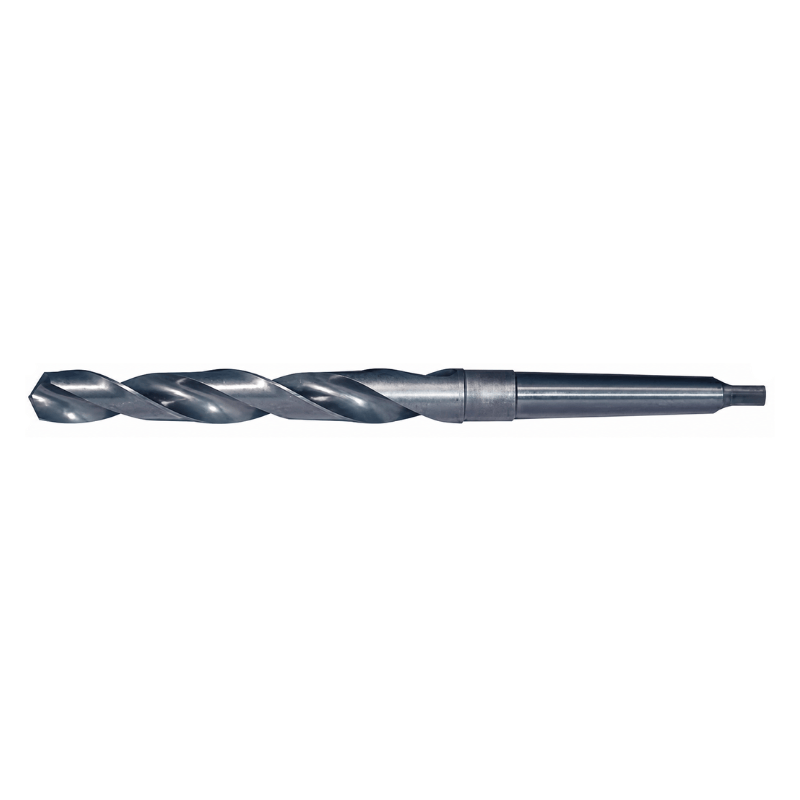

Somta 41mm HSS Morse Taper Shank Drill MT4 DIN 345

The Somta Series 204 Morse Taper Shank Drill is designed for precision drilling in industrial machining, fabrication, engineering workshops, and heavy-duty metalworking applications. Manufactured from premium high speed steel, this drill delivers reliable cutting performance, excellent wear resistance, and extended service life when drilling steel, cast iron, and other ferrous materials.

Manufactured to DIN 345 standards, the drill features a Morse Taper No. 4 shank for superior rigidity, secure machine holding, and improved drilling stability during large diameter operations. The 118° thinned point geometry assists with accurate centering, reduced cutting pressure, and efficient chip evacuation for smoother and more precise drilling performance.

Key Features & Benefits

• Somta Series 204 Morse taper shank drill
• Part Number: 2044100
• Drill Diameter: 41mm
• Morse Taper Shank: MT4

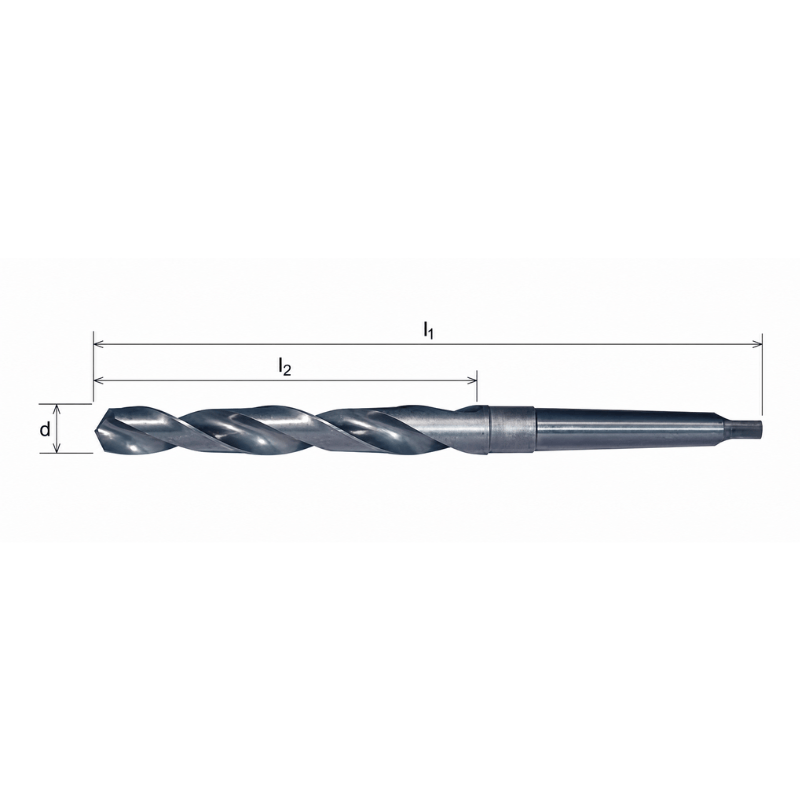

• Overall Length (l1): 354mm
• Flute Length (l2): 205mm
• Manufactured from premium HSS
• 118° thinned point for precise drilling starts
• Type N general-purpose drill geometry
• 30° helix angle for efficient chip evacuation
• Bright finish shank and point
• High rigidity for industrial drilling applications
• Manufactured to DIN 345 standards

Technical Specifications

• Brand: Somta
• Series: 204
• Tool Type: Morse Taper Shank Drill
• Diameter: 41mm
• Morse Taper Size: MT4
• Overall Length: 354mm
• Flute Length: 205mm
• Material: HSS
• Point Angle: 118°
• Helix Angle: 30°
• Drill Type: Type N
• Standard: DIN 345
• Finish: Bright finish shank and point
• Code: 2044100

Somta cutting tools are trusted worldwide for their precision engineering, dependable machining performance, and long-lasting durability in demanding industrial applications.

Please ensure tooling specifications are suitable for your machine and application prior to purchase.
