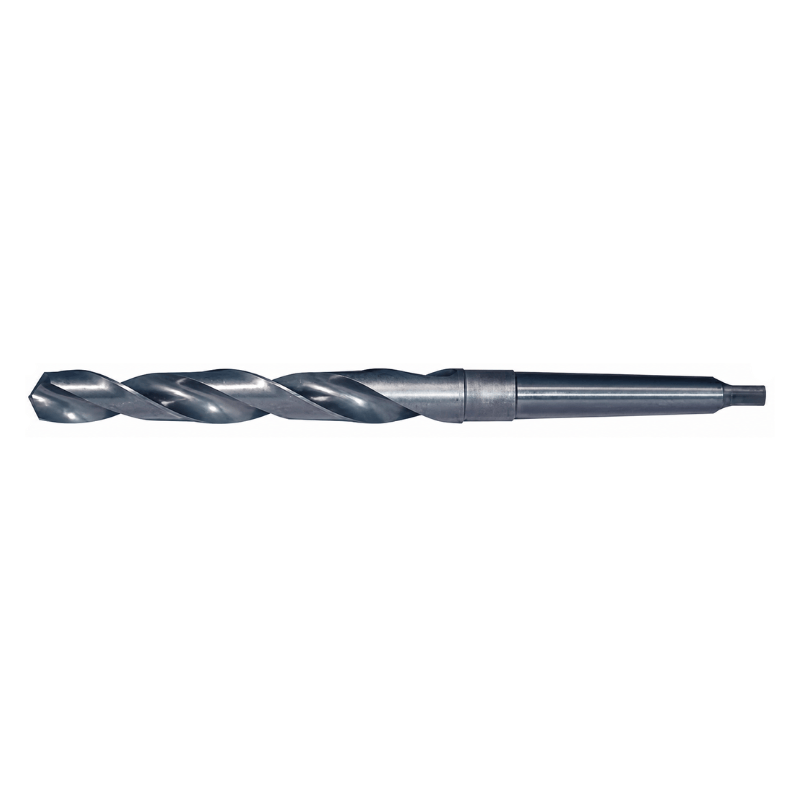

Somta 24mm HSS Morse Taper Shank Drill MT3 DIN 345

The Somta Series 203 Morse Taper Shank Drill is manufactured for precision drilling applications in industrial machining, engineering workshops, and fabrication environments. Produced from premium high speed steel, this drill delivers excellent cutting performance, durability, and wear resistance for drilling steels and general engineering materials.

Manufactured to DIN 345 standards, the drill features a Morse Taper No. 3 shank for secure machine holding, improved rigidity, and accurate drilling alignment during demanding machining operations. The 118° thinned point geometry assists with accurate centering, reduced thrust pressure, and efficient chip evacuation for smoother drilling performance.

Key Features & Benefits

• Somta Series 203 Morse taper shank drill
• Part Number: 2032400
• Drill Diameter: 24mm
• Morse Taper Shank: MT3

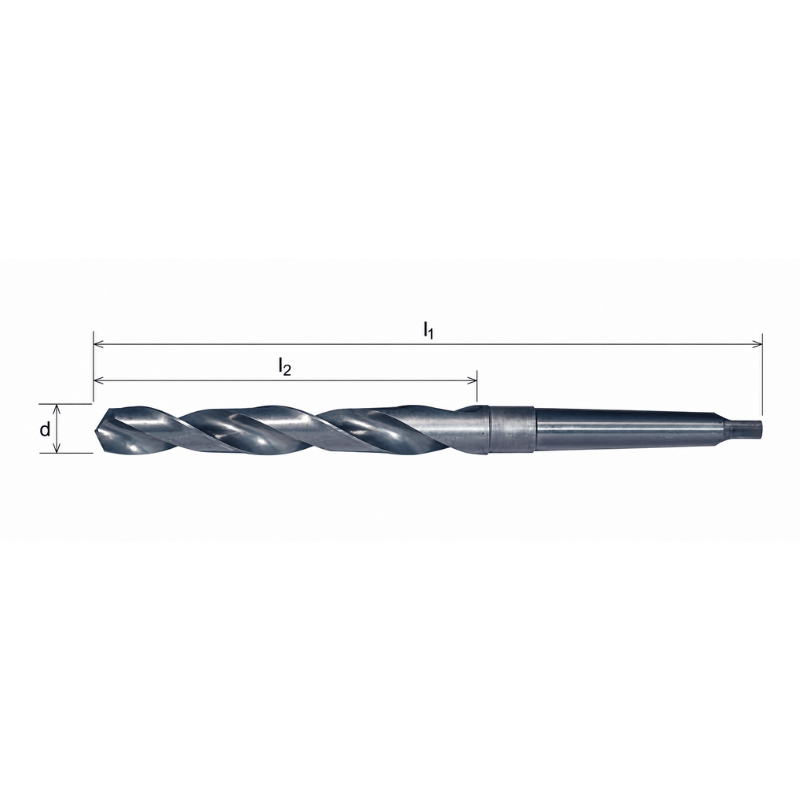

• Overall Length (l1): 281mm
• Flute Length (l2): 160mm
• Manufactured from premium HSS
• 118° thinned point for improved centering and drilling efficiency
• Type N general-purpose drill geometry
• 30° helix angle for efficient chip evacuation
• Bright finish shank and point
• Suitable for industrial and precision drilling applications
• Manufactured to DIN 345 standards

Technical Specifications

• Brand: Somta
• Series: 203
• Tool Type: Morse Taper Shank Drill
• Diameter: 24mm
• Morse Taper Size: MT3
• Overall Length: 281mm
• Flute Length: 160mm
• Material: HSS
• Point Angle: 118°
• Helix Angle: 30°
• Drill Type: Type N
• Standard: DIN 345
• Finish: Bright finish shank and point
• Code: 2032400

Somta cutting tools are trusted worldwide for delivering precision machining performance, long tool life, and dependable industrial drilling results.

Please ensure tooling specifications are suitable for your machine and application prior to purchase.
