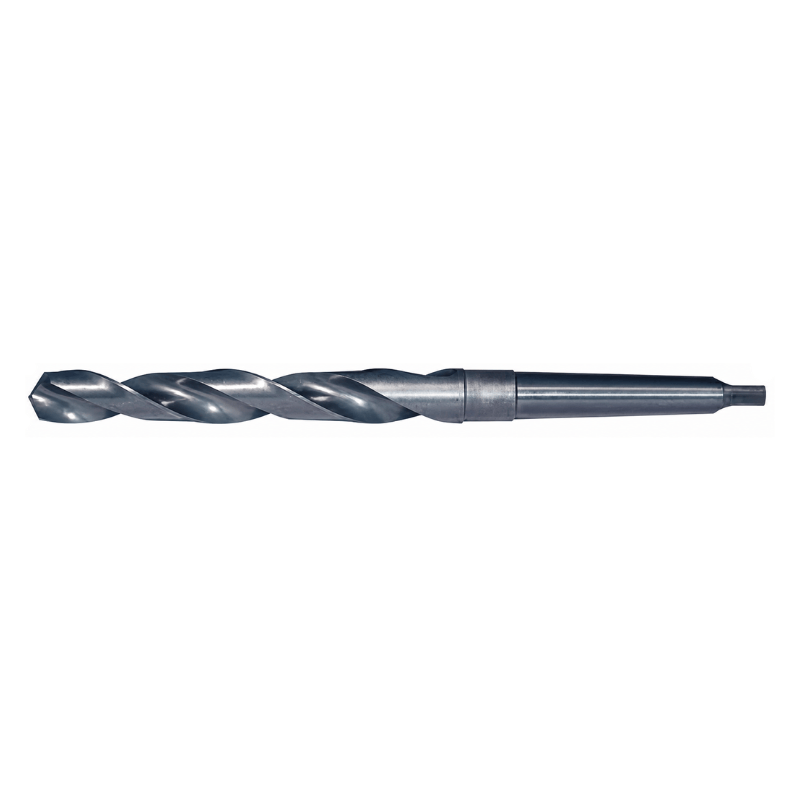

Somta 13.5mm HSS Morse Taper Shank Drill MT1 DIN 345

The Somta Series 201 Morse Taper Shank Drill is engineered for precision drilling in industrial, engineering, and metalworking applications. Manufactured from premium high speed steel, this drill provides reliable cutting performance, excellent wear resistance, and accurate hole production across a wide range of ferrous materials.

Manufactured to DIN 345 standards, the drill features a Morse Taper No. 1 shank for secure machine holding and enhanced rigidity during drilling operations. The 118° thinned point design improves centering accuracy, reduces drilling pressure, and promotes efficient chip evacuation for smoother drilling performance.

Key Features & Benefits

• Somta Series 201 Morse taper shank drill
• Part Number: 2011350
• Drill Diameter: 13.5mm
• Morse Taper Shank: MT1

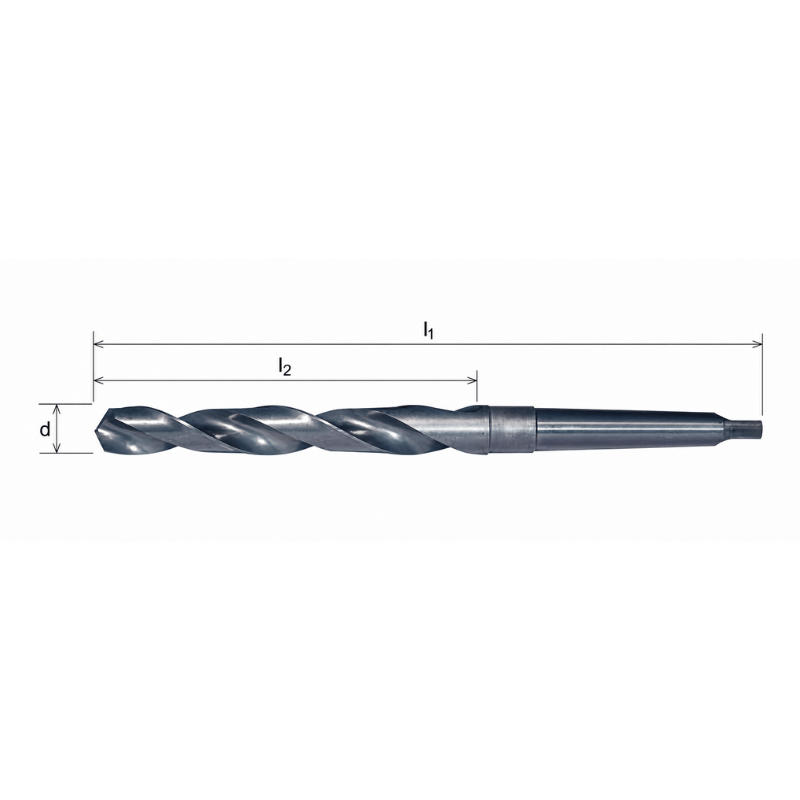

• Overall Length (l1): 189mm
• Flute Length (l2): 108mm
• Manufactured from premium HSS
• 118° thinned point for accurate centering
• Type N general-purpose drill geometry
• 30° helix angle for improved chip evacuation
• Bright finish shank and point
• Suitable for precision drilling applications
• Manufactured to DIN 345 standards

Technical Specifications

• Brand: Somta
• Series: 201
• Tool Type: Morse Taper Shank Drill
• Diameter: 13.5mm
• Morse Taper Size: MT1
• Overall Length: 189mm
• Flute Length: 108mm
• Material: HSS
• Point Angle: 118°
• Helix Angle: 30°
• Drill Type: Type N
• Standard: DIN 345
• Finish: Bright finish shank and point
• Code: 2011350

Somta cutting tools are trusted worldwide for their precision engineering, durability, and dependable drilling performance across industrial machining, fabrication, maintenance, and general engineering applications.

Please ensure tooling specifications are suitable for your machine and application prior to purchase.
