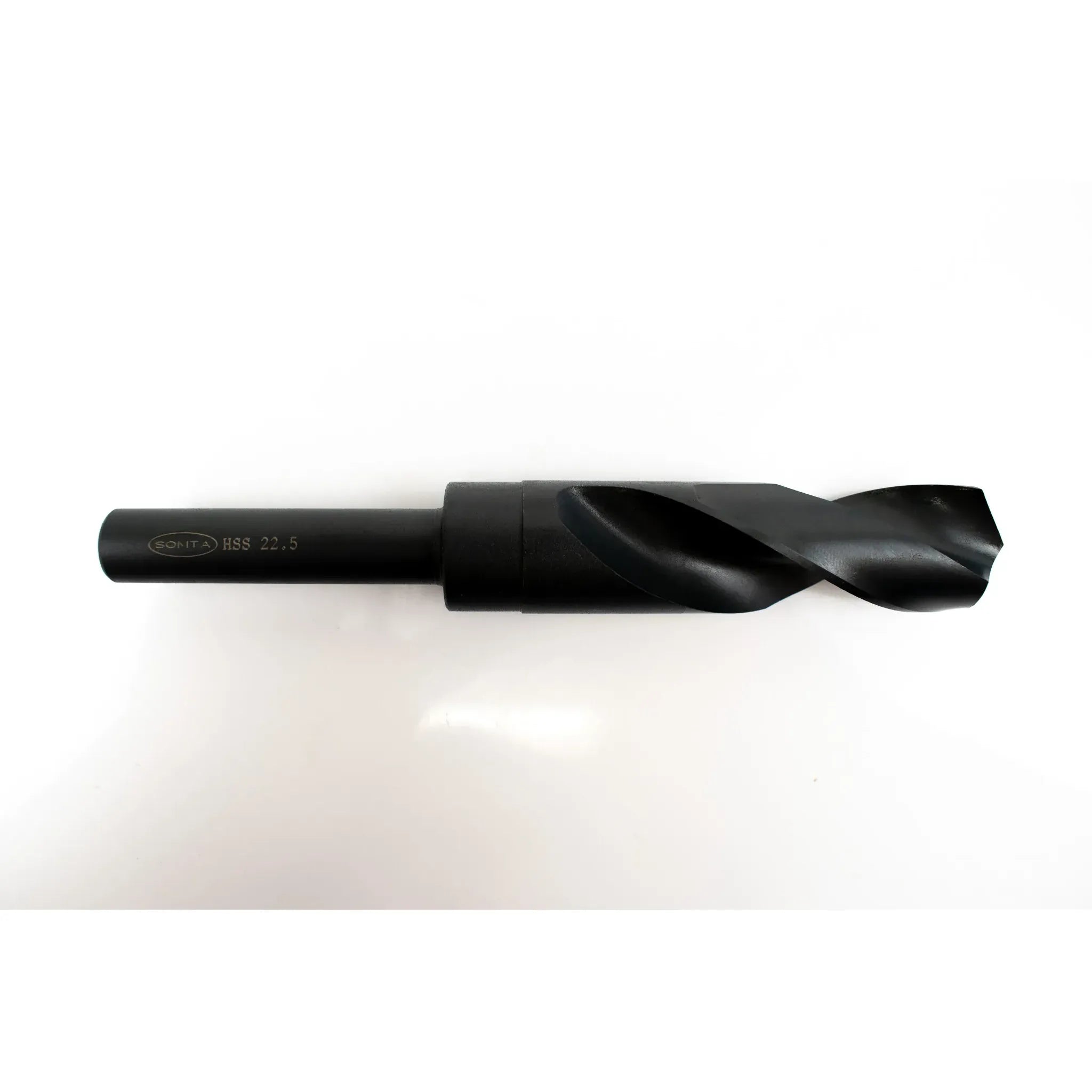

Somta Series 175 – 22.5 mm HSS Reduced Shank Drill

Somta Series 175 – 22.5 mm HSS Reduced Shank Drill | 1752250

The SOMTA 1752250 is a 22.5 mm High-Speed Steel Reduced Shank Drill built for efficient, accurate drilling in a variety of materials. The 1/2″ reduced shank makes it compatible with standard drill chucks, while the Blue Oxide finish enhances lubrication, reduces friction, and promotes cooler cutting in high-speed applications.

Key Features & Benefits

• HSS Material – Ensures durability and resistance to edge wear under demanding use.
• Reduced Shank (1/2") – Allows drilling of larger diameters without specialized chucks.
• 118° Standard Point – Offers quick starting and smooth drilling with reduced chatter.
• Type N Helix (30°) – Provides reliable chip evacuation and surface finish.
• Blue Oxide Finish – Extends tool life through improved cooling and reduced friction.

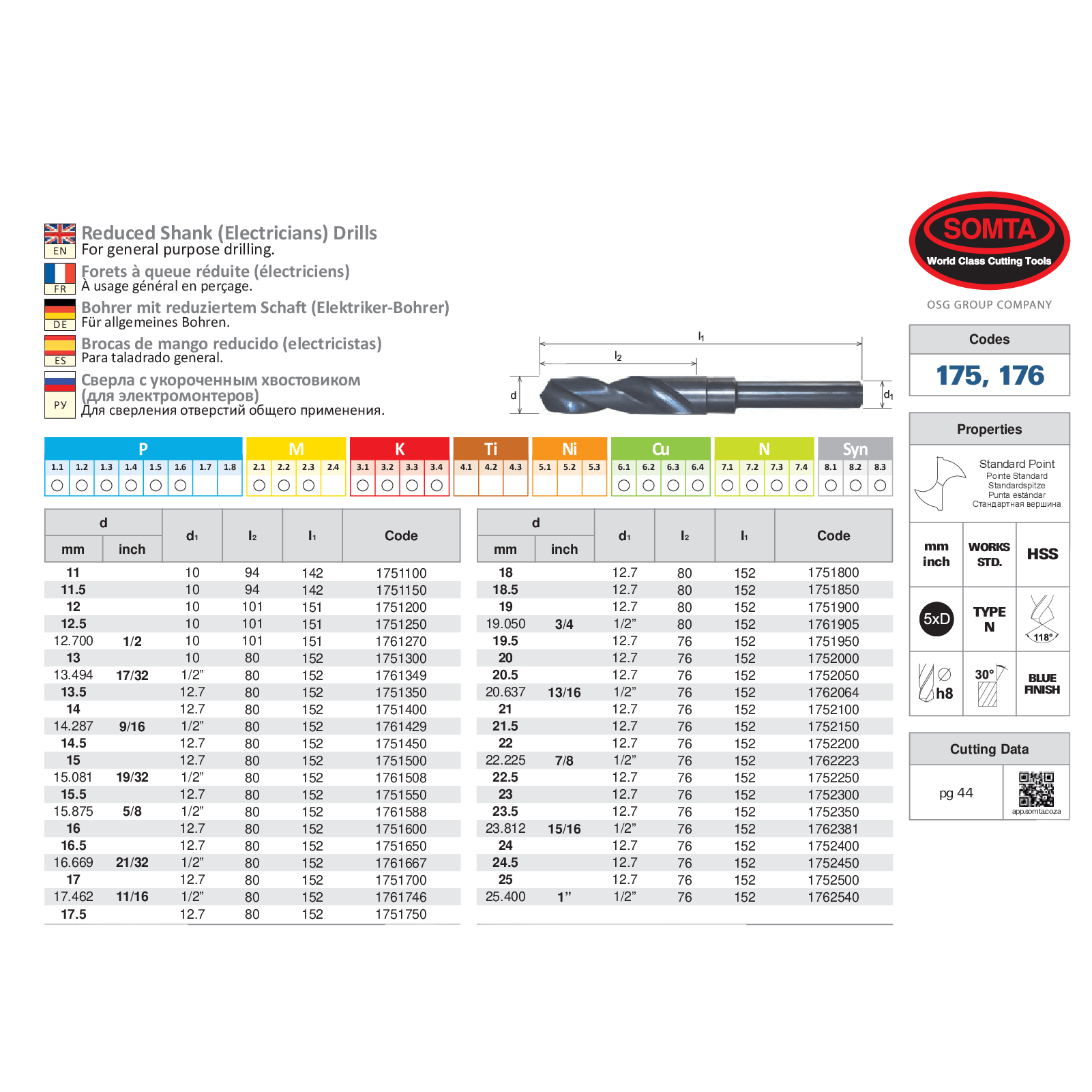

Technical Specifications

• Part No: 1752250
• Tool Type: HSS Reduced Shank Drill
• Cutting Diameter (d): 22.5 mm
• Shank Diameter (d₁): 12.7 mm (1/2″)
• Flute Length (l₂): 76 mm
• Overall Length (l₁): 152 mm
• Point Angle: 118° Standard Point
• Helix Type: Type N (30°)
• Material: High-Speed Steel (HSS)
• Finish: Blue Oxide
• Applications: Suitable for drilling mild steel, cast iron, and general workshop materials.

Why Choose SOMTA Cutting Tools?

• Precision Ground Flutes – Assure smooth drilling and accurate sizing.
• Long Service Life – Optimized for both portable and fixed drilling setups.
• General Purpose Use – Excellent all-round performance on varied materials.
• Trusted Manufacturer – SOMTA Tools deliver world-class quality and reliability.

The SOMTA 1752250 provides dependable performance and precision for professional metalworking operations. Distributed by Twin Eagle – your partner in industrial tooling excellence.
