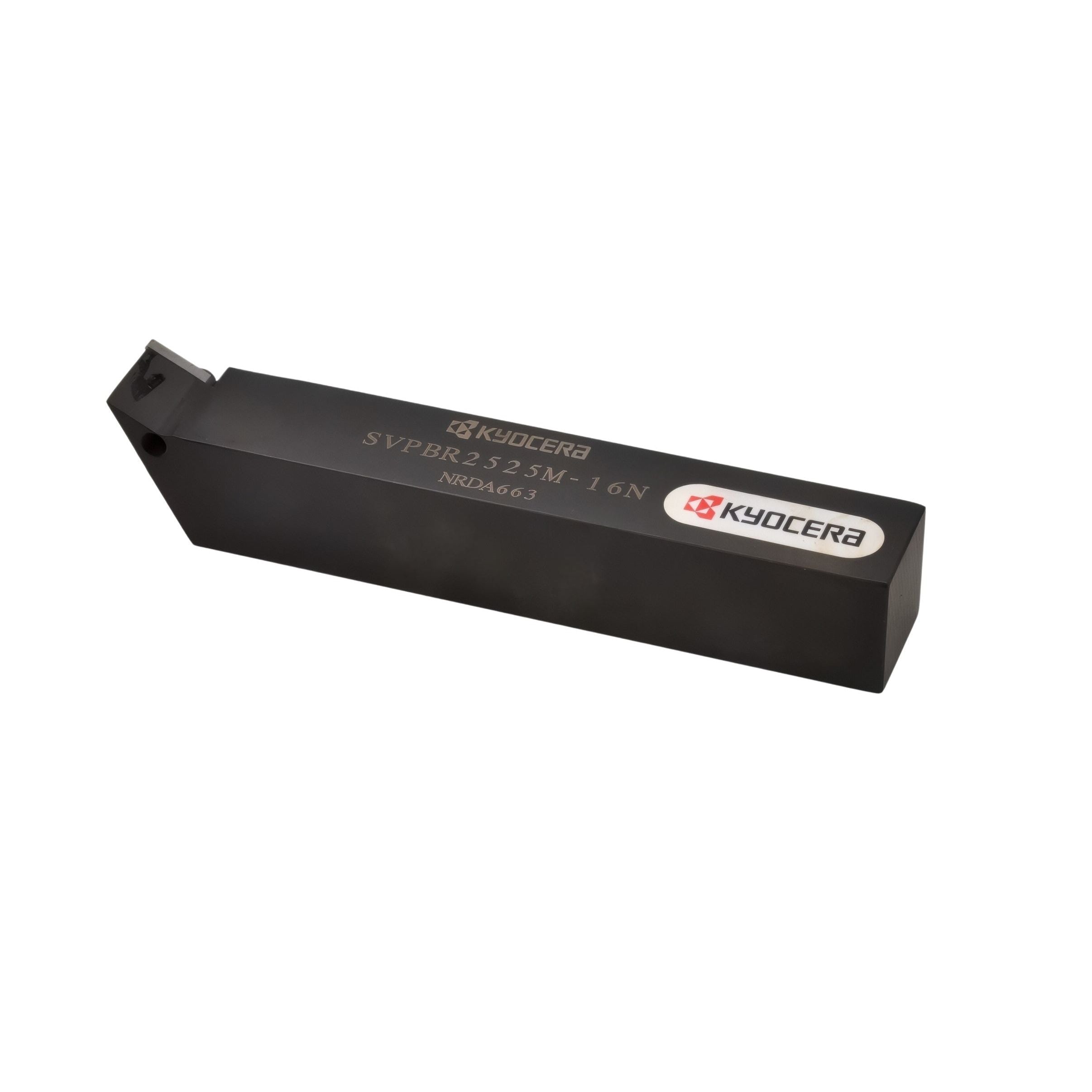

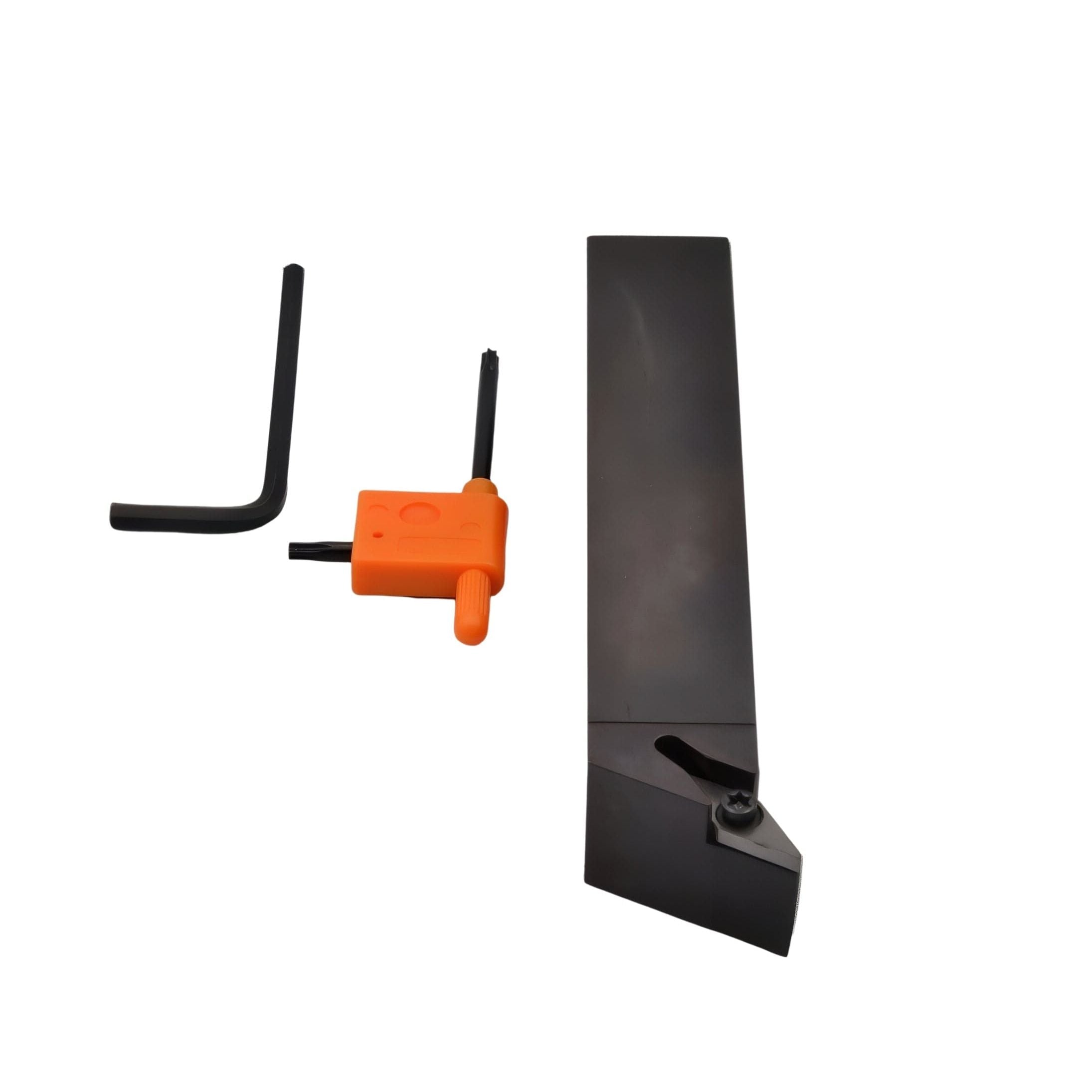

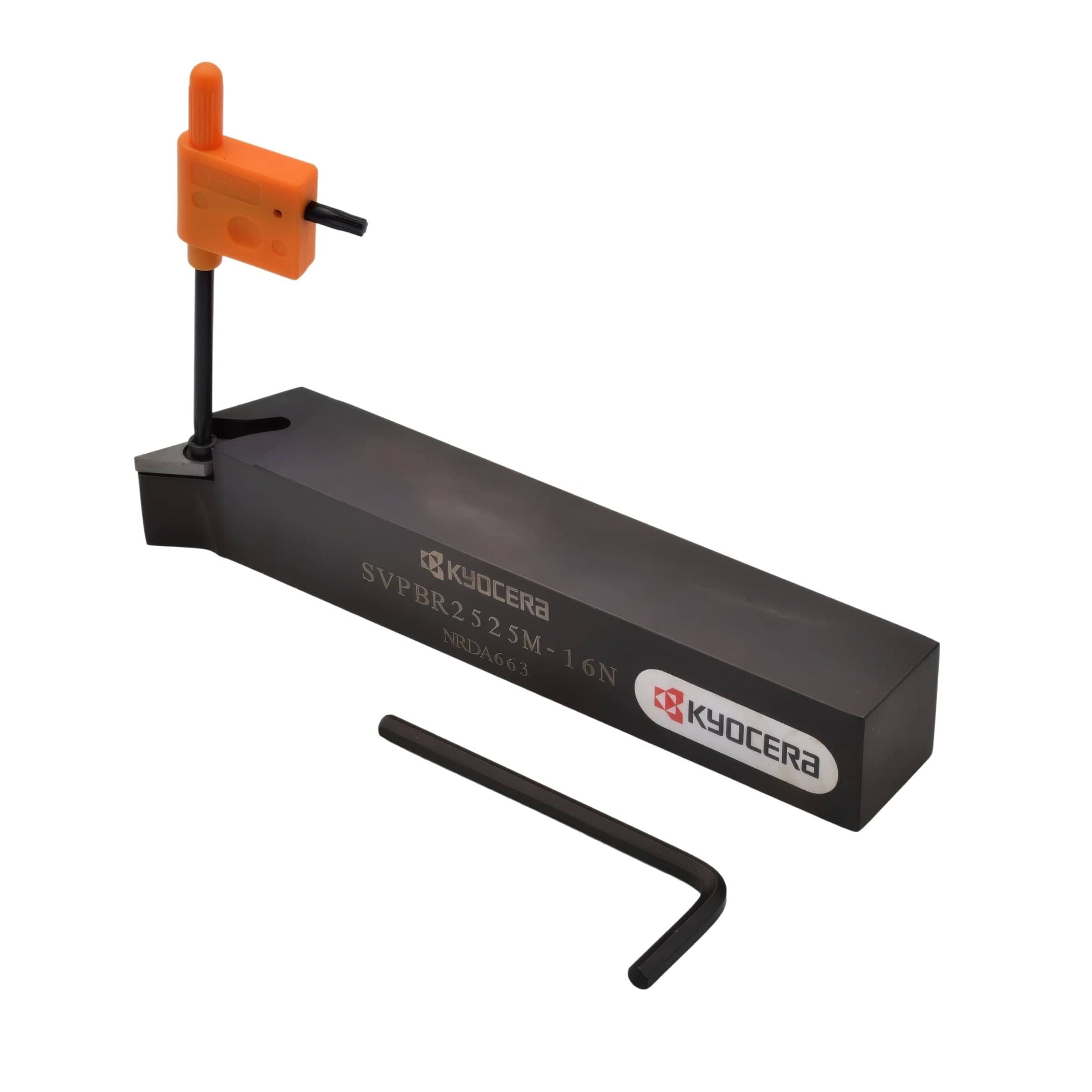

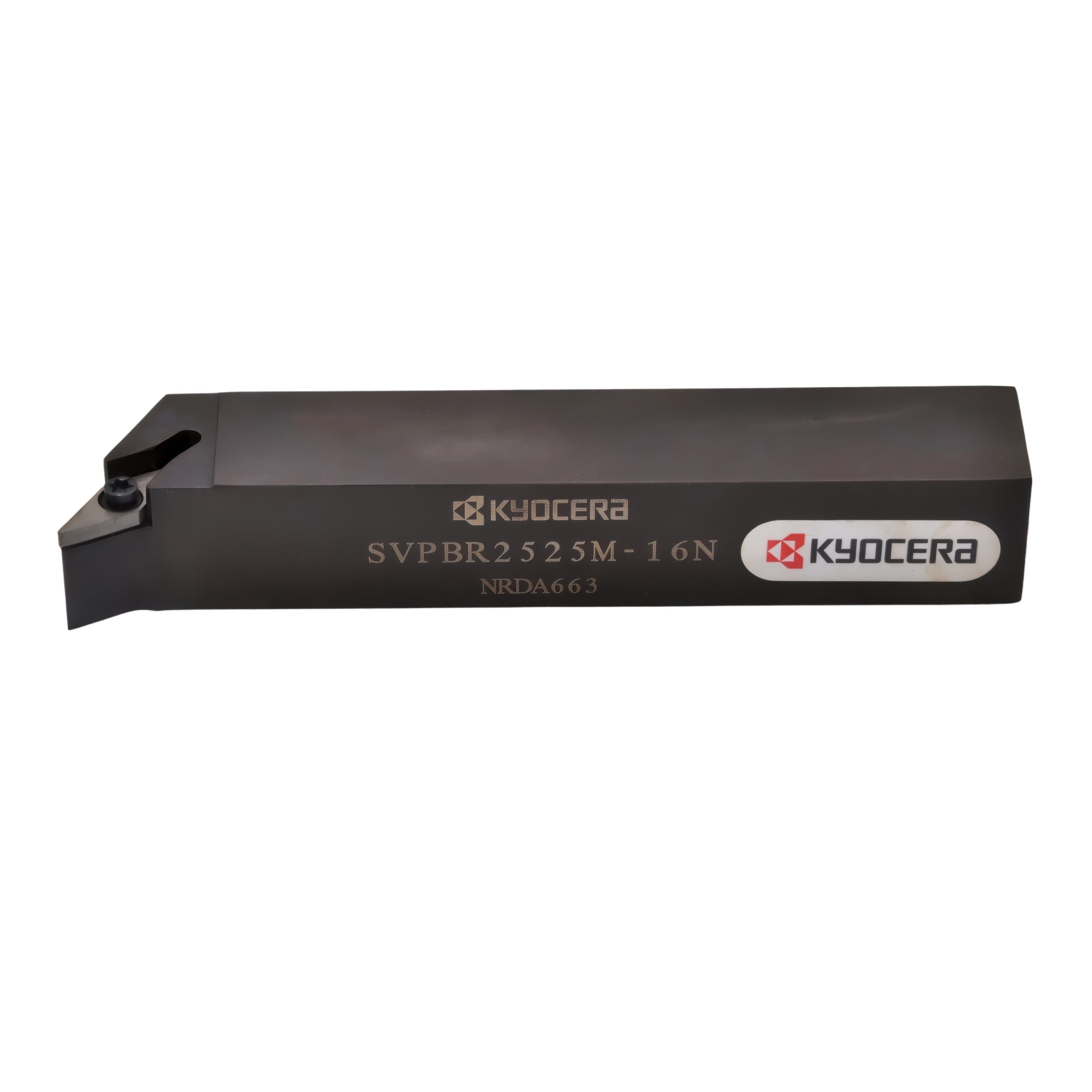

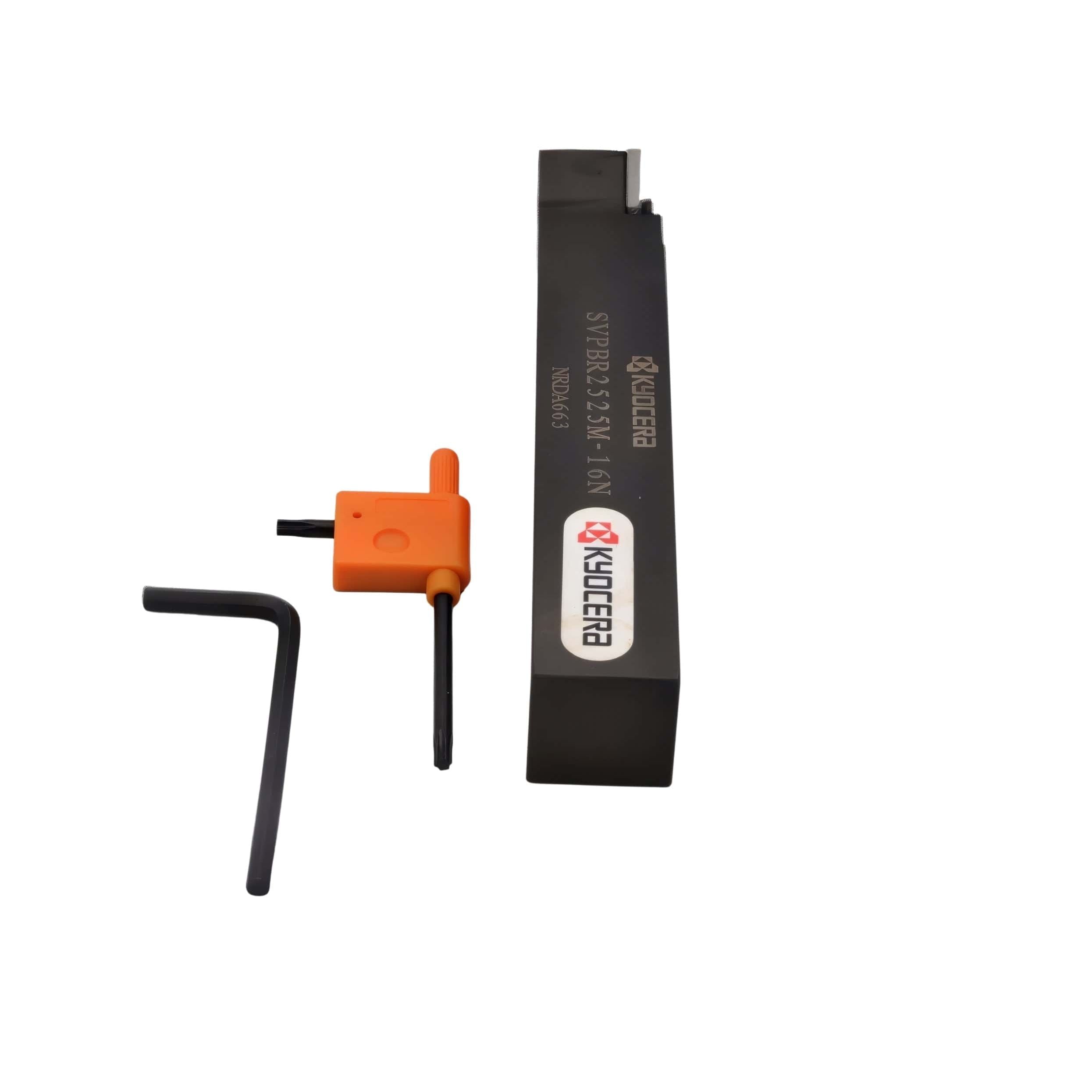

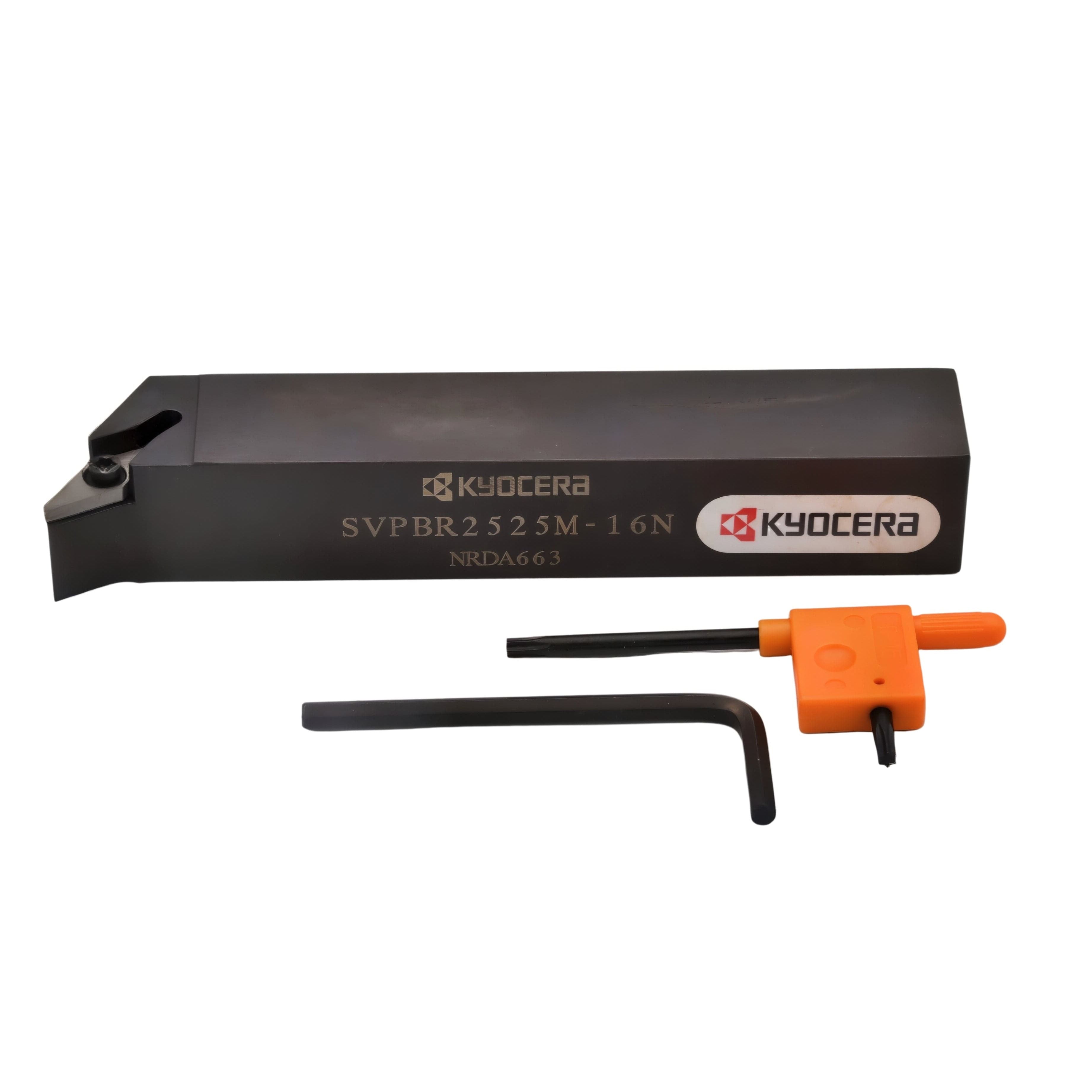

Kyocera SVPBR2525M-16N External Turning Toolholder

The Kyocera SVPBR2525M-16N external turning toolholder is engineered for precision profiling, finishing, and general external turning applications. Featuring a right-hand configuration and optimised geometry, this holder delivers excellent accessibility for contouring and fine finishing work.

Designed to accommodate 35° diamond-shaped inserts, the SVPBR series provides high accuracy and smooth cutting performance across a wide range of materials. The screw clamp system ensures secure insert retention and repeatable positioning, while the robust alloy steel construction offers outstanding rigidity and vibration resistance for improved surface finish and extended tool life.

Key Features & Benefits

• External turning toolholder for profiling and finishing operations
• Right-hand configuration for standard machining applications
• Compatible with 35° diamond inserts (VBMT style)
• Screw clamp system for secure and stable insert clamping
• 25 x 25 mm shank for rigid and accurate mounting
• High-strength alloy steel construction for durability
• Reduced vibration for improved surface finish
• Suitable for CNC and conventional lathes

Technical Specifications

• Brand: Kyocera
• Model: SVPBR2525M-16N
• Item Number: THC07326
• Product Type: External Turning Toolholder
• Holder Style: SVPBR
• Insert Type: VBMT (35° Diamond)
• Insert Size: 16
• Shank Size: 25 x 25 mm
• Hand: Right
• Clamping System: Screw Clamp
• Material: Alloy Steel
• Total Length: 150 mm
• Internal Coolant: No

Kyocera tooling is globally recognised for its advanced engineering, durability, and machining performance, making it a trusted choice for precision manufacturing across a wide range of industries.
