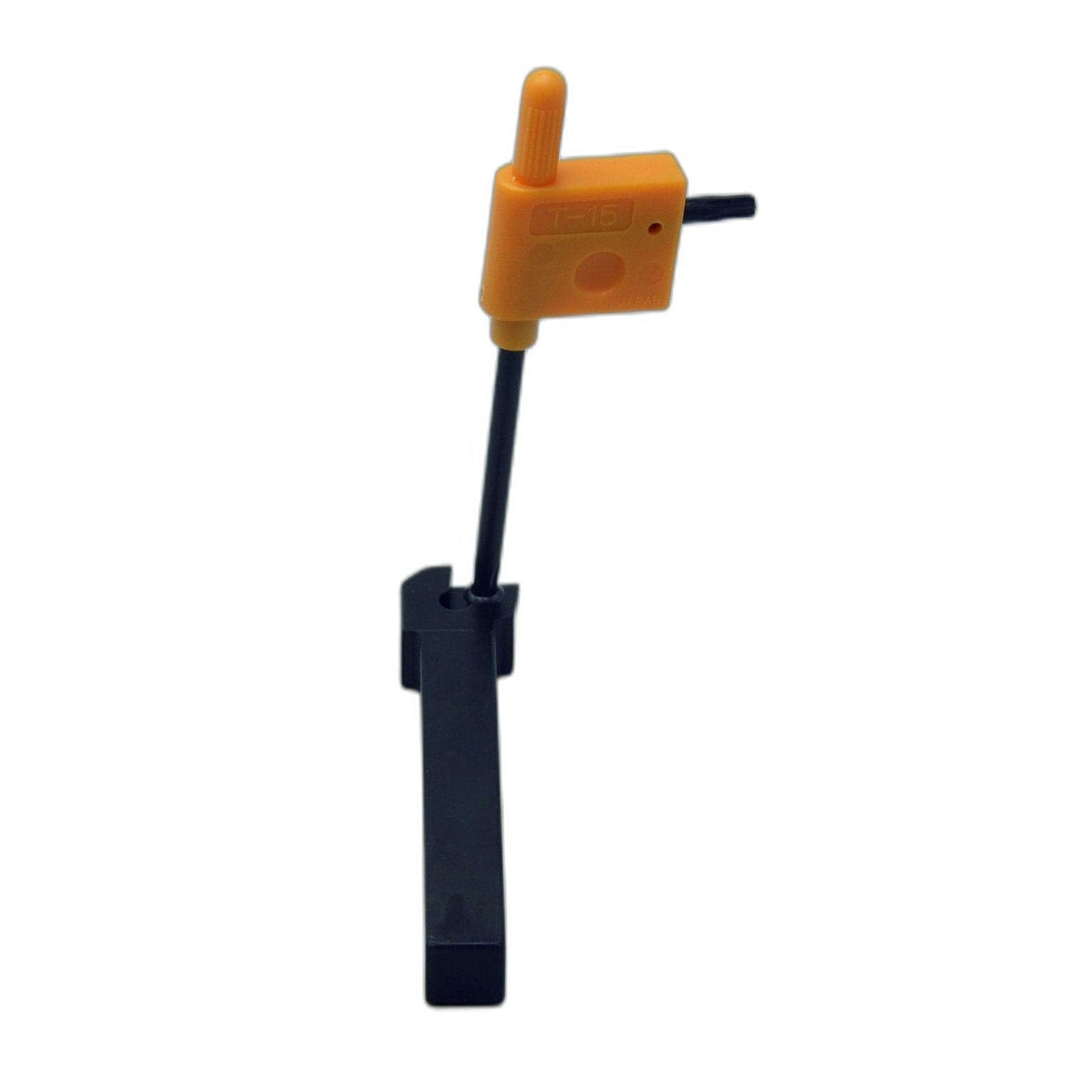

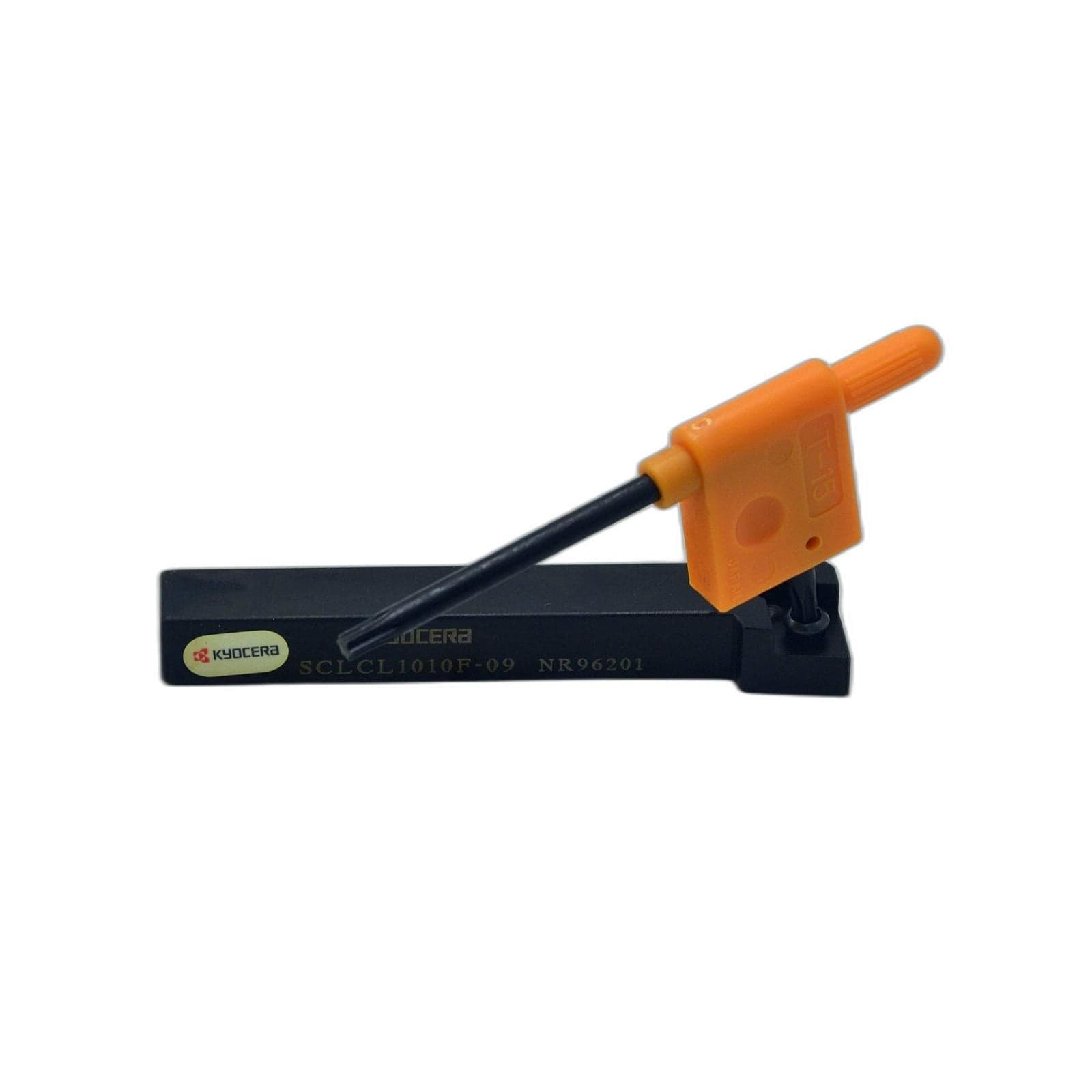

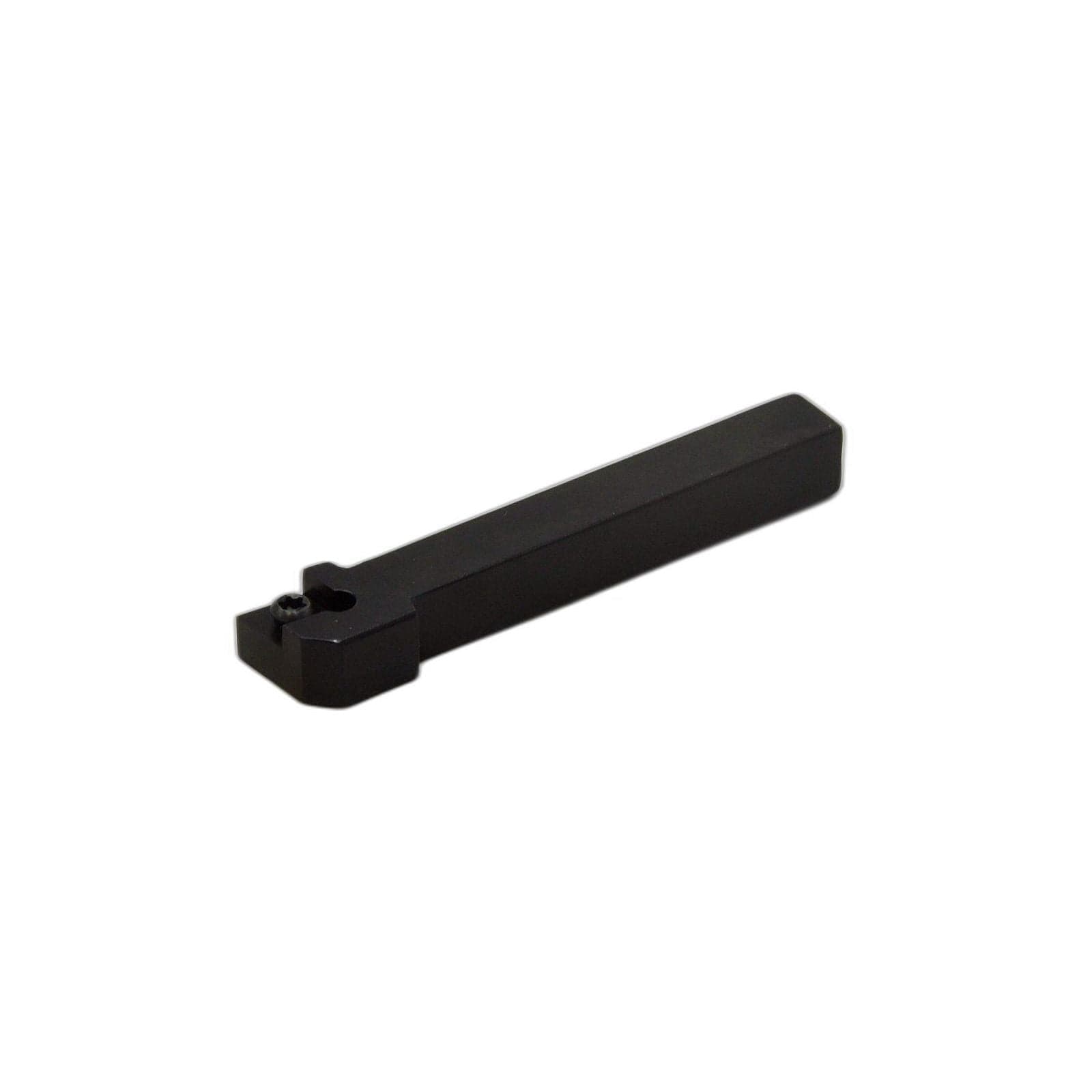

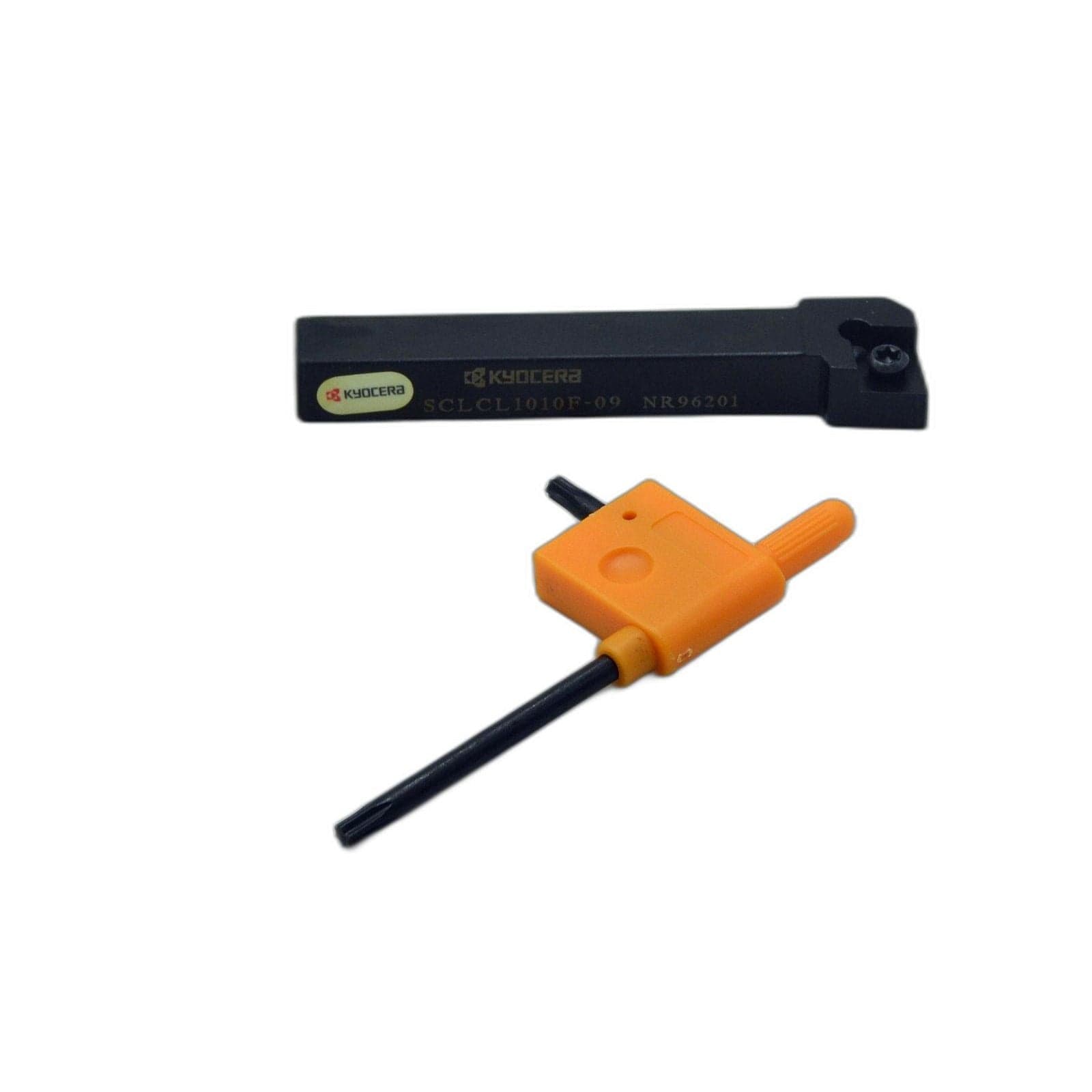

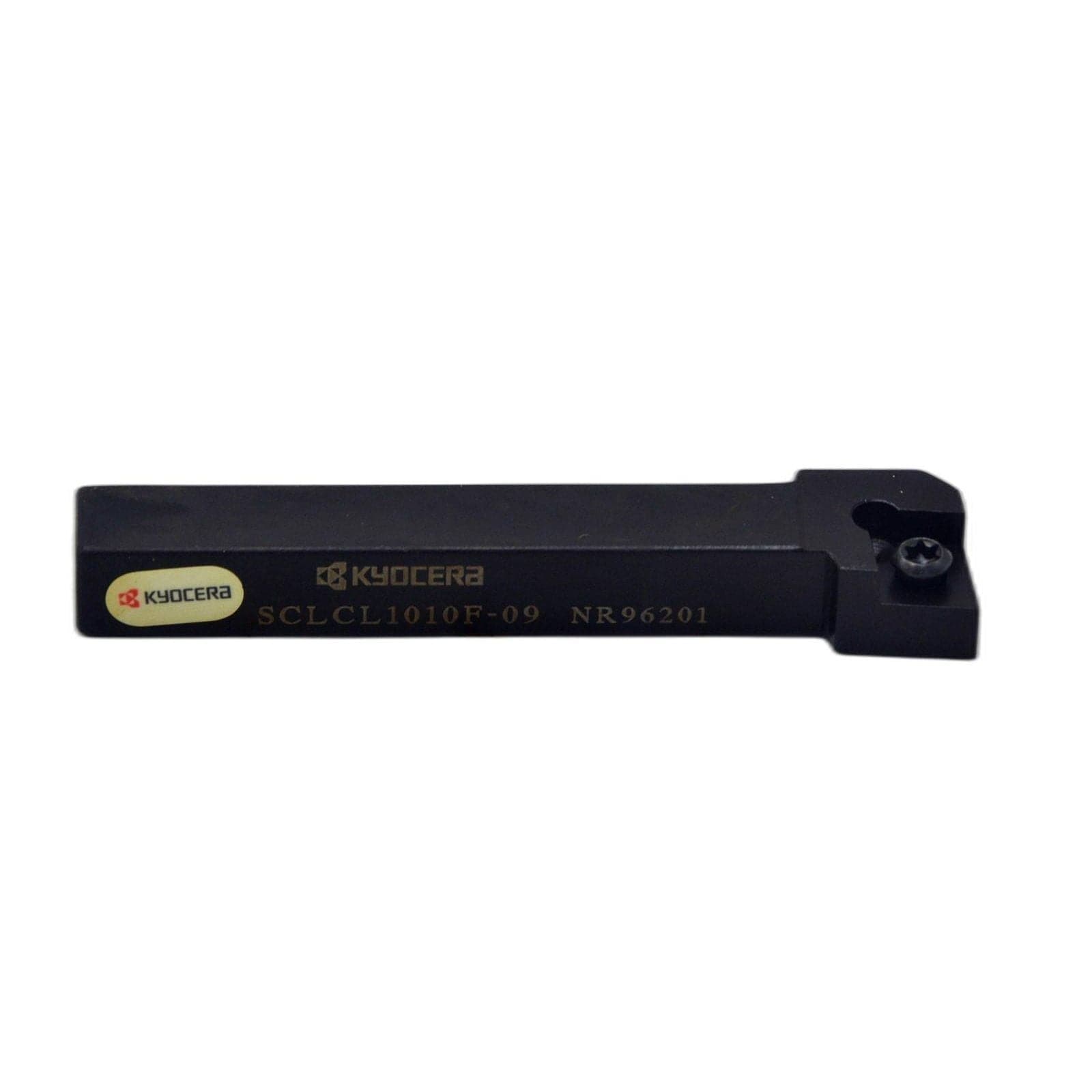

Kyocera SCLCL1010F-09 – External Turning Toolholder (THC05105)

Kyocera SCLCL1010F-09 – External Turning Toolholder (THC05105)

The Kyocera SCLCL1010F-09 is a compact external turning toolholder designed for precision machining in small and restricted setups. With a shank size of 10 mm × 10 mm and a total length (OAL) of 80 mm, this left-hand holder provides excellent rigidity for light to medium turning operations. It accepts insert size 09 and features a head length (LH) of 14 mm, making it suitable for fine profiling and small-component work.

Key Features & Benefits

• 10 mm × 10 mm shank — compact and rigid for small-part turning.
• Left-hand orientation — suitable for reverse-direction turning setups.
• Total length 80 mm — ideal for machines with limited tool space.
• Head length 14 mm — supports stable insert location for accurate cutting.
• Insert size 09 — widely available and suitable for precision external turning.

Technical Specifications

Item No: THC05105
Shank Width (B): 10 mm
Shank Height (H): 10 mm
Insert Size: 09
Total Length (OAL): 80 mm
Head Length (LH): 14 mm
Type: Left-hand
Internal Coolant: No
