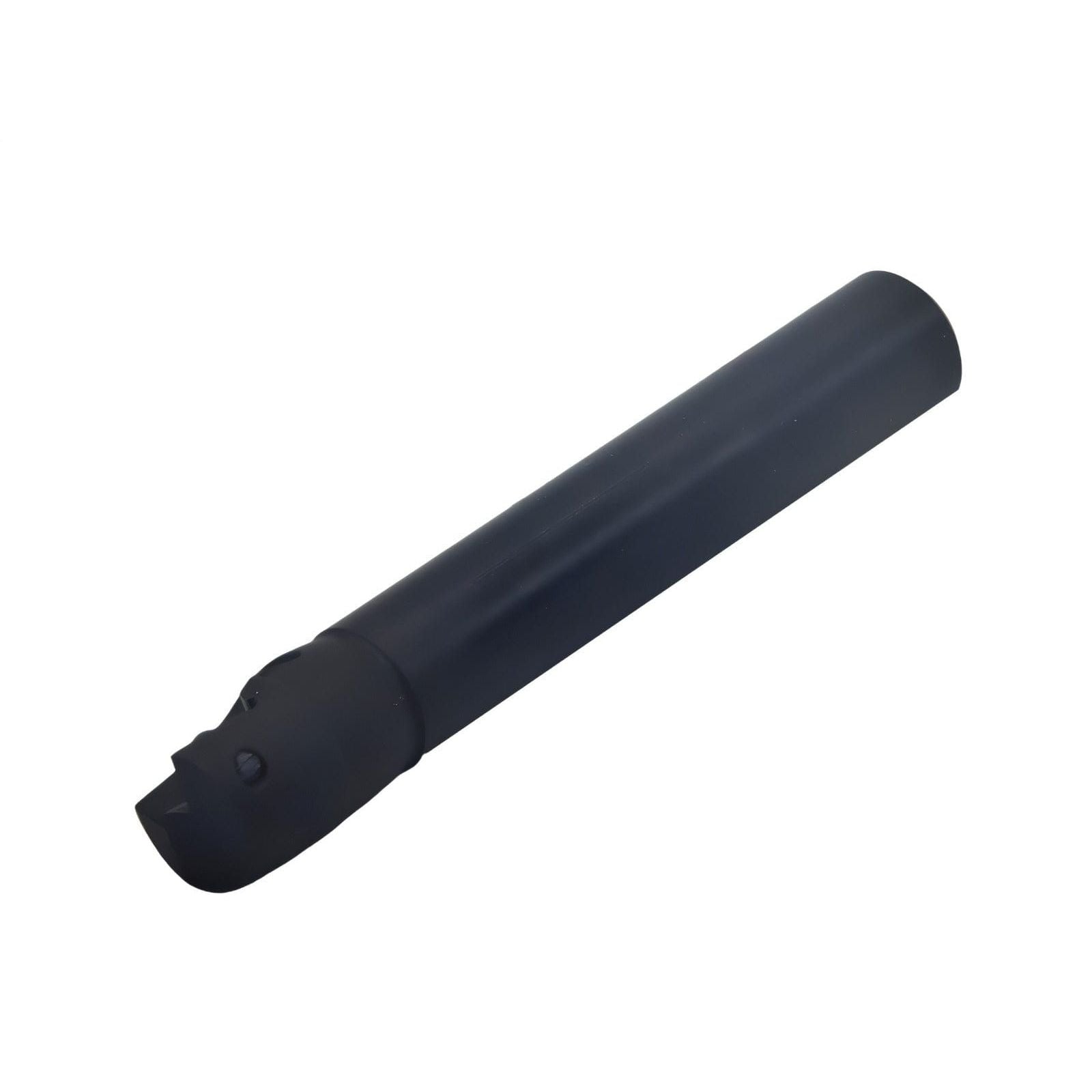

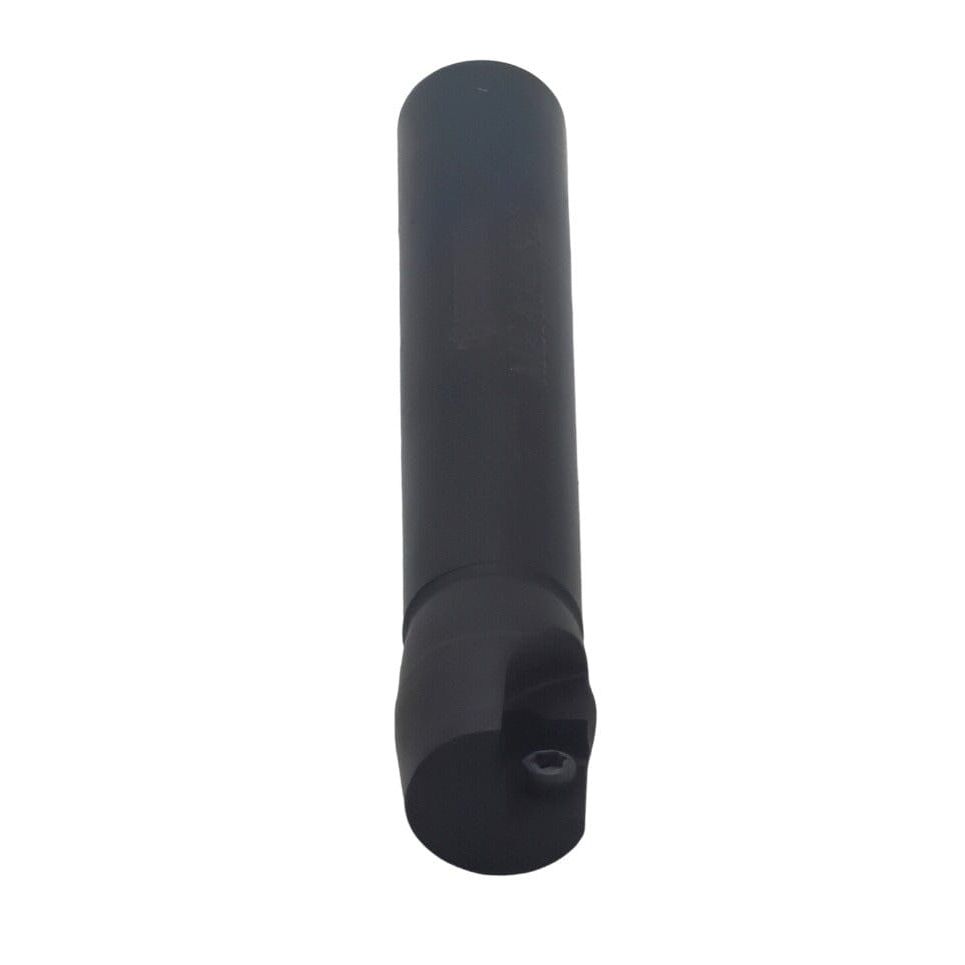

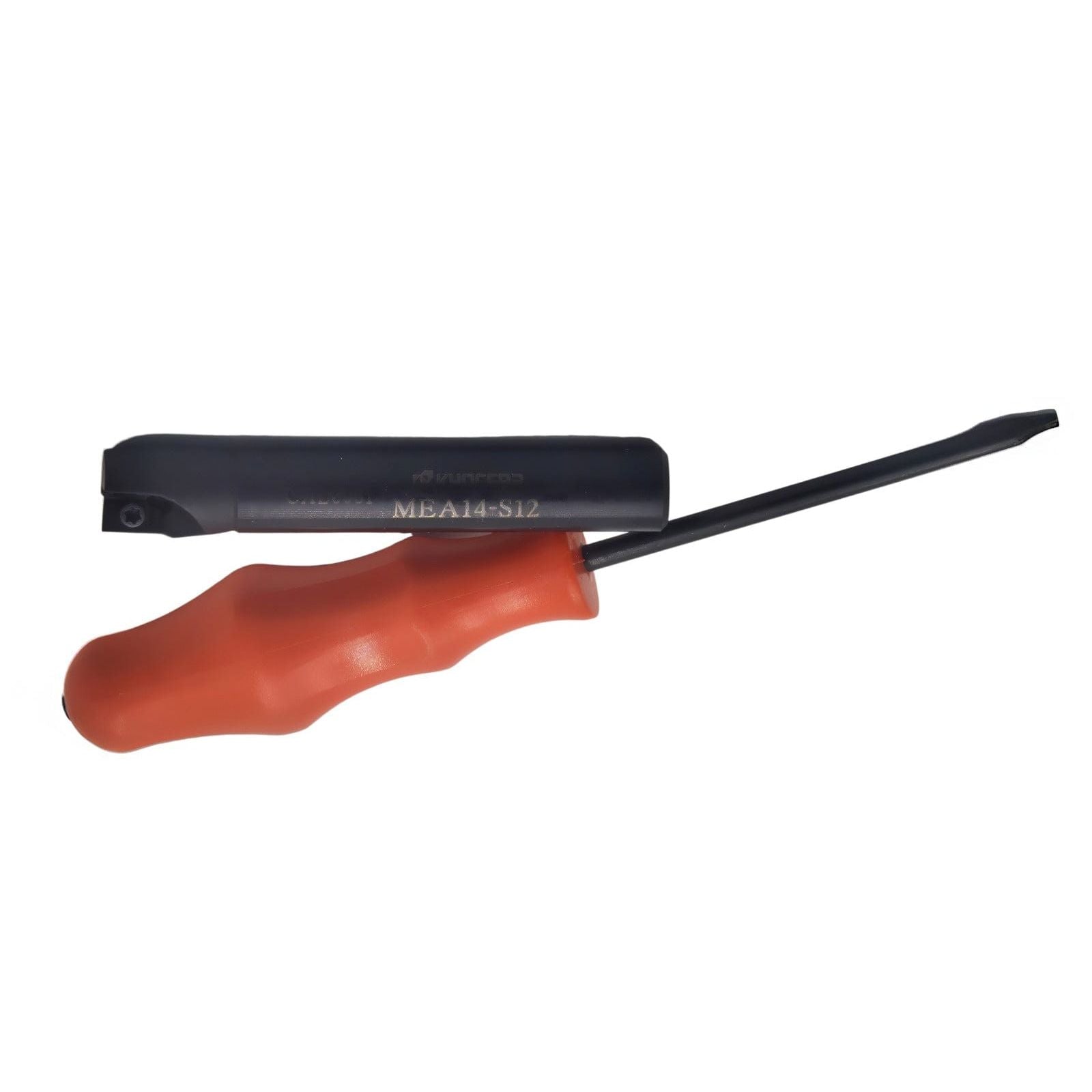

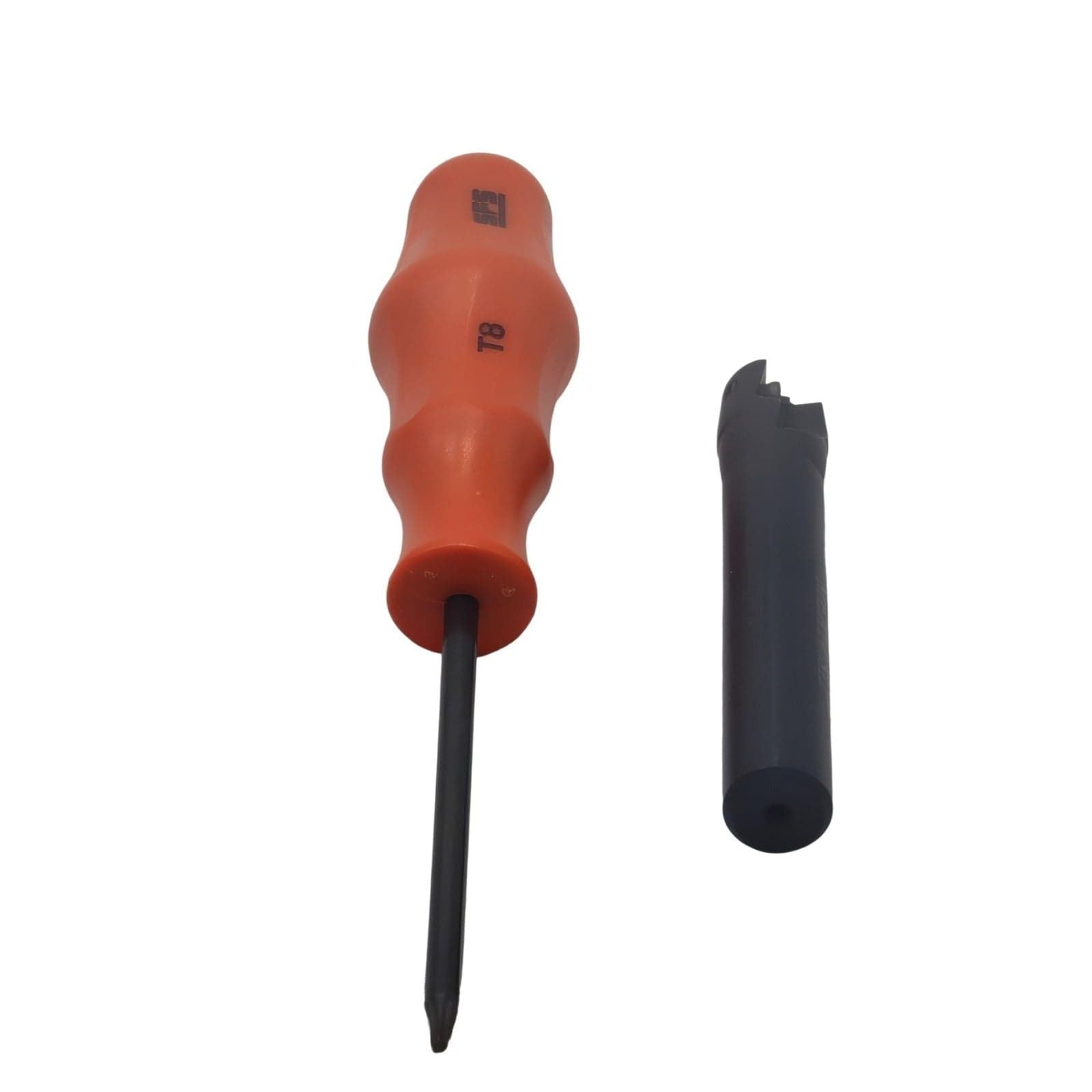

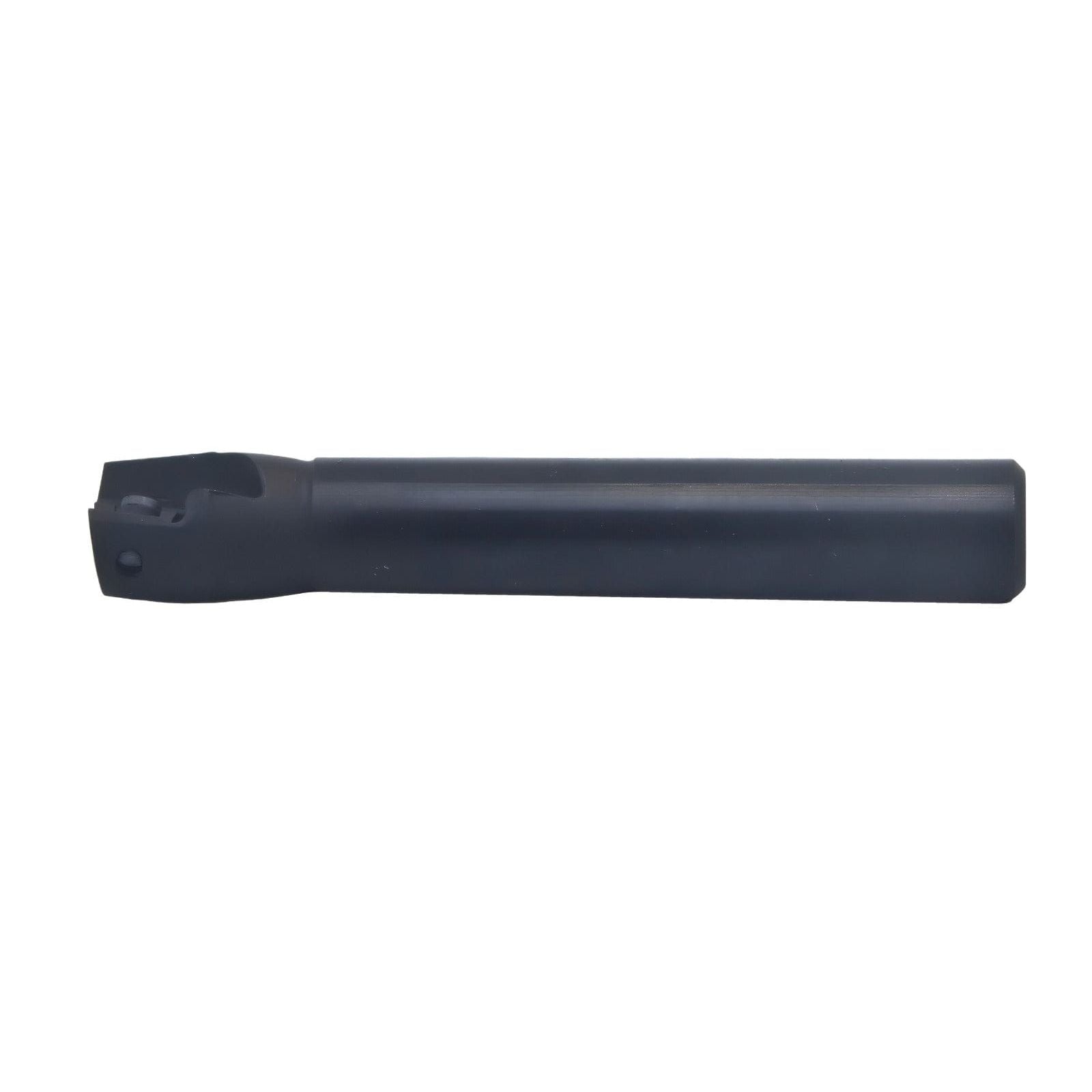

Kyocera MEA14-S12 – Ø14 mm Indexable End Mill (THN00140)
$199.39
Zu Produktinformationen springen
Kyocera MEA14-S12 – Ø14 mm Indexable End Mill (THN00140)
$199.39
Kyocera MEA14-S12 – Ø14 mm Indexable End Mill (THN00140)
The Kyocera MEA14-S12 is a precision indexable end mill designed for efficient shoulder and contour milling applications. With a cutter diameter of Ø14 mm and a 12 mm cylindrical shank, this compact tool provides excellent rigidity and balance for high-accuracy machining in small to medium-sized components. It accommodates 2 inserts and features a total length (OAL) of 100 mm and a recess (LDN) of 25.0 mm—ideal for smooth chip evacuation and stable cutting performance in tight setups.
Key Features & Benefits
• Ø14 mm diameter toolholder for fine precision milling.
• 2-insert configuration—delivers stable cutting and reduced vibration.
• Total length 100 mm and recess 25.0 mm—optimized for compact milling setups.
• Cylindrical shank Ø12 mm—fits standard collet or end-mill holders.
• Non-coolant-through design for simplified setup and reduced maintenance.
Technical Specifications
Item No: THN00140
Diameter (DC): Ø14 mm
Number of Inserts: 2
Total Length (OAL): 100 mm
Recess (LDN): 25.0 mm
Shank Diameter (DCON): Ø12 mm
Shank Type: Cylindrical
Internal Coolant: No
