Hepyc Drill HSS DIN338N 17.50mm – Reduced Shank
$68.55

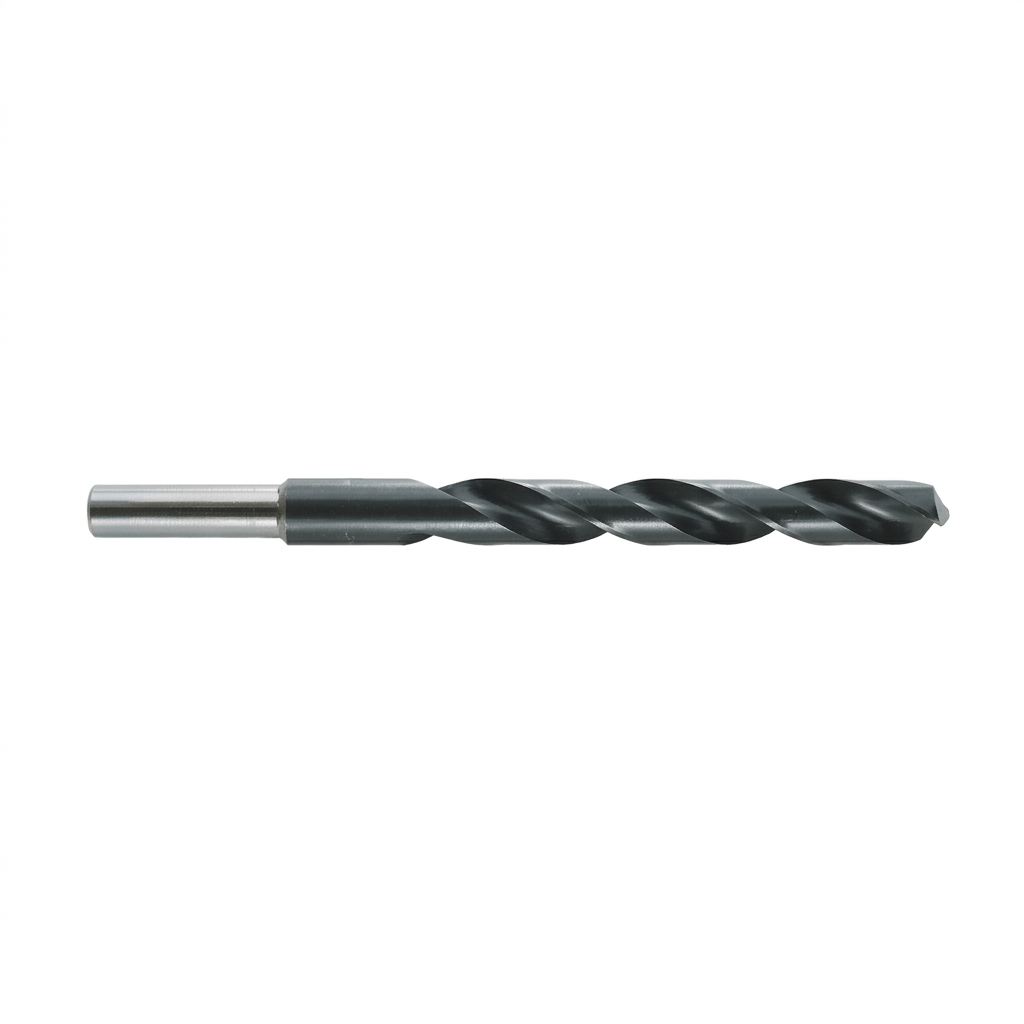

Hepyc Drill HSS DIN338N 17.50mm – Reduced Shank, 118° Point
The Hepyc HSS DIN 338N Jobber Drill Bit is manufactured from premium high speed steel (HSS) to deliver outstanding durability and precision for general-purpose drilling applications. Built to DIN 338N standards, this short series drill features a reduced shank design, allowing larger diameter drilling while maintaining compatibility with standard drill chucks.
Designed with a precision-ground 118° point and a 30° helix, this drill provides accurate centering, smooth cutting action, and efficient chip evacuation. It is ideal for drilling soft magnetic steels, construction steels, case-hardening steels, and unalloyed or alloyed carbon steels with tensile strengths up to 800 N/mm².
Key Features & Benefits:
- Premium HSS high speed steel construction
- Manufactured to DIN 338N standard
- Jobber series short length drill bit
- 118° point angle for precise drilling
- 30° helix for improved chip evacuation
- Reduced shank design for versatile machine compatibility
- Suitable for steels up to 800 N/mm² tensile strength
- Ideal for workshop, maintenance, and industrial applications
Technical Specifications:
- SKU: 11040001750
- Drill Diameter: 17.50mm
- Overall Length (L1): 191mm
- Flute Length (L2): 130mm
- Material: High Speed Steel (HSS)
- Standard: DIN 338N
- Point Angle: 118°
- Helix Angle: 30°
- Series: Jobber Series
- Shank Type: Reduced Shank
- Pack Quantity: 1 Piece
