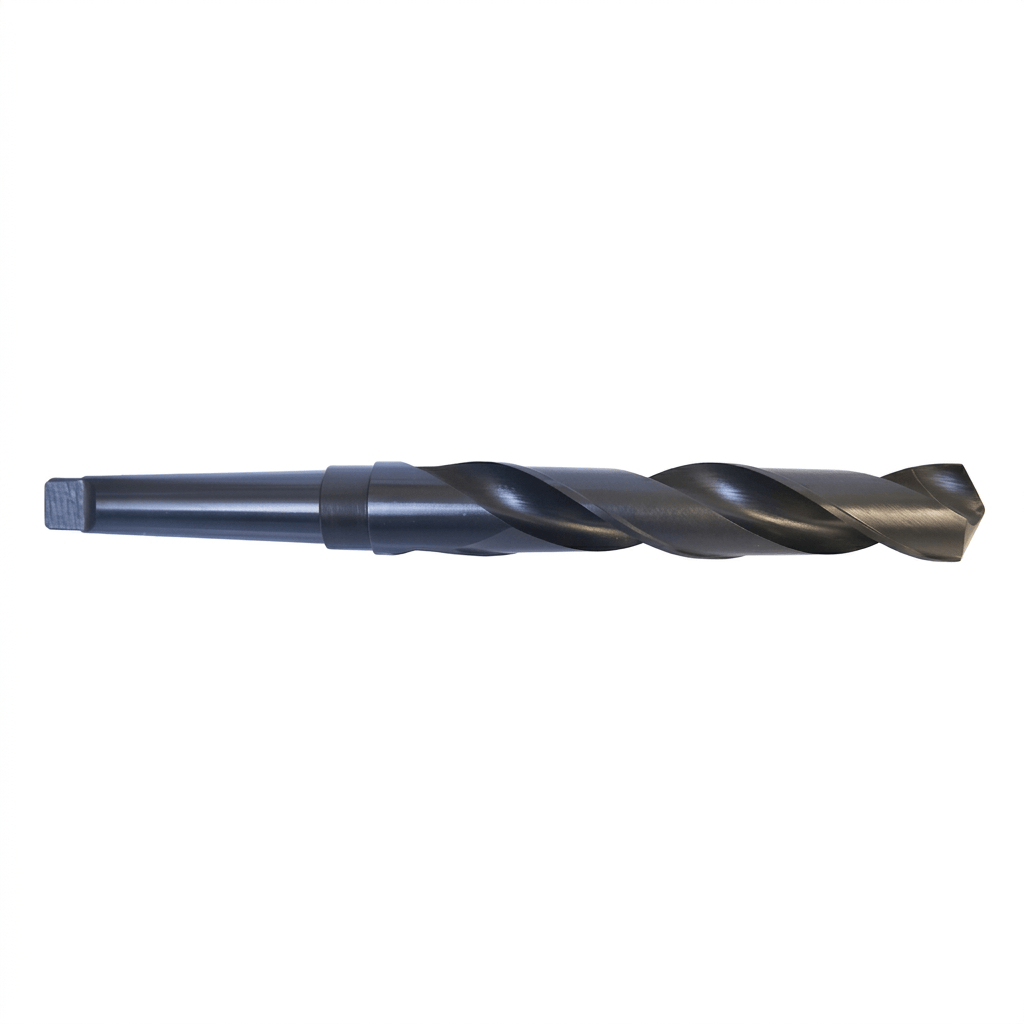

Hepyc 7/8" HSS Morse Taper Shank Drill MT2 DIN 345

Hepyc Drill HSS DIN345N 7/8" – Taper Shank, 118° Point

Heavy-duty HSS taper shank drill manufactured to DIN345N standards for precise drilling in steel, cast iron, and non-ferrous materials. The short series design provides superior rigidity and stability, reducing vibration and improving drilling accuracy in demanding workshop, maintenance, and industrial machining applications.

Manufactured from premium High Speed Steel (HSS), this drill delivers excellent wear resistance, toughness, and long service life. The precision-ground 118° point ensures accurate centering and efficient penetration, while the 30° helix angle promotes smooth chip evacuation and reliable cutting performance. The Morse taper shank provides secure spindle engagement and dependable torque transmission during heavy-duty drilling operations.

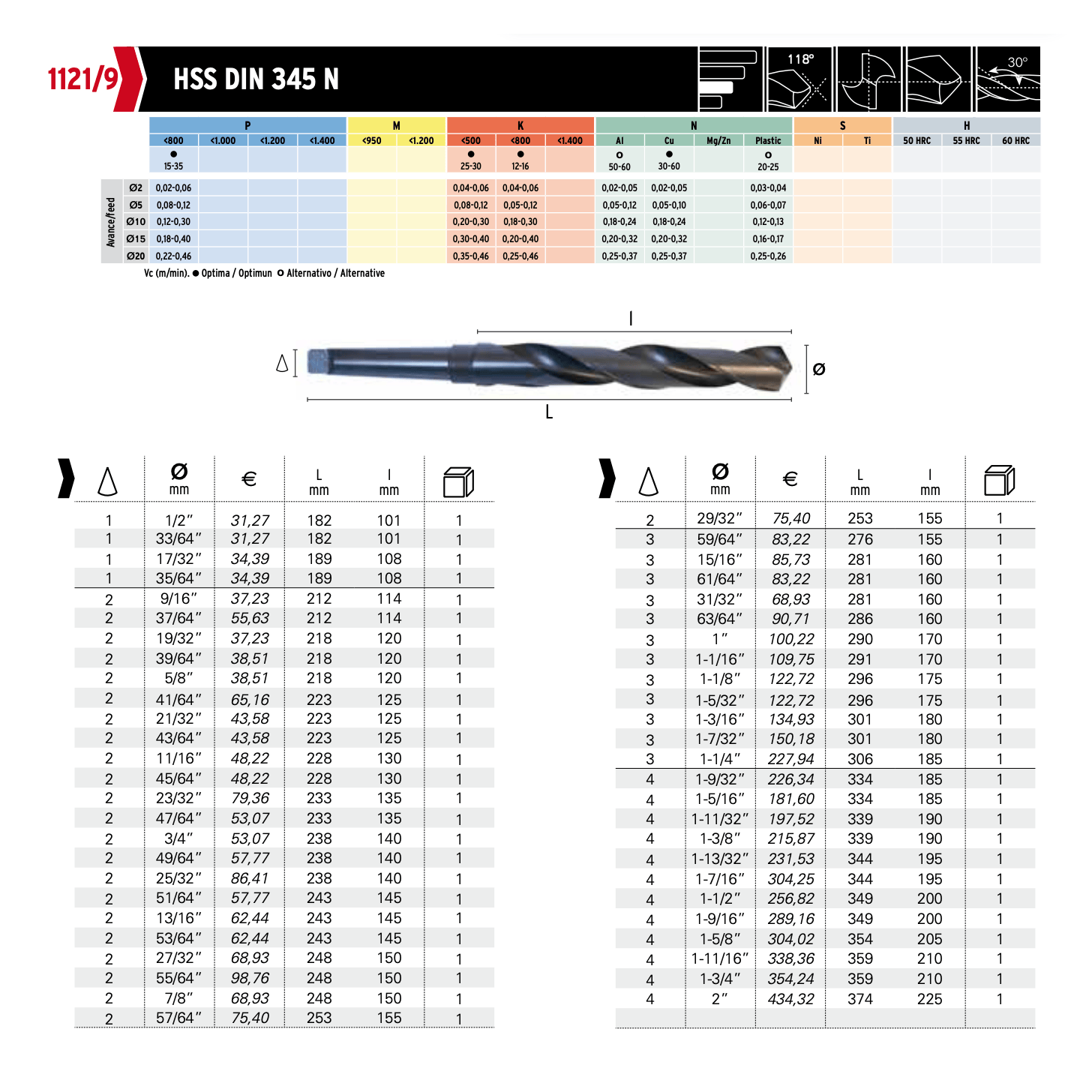

Specifications:

• Diameter: 7/8" (22.23mm)

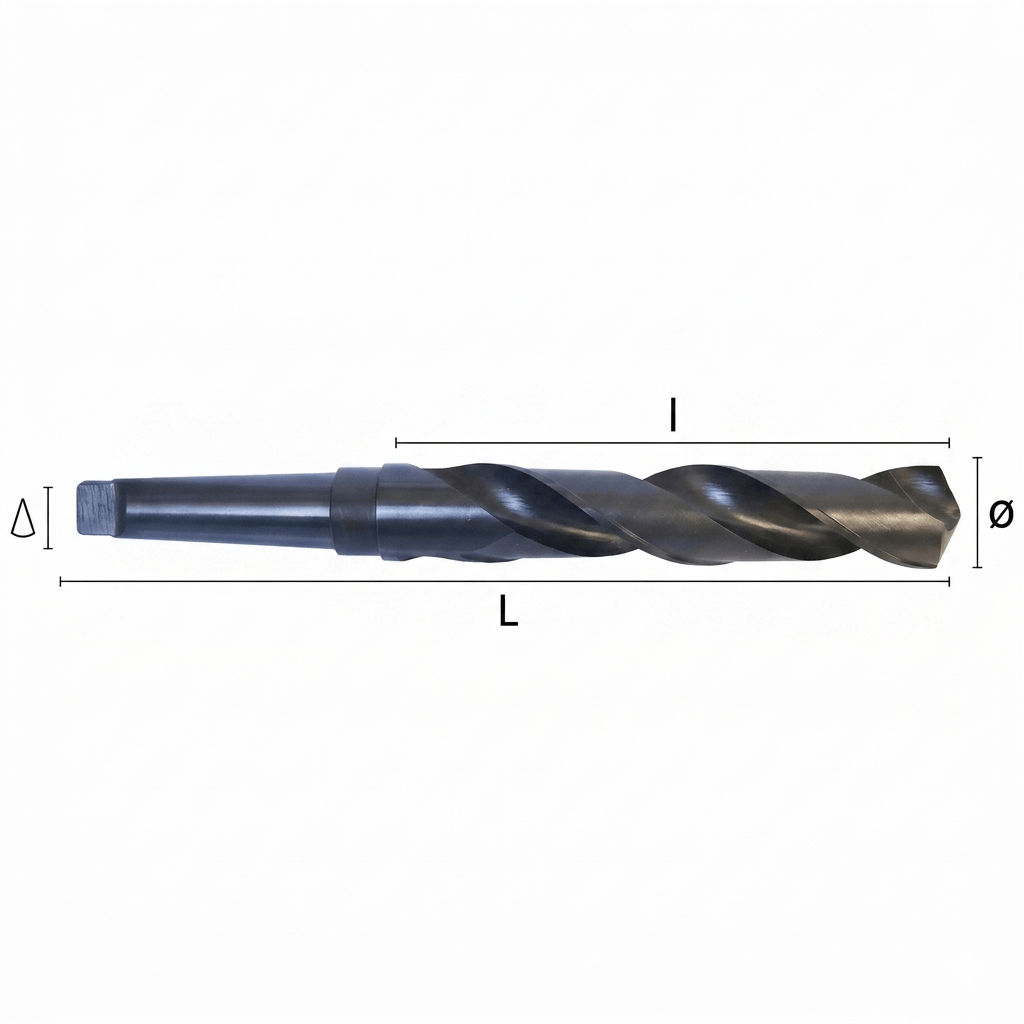

• Overall Length (L): 248mm
• Flute Length (l): 150mm
• Morse Taper Shank: MT2 (CM2)
• Standard: DIN345N
• Material: High Speed Steel (HSS)
• Point Angle: 118°
• Helix Angle: 30°
• Series: Short Series
• SKU: 11219000708

Features:

• Premium High Speed Steel construction for extended tool life
• Manufactured to DIN345N specifications
• 118° point geometry for precise hole positioning
• 30° helix for efficient chip evacuation
• Short series design for enhanced rigidity and reduced vibration
• Morse taper shank for secure machine mounting
• Suitable for steel, cast iron, aluminium, copper, and plastics

Hepyc precision drilling tools are engineered to provide consistent performance, excellent hole quality, and dependable results across a wide range of industrial, engineering, and maintenance drilling applications.
