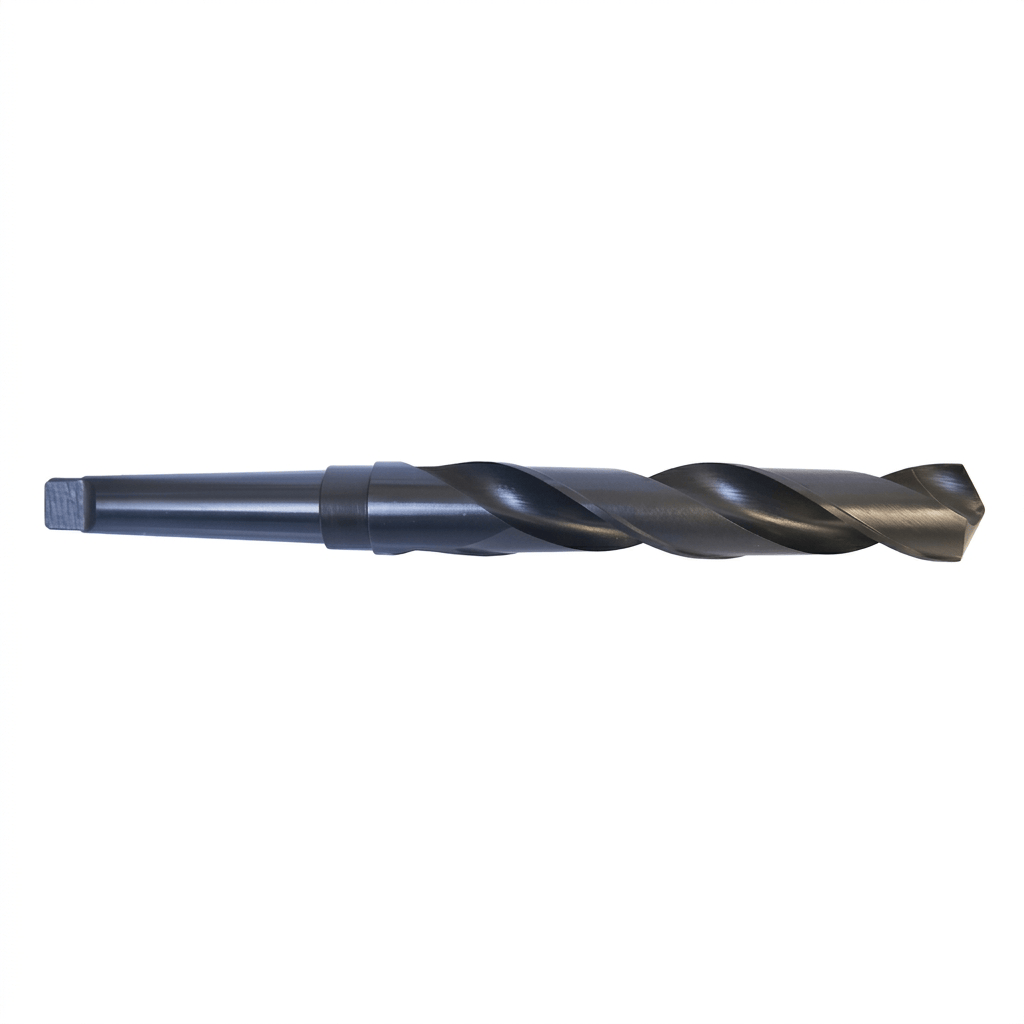

Hepyc 45/64" HSS Morse Taper Shank Drill MT2 DIN 345
$84.04
Hepyc Drill HSS DIN345N 45/64" – Taper Shank, 118° Point
The Hepyc 45/64" HSS Taper Shank Drill DIN345N is engineered for precision drilling in demanding industrial and workshop applications. Manufactured from premium High Speed Steel (HSS), this short series drill bit delivers excellent wear resistance, strength, and dependable cutting performance. The Morse taper shank ensures secure machine holding and efficient power transmission for stable and accurate drilling operations.
Designed with a 118° point angle and a 30° helix, this drill provides smooth penetration, precise centering, and effective chip evacuation. It is ideal for drilling soft magnetic steels, construction steels, case-hardening steels, and unalloyed and alloyed carbon steels with tensile strengths up to 800 N/mm².
Key Features & Benefits
- 45/64" HSS taper shank drill bit
- Manufactured to DIN345N standard
- Premium High Speed Steel (HSS) construction
- 118° point angle for accurate drilling
- 30° helix for efficient chip removal
- Short series design for increased rigidity
- Morse Taper Shank: CM2
- Excellent wear resistance and long service life
- Suitable for steels up to 800 N/mm² tensile strength

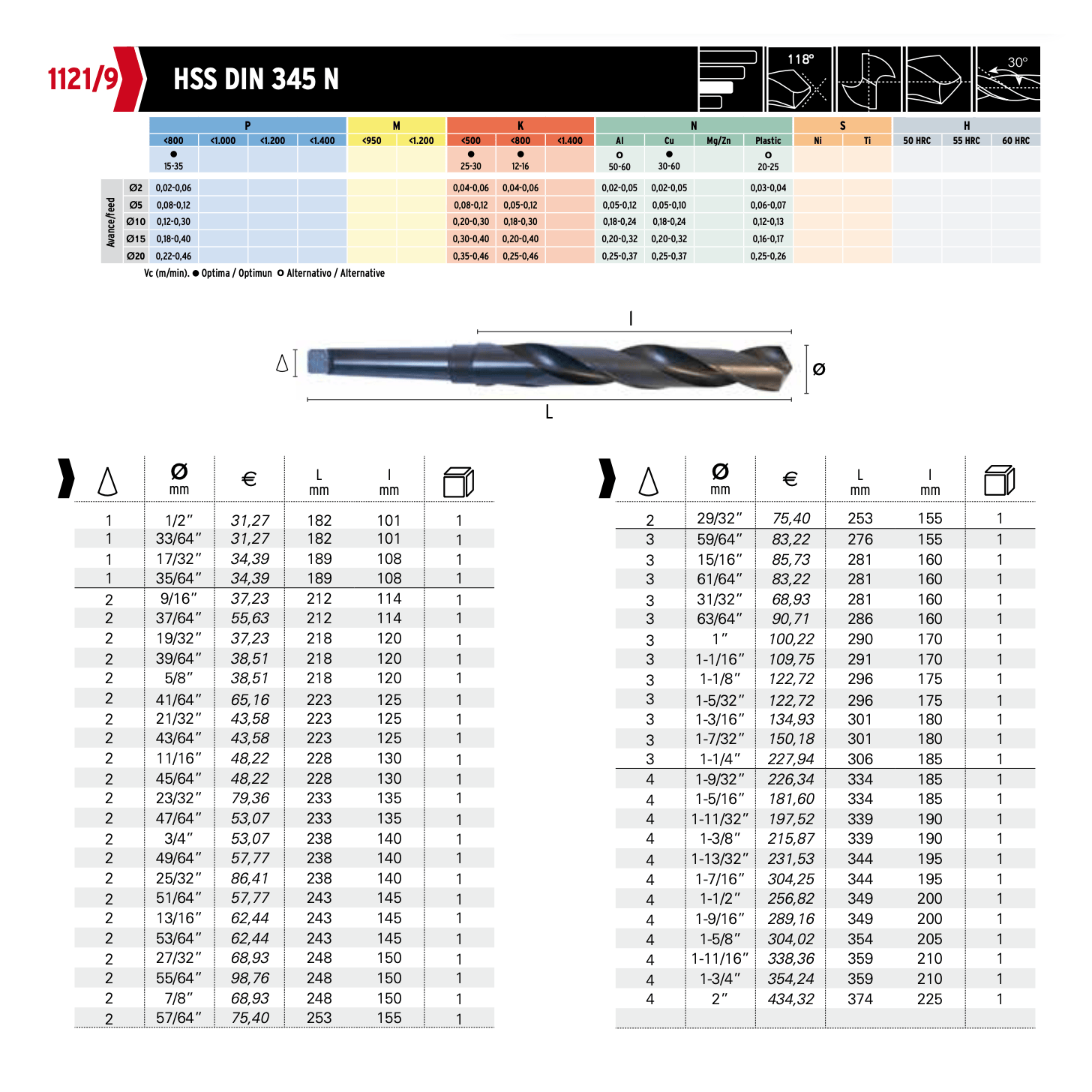

Technical Specifications
- SKU: 11219004564
- Diameter: 45/64"

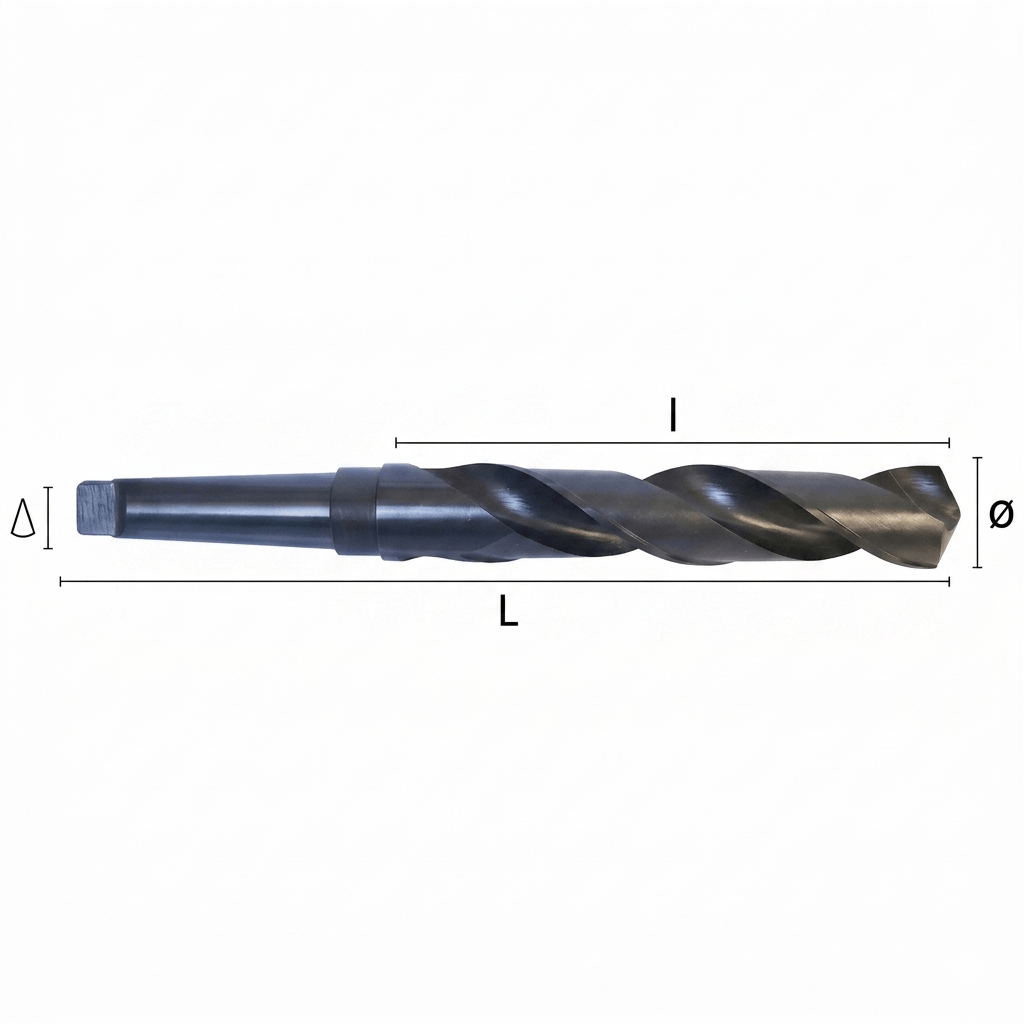

- Overall Length (L): 228mm
- Flute Length (I): 130mm
- Morse Taper Shank: CM2
- Material: High Speed Steel (HSS)
- Standard: DIN345N
- Point Angle: 118°
- Helix Angle: 30°
- Series: Short Series
- Pack Quantity: 1 Piece
