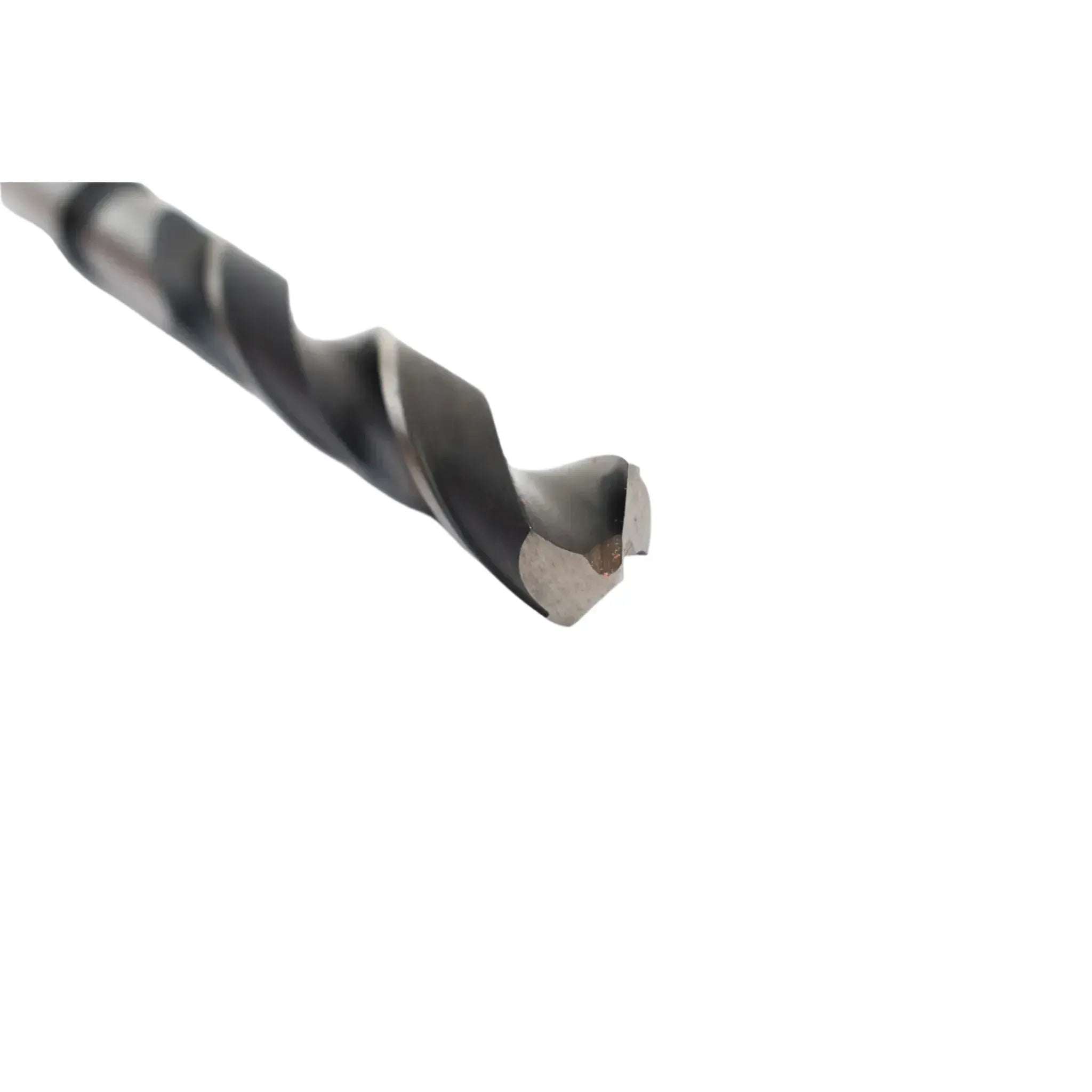

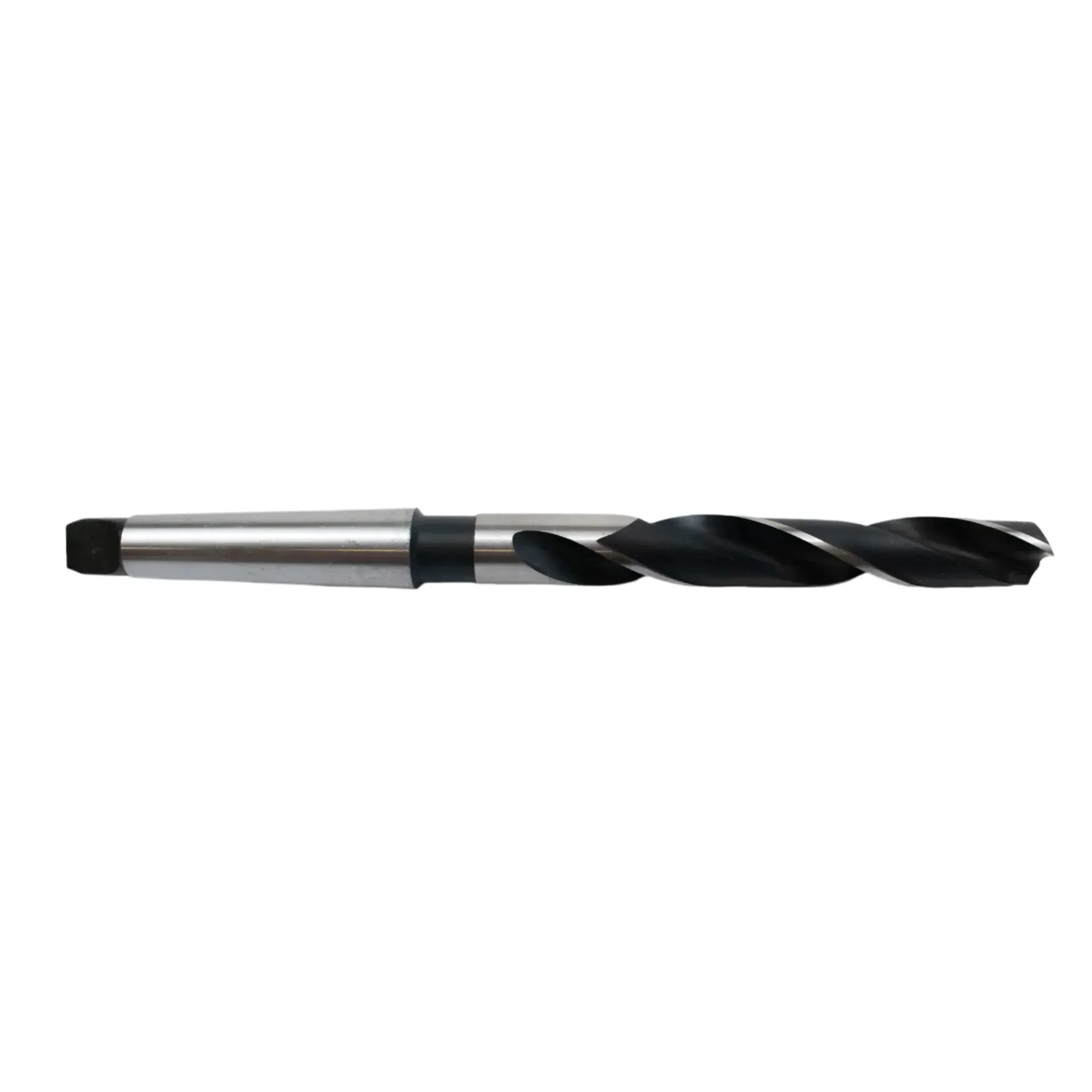

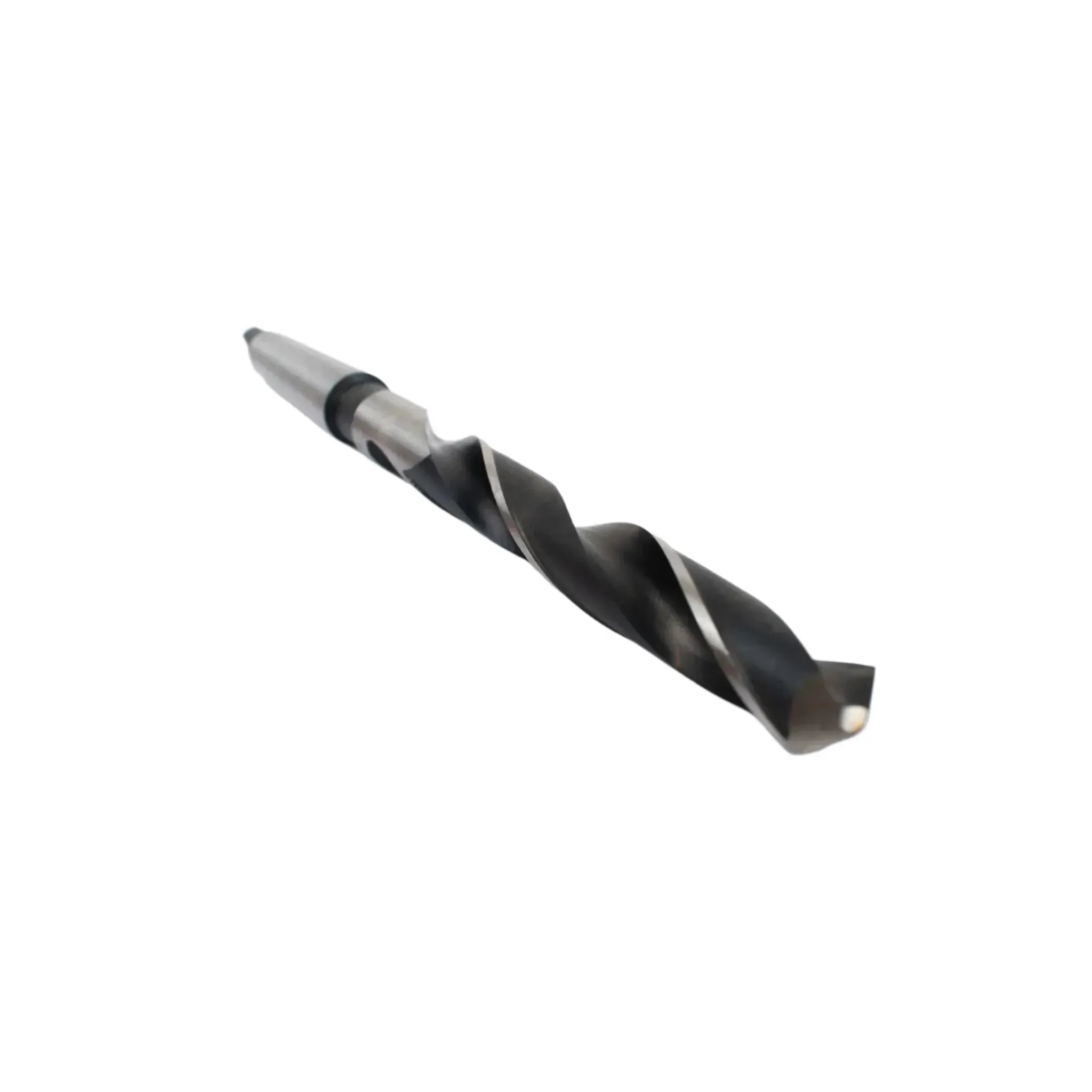

Hepyc 16mm HSS Morse Taper Shank Drill MT2 DIN 345

Hepyc Drill HSS DIN345N 16.0mm – Taper Shank, 118° Point

High-performance HSS taper shank drill manufactured to DIN345N standards for precision drilling in steel, cast iron, non-ferrous metals, and general engineering materials. The short series design provides increased rigidity and stability, making it ideal for accurate hole production in machine shop and industrial applications.

Manufactured from premium High Speed Steel (HSS), this drill delivers excellent wear resistance, toughness, and cutting performance. The 118° point geometry ensures efficient penetration and reliable chip evacuation, while the Morse Taper shank provides secure spindle engagement for heavy-duty drilling operations.

Specifications:

• Diameter: 16.0mm
• Overall Length (L): 218mm
• Flute Length (l): 120mm
• Morse Taper Shank: MT2 (CM2)
• Standard: DIN345N
• Material: High Speed Steel (HSS)
• Point Angle: 118°
• Helix Angle: 30°
• Series: Short Series
• SKU: 11210001600

Features:

• Premium HSS construction for long tool life
• DIN345N taper shank drill design
• 118° point for efficient drilling performance
• 30° helix improves chip evacuation
• Short series for enhanced rigidity and accuracy
• Suitable for manual and machine drilling applications

Hepyc precision drilling tools are engineered to deliver reliable performance, dimensional accuracy, and extended service life across demanding industrial and engineering applications.
