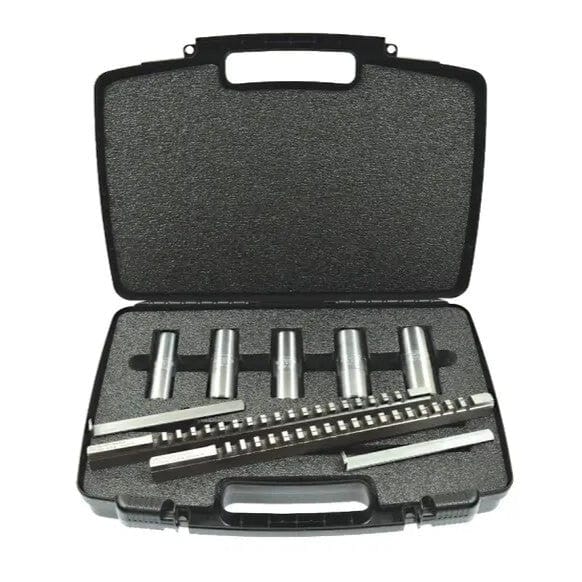

Hassay Savage Imperial Dura-Case Broach Kit #B,C-15319

Imperial Dura-Case Broach Kit

The Hassay Savage Imperial Dura-Case Broach Kit is a comprehensive and organized cutting solution for producing precise keyways in machined holes. Designed for use with arbor or hydraulic presses, this set includes high-speed steel broaches and precision-matched bushings in a durable case. Built for efficiency, the broaches in this kit are ideal for cutting into a wide range of ferrous and non-ferrous materials such as steel, cast iron, and plastics. The set offers 18 different cutting combinations, making it perfect for machine shops that value versatility and clean results.

Key Features:

• Part Number: 15319
• Size Type: Fractional
• Style: B,C
• Tool Material: High-Speed Steel (HSS)
• Hardness: 60 RC
• Minimum Length of Cut: 19/64", 25/64"
• Maximum Length of Cut: 1-11/16", 2-1/2"
• Broach Sizes: 1/8"-B, 3/16"-B, 1/4"-C, 3/8"-C
• Bushing Diameter: 9/16"-B, 11/16"-B, 13/16"-B, 15/16"-C, 1-1/16"-C, 1-3/16"-C, 1-5/16"-C, 1-7/16"-C, 1-9/16"-C
• Includes: 4 Broaches, 9 Bushings
• Number of Combinations: 18
• Case Material: Plastic
• Measurement Type: Inch
• First Choice For: Steel
• Workpiece Material Range: Steel, Non-Ferrous Metals, Cast Iron, Plastics
• Compliance: Prop. 65 Compliant

The Hassay Savage Imperial Dura-Case Broach Kit is an essential toolset for shops requiring precision, organization, and versatility in keyway cutting. Perfect for both routine jobs and complex applications, this all-in-one set helps ensure fast, accurate cuts with every use.
