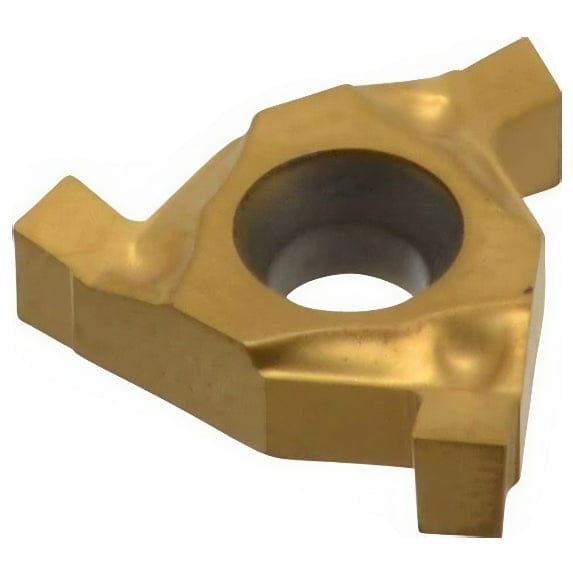

Carmex Internal/External Snap Ring Grooving Insert 16mm / R1.20 / 16 IR/EL R1.20 BXC

Carmex 16IR/EL R1.20 BXC – Grooving Insert for Snap Ring (Internal / External)

The Carmex 16IR/EL R1.20 BXC is a precision-engineered grooving insert designed for machining snap ring grooves in both internal and external profiles. Built with a robust carbide substrate and advanced BXC coating, it provides exceptional wear resistance, long tool life, and stable performance across a wide range of materials.

This versatile insert is compatible with standard Carmex threading toolholders and supports both right- and left-hand operations, minimizing tooling requirements. Its optimized geometry ensures accurate groove dimensions, efficient chip evacuation, and superior surface finish when cutting snap ring grooves in steels, stainless steels, cast irons, and non-ferrous materials.

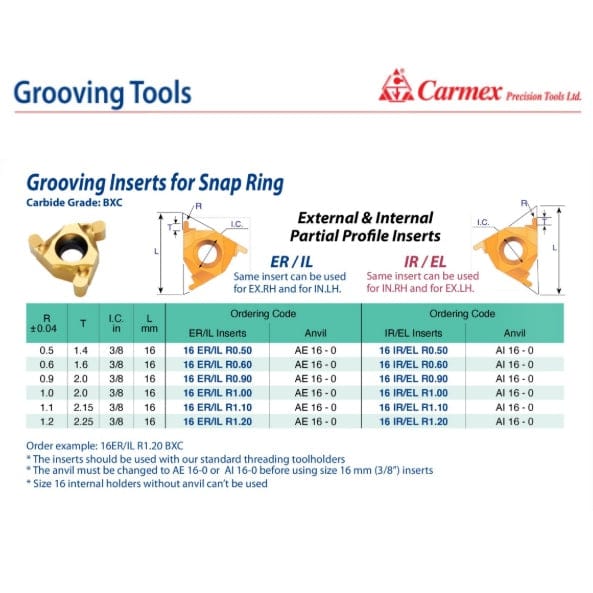

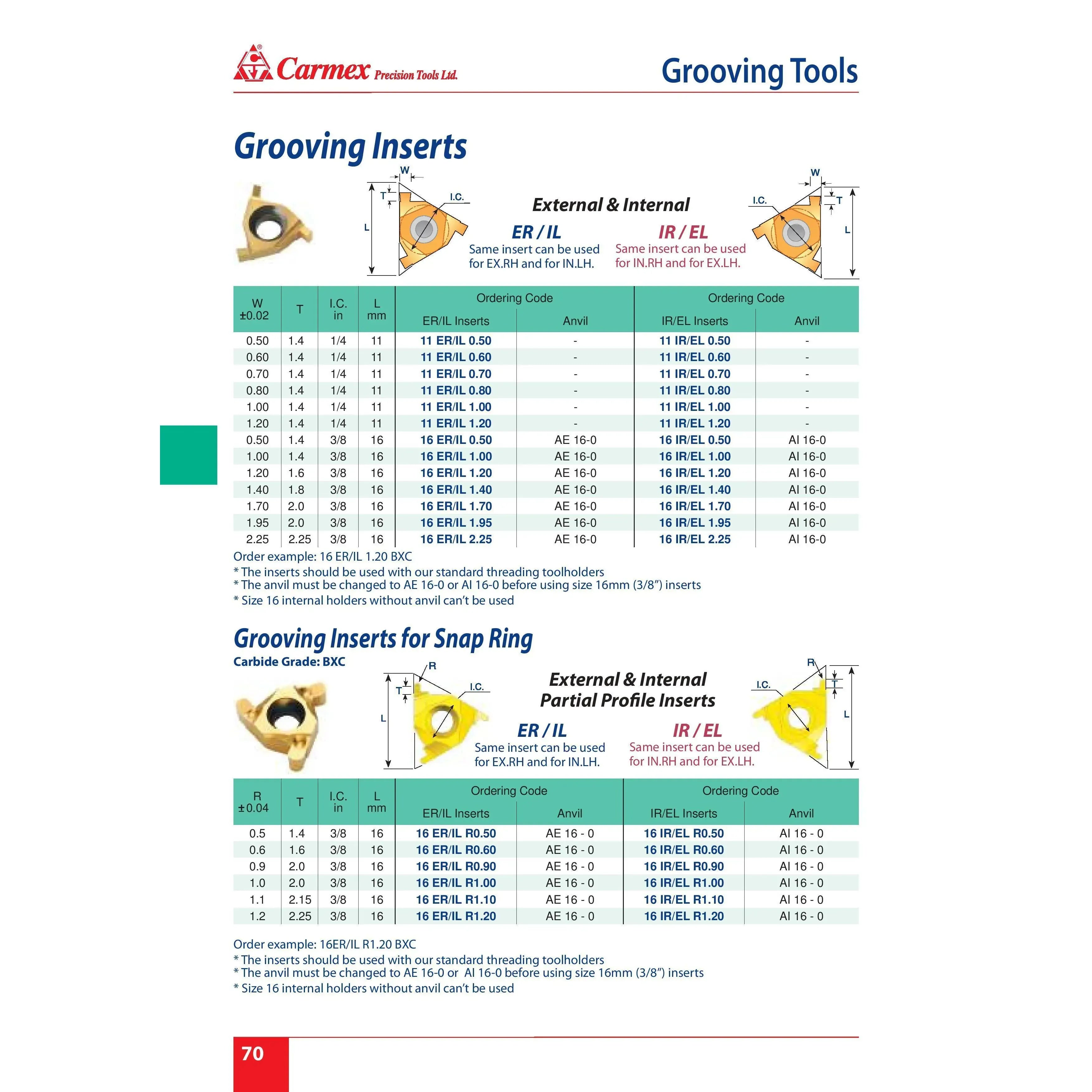

Key Features & Specifications:

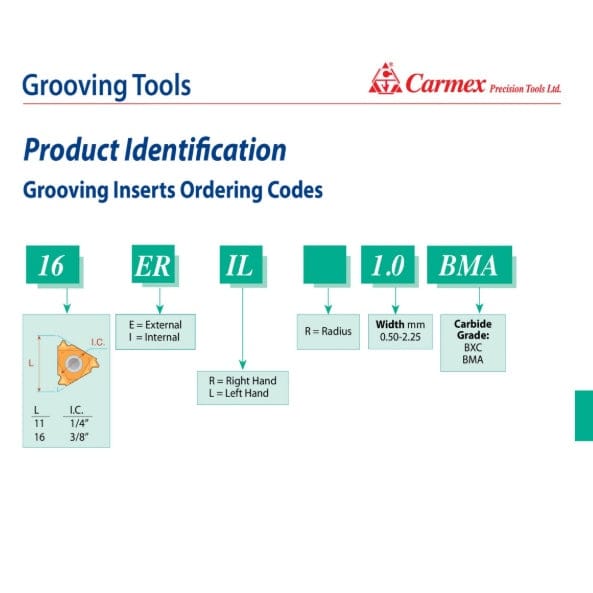

• Ordering Code: 16IR/EL R1.20 BXC
• Insert Type: Internal / External
• Profile: Snap Ring Groove
• Hand: Right or Left Hand
• R (mm): 1.20
• T (mm): 2.25
• I.C. (in): 3/8"
• L (mm): 16
• Carbide Grade: BXC
• Compatible Anvil: AI 16-0
• Applications: Snap Ring Groove Cutting for Internal & External operations
• Advantages: Dual-use insert | Excellent wear resistance | Smooth chip control | Long tool life | Precision groove accuracy

About Carmex:
Carmex Precision Tools Ltd. is a world leader in the manufacture of high-quality cutting tools for threading, grooving, and milling. Known for precision and innovation, Carmex products are trusted globally for consistent performance, reliability, and productivity in the most demanding machining environments.
