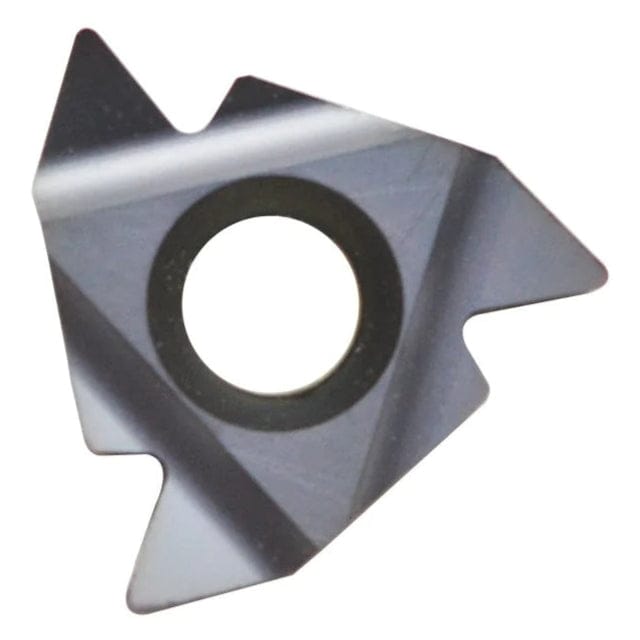

Carmex External Right Hand UN Unified Thread Turning Insert 16mm / 18 TPI / 16 ER 18 UN BMA

External Thread Turning Insert – UN Full Profile 60°

The UN Full Profile External Thread Turning Insert is designed for high-precision threading of Unified thread forms (UNC, UNF, UNEF, UNS). With a 60° profile and 18 TPI pitch, this insert forms the full thread geometry—crest, root, and flanks—in a single operation, delivering accuracy and strength in external threading applications.

Manufactured from robust BMA-grade carbide, this insert provides a strong balance of wear resistance and toughness, making it suitable for machining steel and alloy components. The refined X and Y dimensions contribute to smooth chip evacuation, stable cutting action, and long tool life in high-volume or high-precision environments.

Key Features:

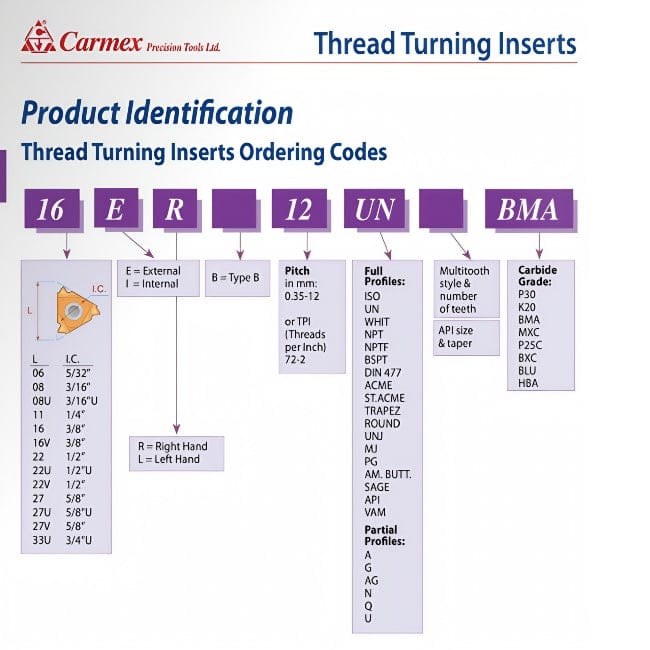

• Ordering Code: 16 ER 18 UN BMA

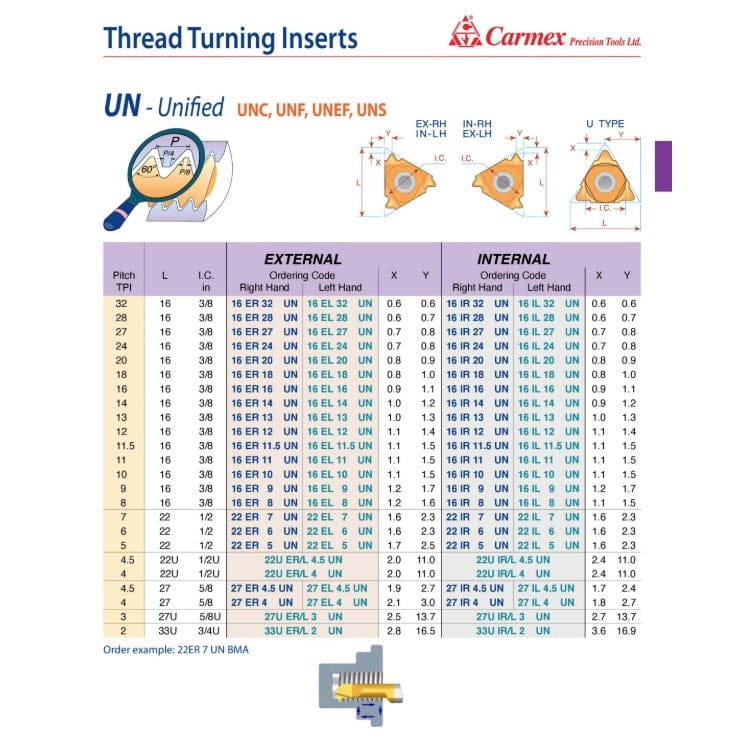

• Thread Type: UN (Unified Thread Standard – 60°)
• Profile: Full Form
• Insert Type: External
• Hand: Right Hand
• L: 16 mm
• I.C.: 3/8"
• Pitch: 18 TPI
• X: 0.8 mm
• Y: 1.0 mm

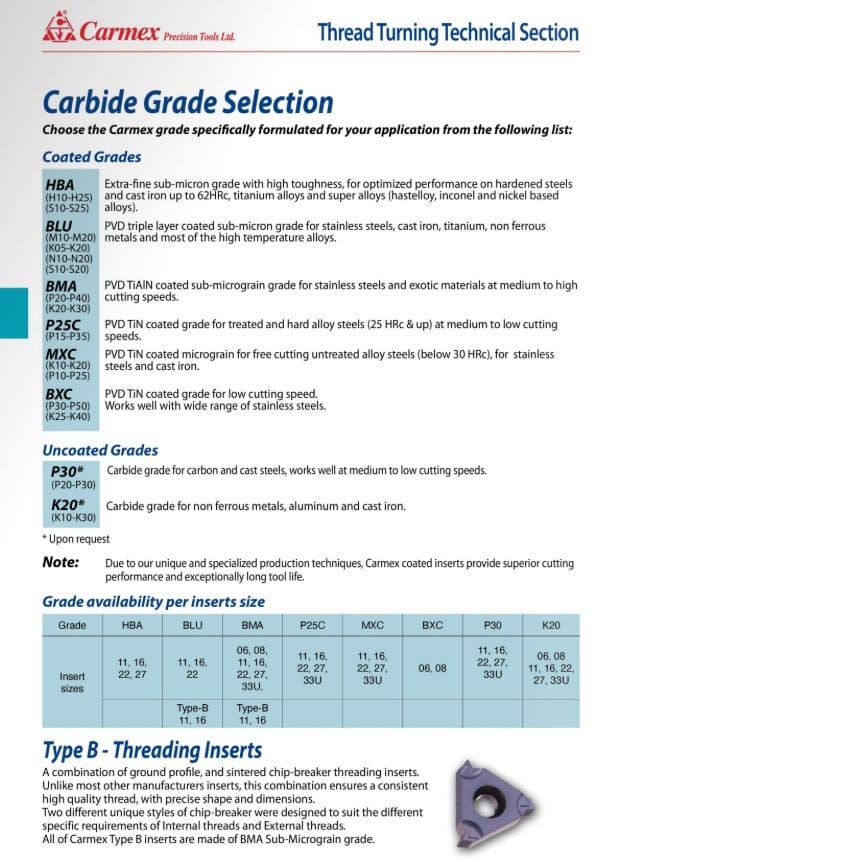

• Carbide Grade: BMA
• Applications: External Thread Turning for Unified Thread Standards
• Key Advantage: Full-profile threading with optimal balance of strength and wear resistance for general-purpose materials

Manufactured by Carmex Precision Tools Ltd.—a globally recognized leader in threading technologies—this insert is part of a complete product lineup including Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills. Carmex tools are trusted worldwide for their performance, precision, and reliability in demanding industrial applications.
