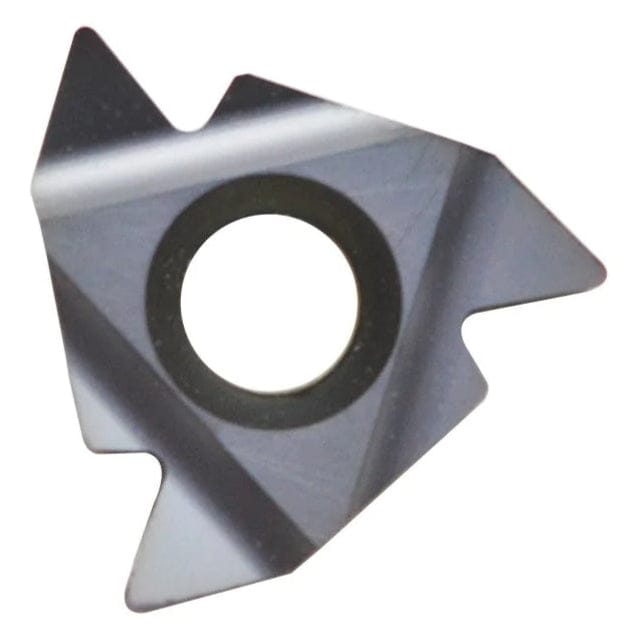

Carmex External Right Hand ACME Thread Turning Insert 6 TPI / 16 ER 6 ACME BMA

External Thread Turning Insert – ACME Full Profile

The 16 ER 6 ACME BMA is a high-precision external thread turning insert designed for cutting ACME thread profiles at a 6 TPI pitch. Engineered for applications requiring high load-bearing threads, this insert produces a 29° thread angle with consistent flank engagement for power transmission, linear motion, and other heavy-duty uses.

Made from tough BMA-grade carbide, this insert ensures high wear resistance and excellent edge stability during demanding machining operations. Note: A special holder is required for proper installation.

Key Features:

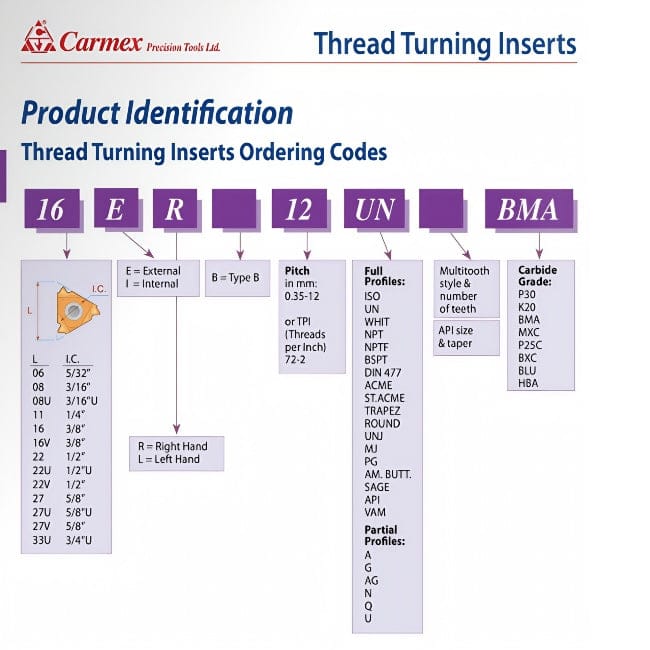

• Ordering Code: 16 ER 6 ACME BMA
• Thread Type: ACME
• Profile: Full Form
• Insert Type: External
• Hand: Right Hand

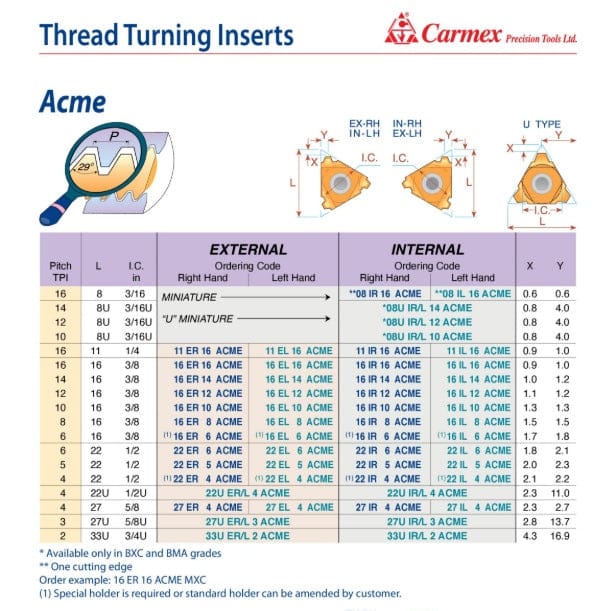

• L: 16 mm
• I.C.: 3/8"
• Pitch: 6 TPI
• X: 1.7 mm
• Y: 1.8 mm

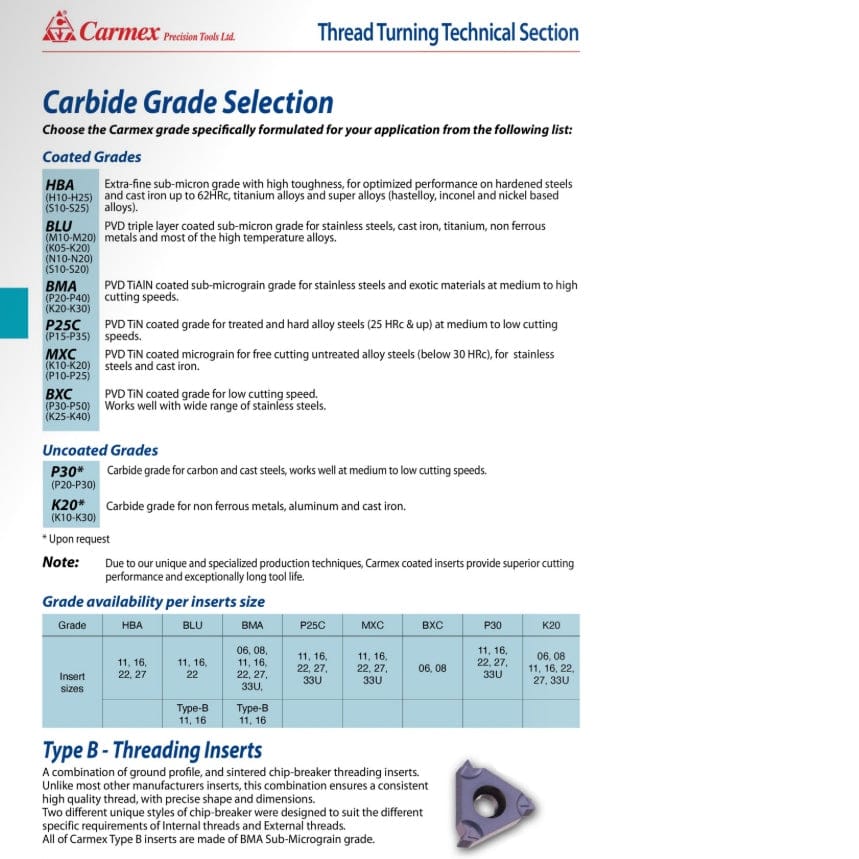

• Carbide Grade: BMA
• Applications: Lead screws, power transmission, heavy-duty threading
• Key Advantage: Full-profile ACME threading with high durability and accuracy

Manufactured by Carmex Precision Tools Ltd., a globally trusted manufacturer of threading solutions for turning and milling. Carmex provides advanced threading systems including Thread Turning Inserts.
