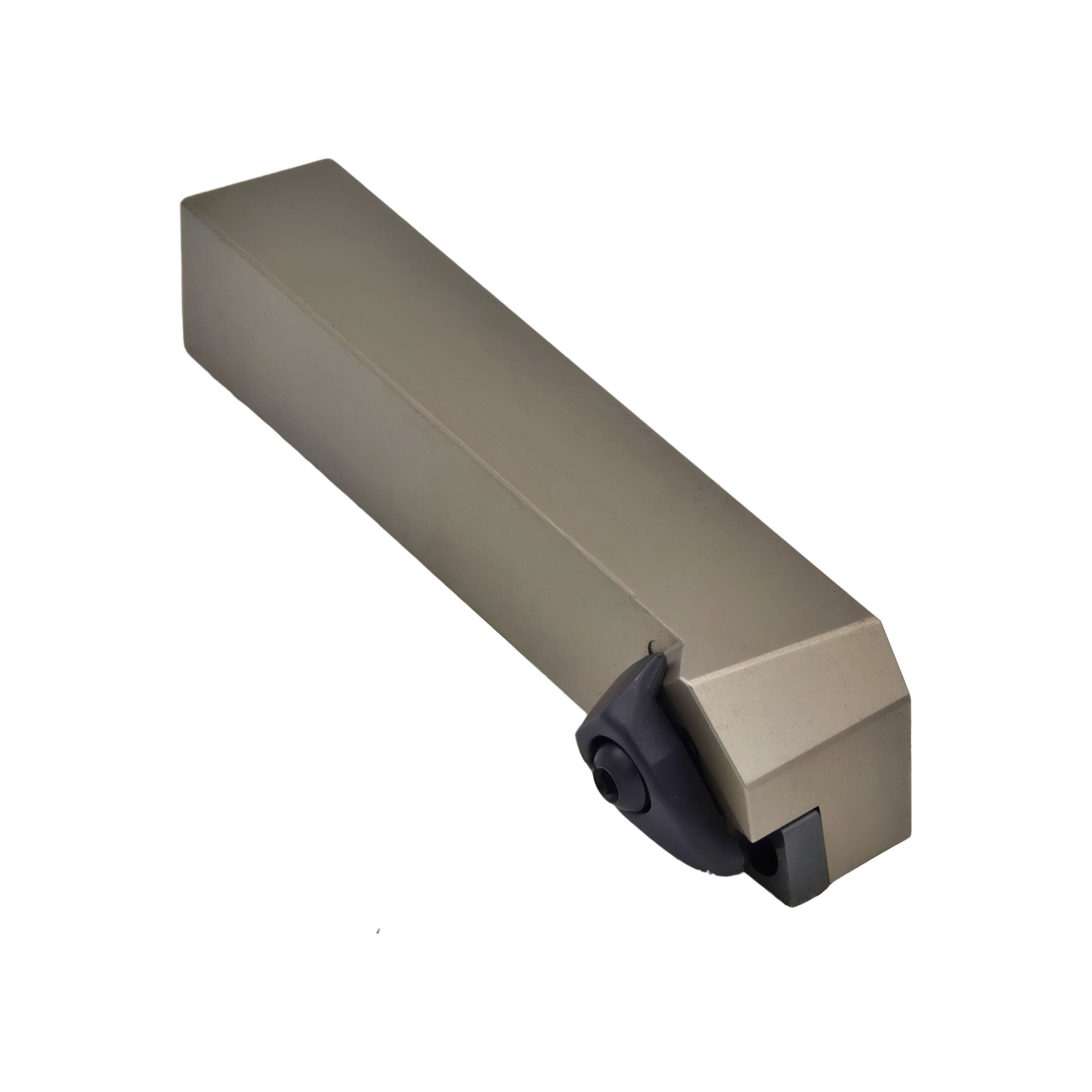

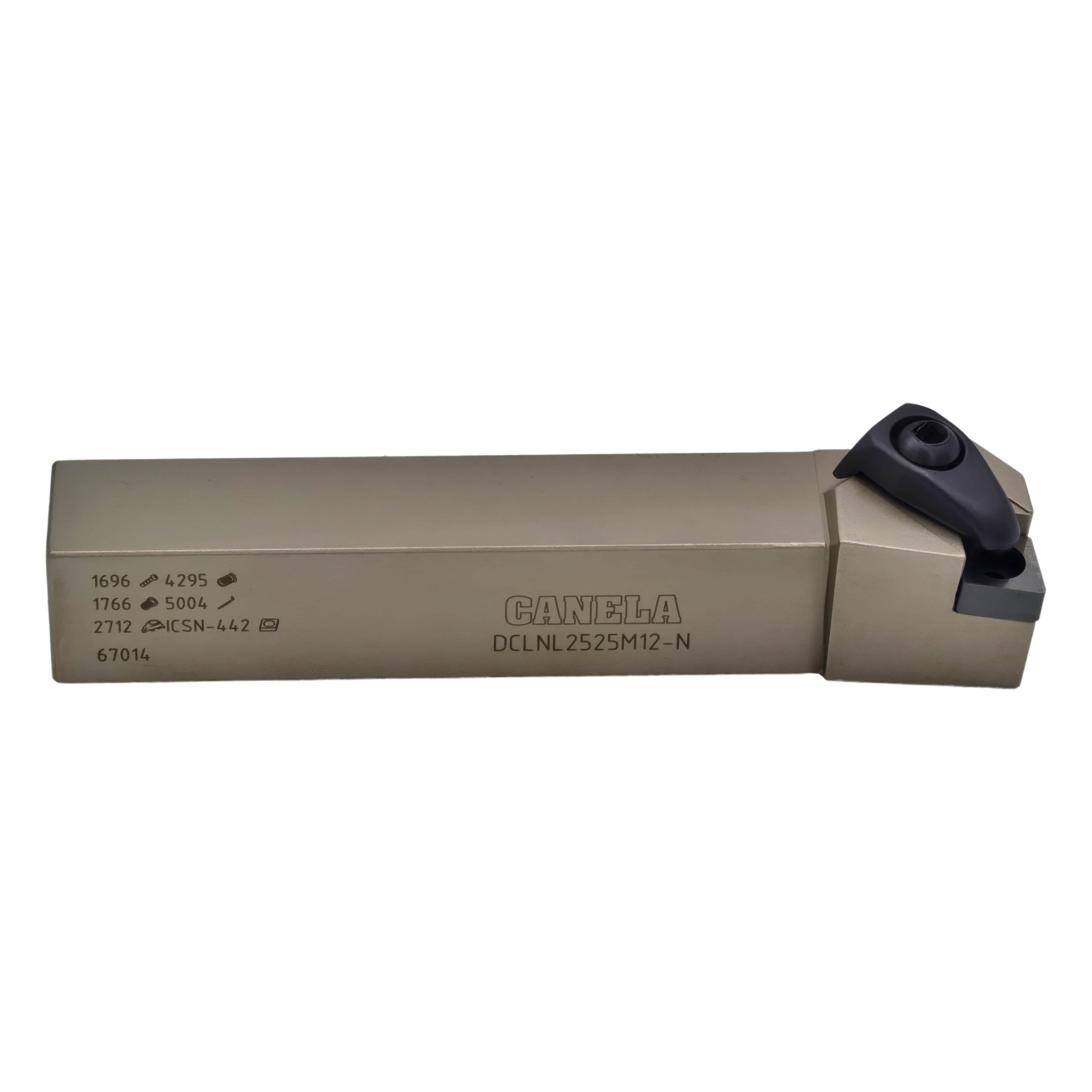

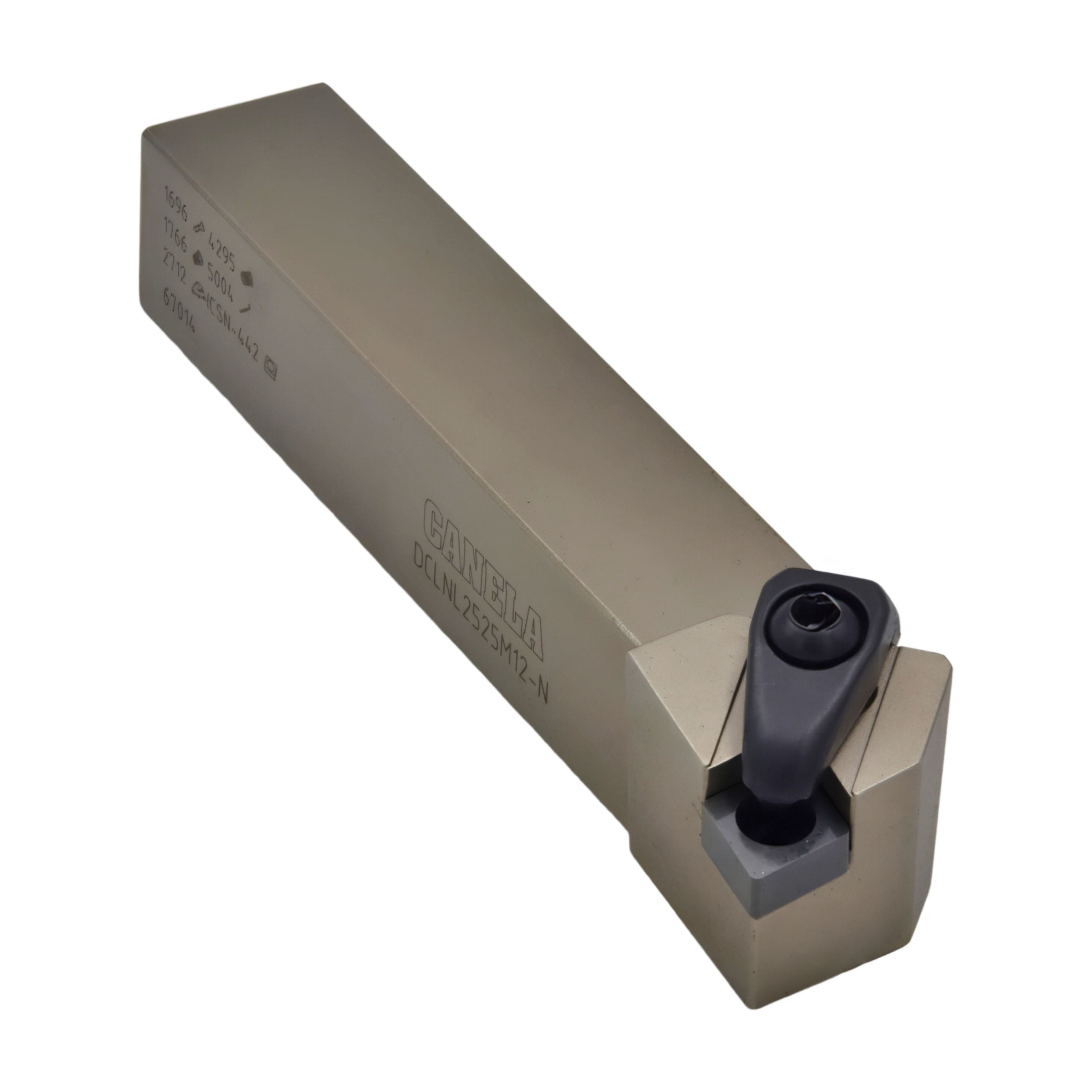

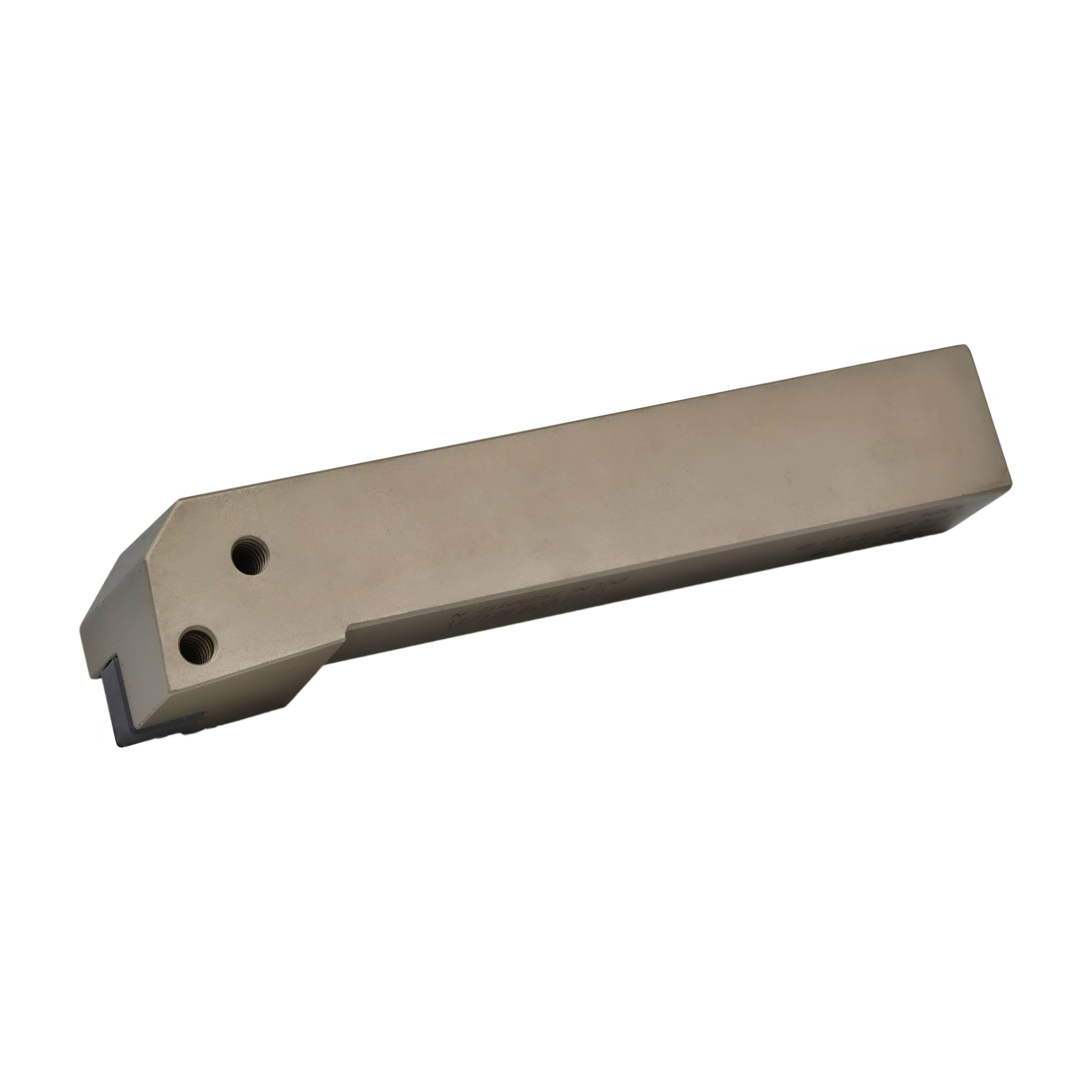

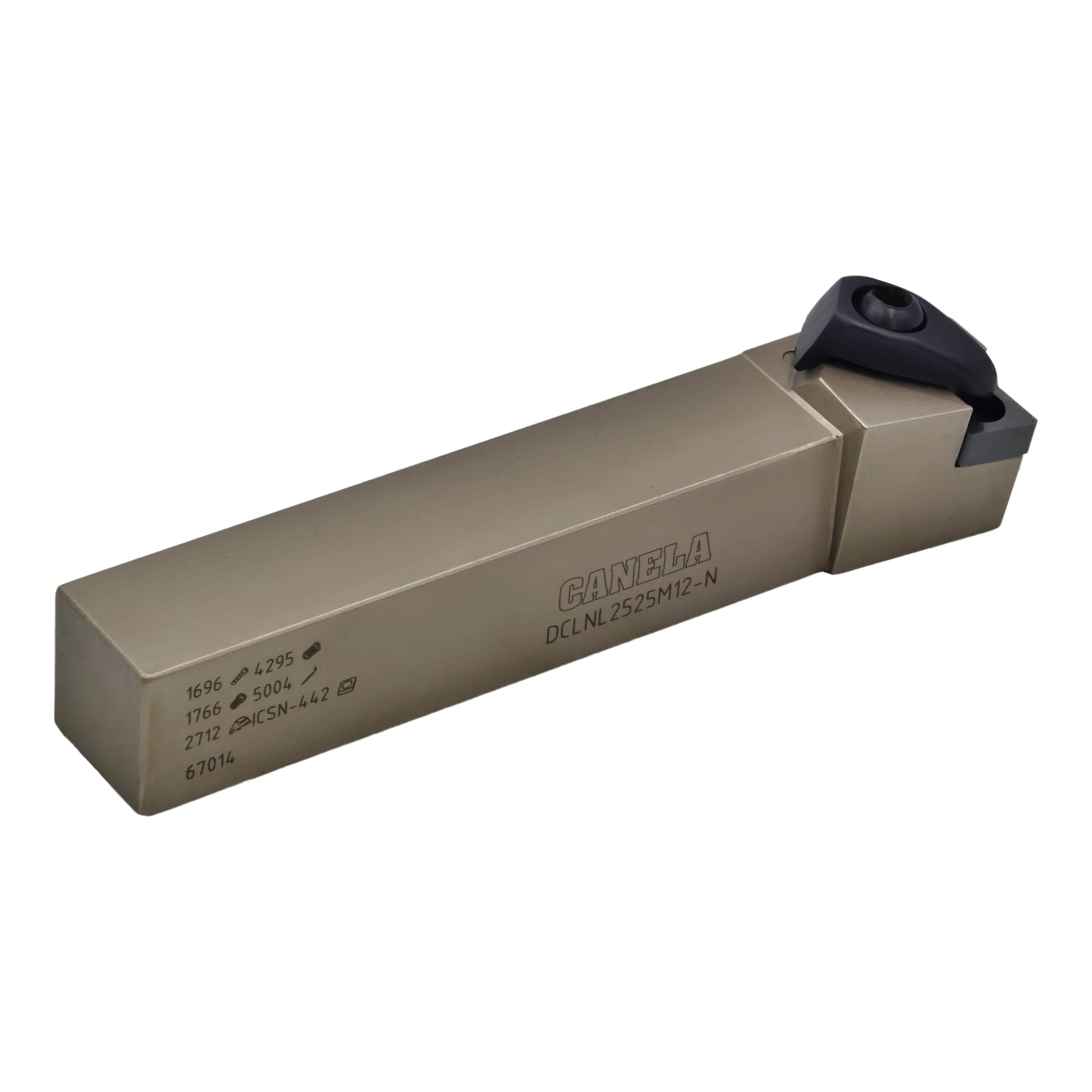

Canela Dimple Lock Turning Tool Holder DCLNL2525M12-N 25mm Shank
$155.76
External turning 2525 95°
Dimple lock multipurpose toolholder equipped with rhombic negative double-sided insert (angle 80º).
ISO standard tools perform most of the metalworking industry's machining. The applications range from finishing to roughing. As a full-line supplier of metalworking tools, Canela provides a full ISO range of tools and all standard geometries are supplied.
The ISO turning line provides a complete solution for all types of applications and materials, with innovative insert geometries combined with leading carbide grades designed to meet customer demands for tool life and productivity.
| Quality | Designation |
|---|---|
| Measurement System | Metric |
| Clamping method of insert | Dimple Lock |
| Category | External Turning |
| Connection Style | Square Shank |
| Back End Size | 25x25 |
| Holder Style | 95° |
| Insert Shape | C-Rhombic 80° |
| Clearance angle | Negative |
| Hand | Left |
| Coolant | No |
| Insert Code |
CN |
Using the chart within images, the relevant parts in the code are the 2nd and 4th letters. eg = DCLNL2525M12-N would refer to a CN insert style.
To know what size the insert should be it refers to the last two digits in the code - DCLNL2525M12-N meaning a CN-12 insert. The result being any insert starting with a CN will fit on the respective holder.
