Acrow ER25109 – ER25 Spring Collet (Ø10–9 mm Range, DIN6499)
$46.11
Acrow ER25109 – ER25 Spring Collet (Ø10–9 mm Range, DIN6499)

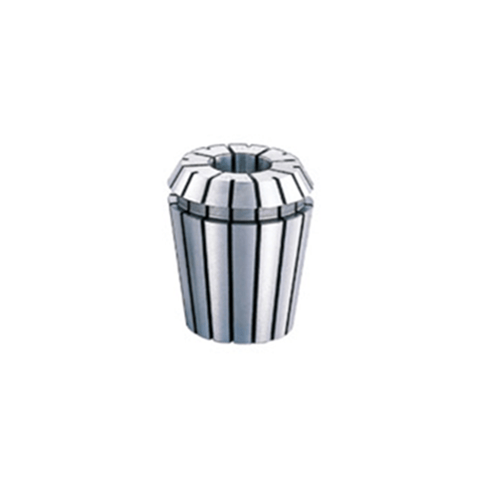

The Acrow ER25109 is a precision ER25 Spring Collet designed for clamping tools within the Ø10–9 mm diameter range. Manufactured to the DIN6499 standard, this collet provides reliable concentricity, strong clamping force, and excellent durability. Produced from hardened premium spring steel, it delivers stable and accurate performance for CNC milling, drilling, and general machining applications using ER25 collet systems.
Specifications:
- Brand: Acrow
- Part No.: ER25109
- Type: ER25 Spring Collet
- Standard: DIN6499
- Clamping Range: Ø10 – Ø9 mm
- ØD1: 26.0 mm
- L (Length): 35.0 mm
- Material: High-grade hardened spring steel
- Run-out Accuracy: ≤ 0.015 mm
- Application: Ideal for clamping Ø10–9 mm end mills, drills, and precision tools in ER25 collet chucks.
