Acrow BT50-SM27-045 – Shell Mill Holder (Ø27 mm Bore, BT50 Taper)
$147.63
Acrow BT50-SM27-045 – Shell Mill Holder (Ø27 mm Bore, BT50 Taper)

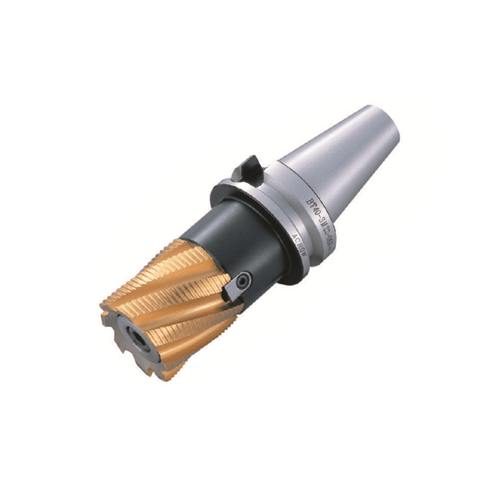

The Acrow BT50-SM27-045 is a compact, high-rigidity Shell Mill Holder designed for precision clamping of face mills, shell end mills, and similar cutters with a 27 mm bore. Built from hardened alloy steel and precision-ground to ensure superior concentricity, it delivers outstanding balance and minimal runout. The short 45 mm body provides a stable setup ideal for heavy-duty and high-speed milling on BT50 spindle machining centers.
Specifications:
- Brand: Acrow
- Type: Shell Mill Holder
- Model: BT50-SM27-045
- Figure No.: 1
- ØD (Arbor Diameter): 27 mm
- ØD1 (Flange Diameter): 58 mm
- ØD2 (Pilot Diameter): —
- L (Overall Length): 45 mm
- L1 (Gauge Length): 20 mm
- G (Drawbar Thread): M12 × P1.75
- W (Key Width): 12 mm
- Material: Hardened Alloy Steel
- Surface Finish: Precision Ground
- Run-out Accuracy: ≤ 0.005 mm
- Application: Ideal for rigid, high-accuracy milling using 27 mm bore shell end mills and face mills on BT50 spindle machining centers.
