Acrow BSD24 – BSD Fine Boring Head (Ø25–33 mm Range)

Acrow BSD24 – BSD Fine Boring Head (Ø25–33 mm Range)

$1,700.12

Acrow BSD24 – BSD Fine Boring Head (Ø25–33 mm Range)

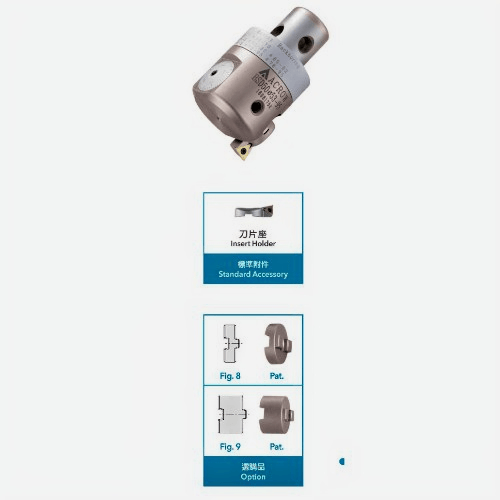

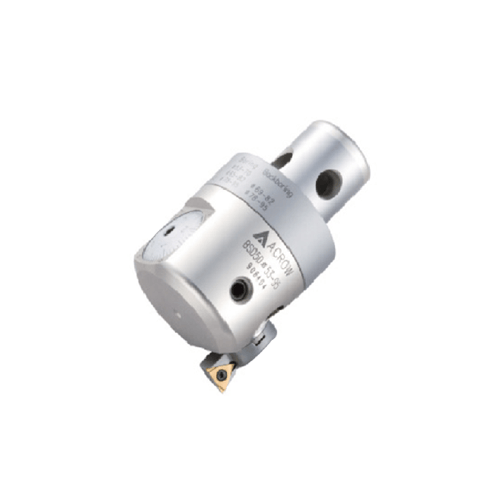

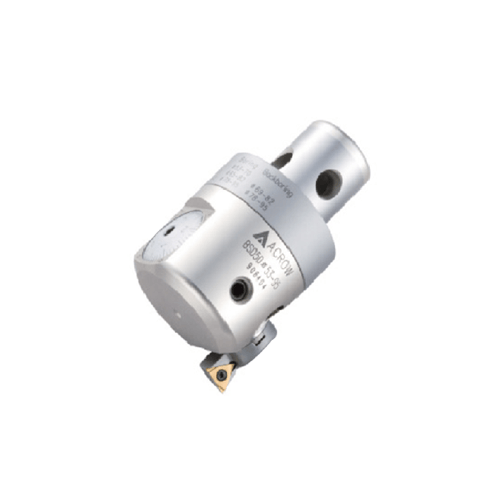

The Acrow BSD24 is a precision  BSD Fine Boring Head for medium-diameter boring operations between Ø25–33 mm. Built from high-grade hardened alloy steel, it enhances the boring range and reach of compatible boring heads while maintaining excellent rigidity and alignment. The precision-ground construction guarantees consistent accuracy and surface finish during extended boring operations.

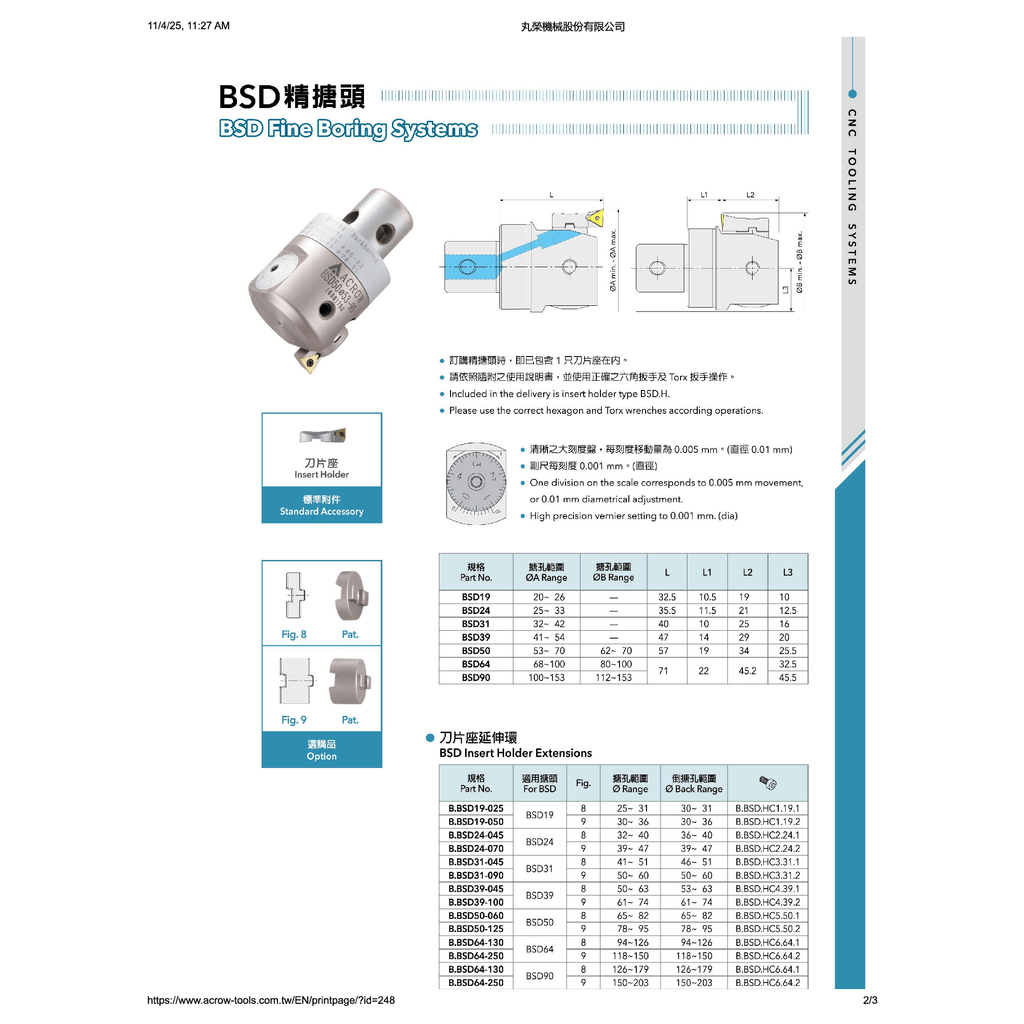

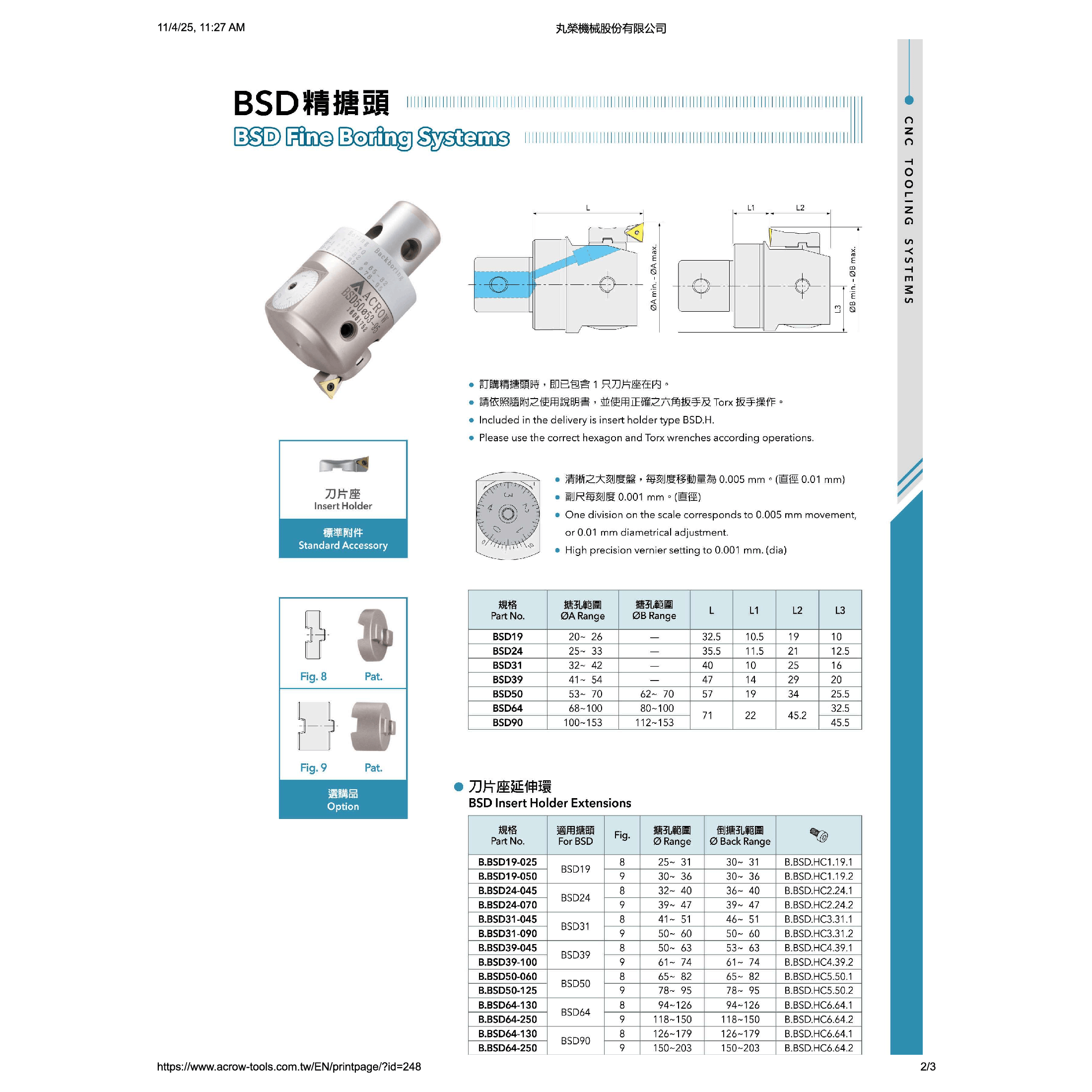

Specifications:

  • Brand: Acrow
  • Type: BSD Fine Boring Head
  • Model: BSD24
  • Boring Diameter Range (ØA): 25–33 mm
  • Boring Diameter Range (ØB): —

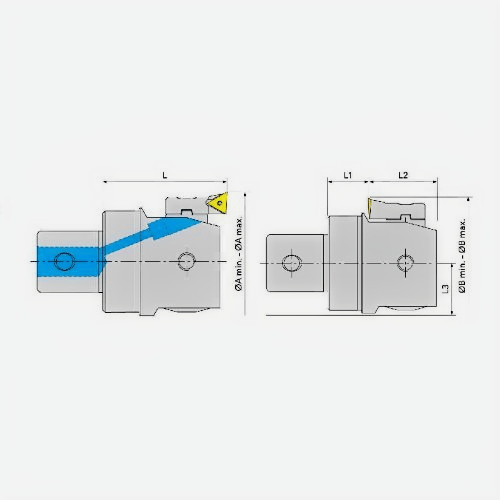

  • Overall Length (L): 35.5 mm
  • L1: 11.5 mm
  • L2: 21 mm
  • L3: 12.5 mm
  • Material: Hardened Alloy Steel
  • Surface Finish: Precision Ground
  • Run-out Accuracy: ≤ 0.005 mm
  • Application: Extends boring head capacity for Ø25–33 mm range applications requiring precision and rigidity.
